File Detail parts/60189p01.dat

Download Download zip file View patterns/composites/shortcuts

Unofficial File parts/60189p01.dat

Part Attributes: Base Part: 60189.dat

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

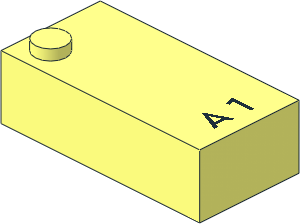

Brick Braille 2 x 4 with 1 Stud (DOTS-1) with "A 1" Pattern

File Header:

0 Brick Braille 2 x 4 with 1 Stud (DOTS-1) with "A 1" Pattern
0 Name: 60189p01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS ⠁ Unicode U+2801 (10241), Bricklink 60189pb01
0 !KEYWORDS Rebrickable 60189pr0001, Set 4000503, set 40722, set 40723
0 !KEYWORDS set 40724

0 !HISTORY 2024-08-18 [MagFors] Changed orientation, added keywords
0 !HISTORY 2024-10-27 [OrionP] Official Update 2024-09
0 !HISTORY 2025-08-26 [Cheenzo] Updated rotation matrix of 3001s02

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3001s02.dat
1 16 -30 0 -10 1 0 0 0 1 0 0 0 1 stud.dat

0 // Pattern
0 // Character
3 0 34.5 0 -8.585 34.5 0 -7.078 33.034 0 -6.452
4 0 28.181 0 -4.465 25.7 0 -4.705 34.5 0 -8.585 31.82 0 -5.945
4 0 31.82 0 -2.999 31.82 0 -5.945 33.034 0 -6.452 33.034 0 -2.492
3 0 31.82 0 -5.945 34.5 0 -8.585 33.034 0 -6.452
3 0 33.034 0 -2.492 34.5 0 -1.866 34.5 0 -.346
3 0 33.034 0 -2.492 34.5 0 -.346 31.82 0 -2.999
4 0 34.5 0 -.346 25.7 0 -4.226 28.181 0 -4.465 31.82 0 -2.999
3 0 28.181 0 -4.465 25.7 0 -4.226 25.7 0 -4.705
4 0 25.7 0 7.052 26.701 0 4 27.941 0 4.346 27.368 0 6.133
4 0 34.5 0 6.133 34.5 0 7.546 25.7 0 7.546 27.368 0 6.133
3 0 25.7 0 7.546 25.7 0 7.052 27.368 0 6.133
0 // Background
4 16 34.5 0 -7.078 34.5 0 -1.866 33.034 0 -2.492 33.034 0 -6.452
3 16 31.82 0 -2.999 28.181 0 -4.465 31.82 0 -5.945
4 16 27.368 0 6.133 27.941 0 4.346 34.5 0 -.346 34.5 0 6.133
4 16 34.5 0 -.346 27.941 0 4.346 26.701 0 4 25.7 0 -4.226
4 16 -40 0 20 25.7 0 -4.226 26.701 0 4 25.7 0 7.052
4 16 25.7 0 -4.705 -40 0 -20 40 0 -20 34.5 0 -8.585
3 16 40 0 -20 34.5 0 -7.078 34.5 0 -8.585
3 16 40 0 -20 34.5 0 -1.866 34.5 0 -7.078
4 16 -40 0 20 -40 0 -20 25.7 0 -4.705 25.7 0 -4.226
3 16 40 0 -20 34.5 0 -.346 34.5 0 -1.866
3 16 34.5 0 6.133 40 0 20 34.5 0 7.546
4 16 34.5 0 6.133 34.5 0 -.346 40 0 -20 40 0 20
3 16 -40 0 20 25.7 0 7.052 25.7 0 7.546
4 16 34.5 0 7.546 40 0 20 -40 0 20 25.7 0 7.546

Status:

Needs More Votes (F)

Current Votes:

None

Official parents and subparts

Part Events:

Archived Part Events:

None

Vincent Messenet [Cheenzo]

initially submitted the part.

2025-08-26 19:17:32

Chris Böhnke [KnightOfTarenta]
