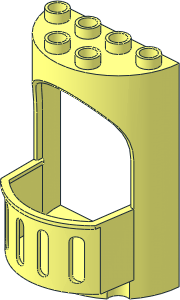

Duplo Wall 4 x 3 x 5 Curved Turret with Balcony

File Header:

0 Duplo Wall  4 x  3 x  5 Curved Turret with Balcony
0 Name: 98236.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW
