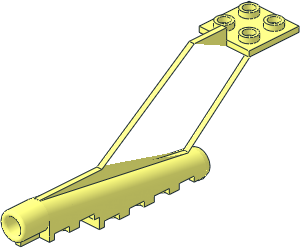

~Tail Plane with Integral Jet Engine without Patternable Surfaces (Needs Work)

File Header:

0 ~Tail Plane with Integral Jet Engine without Patternable Surfaces (Needs Work)
0 Name: s\u405s01.dat
0 Author: Takeshi Takahashi [RainbowDolphin]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // Needs work: Underside structure

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u405s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\u405s02.dat
1 16 0 -76 80 -1 0 0 0 1 0 0 0 -1 stug2-2x2.dat
1 16 0 -22 -108 8 0 0 0 0 8 0 -8 0 t04i2500.dat
1 16 0 -22 -108 0 0 -8 8 0 0 0 -8 0 t04i2500.dat
1 16 0 -22 -108 -8 0 0 0 0 -8 0 -8 0 t04i2500.dat
1 16 0 -22 -108 0 0 8 -8 0 0 0 -8 0 t04i2500.dat
1 16 0 -22 -108 8 0 0 0 0 8 0 -8 0 t04o2500.dat
1 16 0 -22 -108 0 0 -8 8 0 0 0 -8 0 t04o2500.dat
1 16 0 -22 -108 -8 0 0 0 0 -8 0 -8 0 t04o2500.dat
1 16 0 -22 -108 0 0 8 -8 0 0 0 -8 0 t04o2500.dat
1 16 0 -22 -108 10 0 0 0 0 10 0 18 0 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 -22 -108 6 0 0 0 0 6 0 18 0 4-4cyli.dat
1 16 0 -22 -90 6 0 0 0 0 6 0 1 0 4-4disc.dat
1 16 0 -22 -90 6 0 0 0 0 6 0 1 0 4-4edge.dat
1 16 0 -22 -90 10 0 0 0 0 10 0 1 0 2-4ndis.dat
1 16 0 -22 -90 10 0 0 0 0 10 0 1 0 2-4edge.dat
1 16 0 -22 -90 10 0 0 0 18 -10 0 126 0 2-4cyli.dat
0 BFC INVERTNEXT
1 16 0 -16 -46 6 0 0 0 12 -6 0 82 0 2-4cyli.dat
0 BFC INVERTNEXT
1 16 0 -21 -86 6 0 0 0 5 -6 0 36 0 2-4cyli.dat
1 16 0 -4 36 1.25 0 0 0 0 1.25 0 4 0 4-4con7.dat
1 16 0 -4 40 8.75 0 0 0 0 8.75 0 -1 0 4-4disc.dat
1 16 0 -4 40 8.75 0 0 0 0 8.75 0 -1 0 4-4edge.dat
1 16 0 -4 36 10 0 0 0 0 10 0 1 0 2-4chrd.dat
1 16 0 -4 36 0 0 10 10 0 0 0 1 0 1-8edge.dat
1 16 0 -4 36 0 0 -10 10 0 0 0 1 0 1-8edge.dat
1 16 0 -4 36 6 0 0 0 0 -6 0 1 0 2-4chrd.dat
1 16 0 -4 36 6 0 0 0 0 -6 0 1 0 2-4edge.dat
1 16 0 -16 -46 6 0 0 0 0 -6 0 -1 0 2-4chrd.dat
1 16 0 -16 -46 6 0 0 0 0 -6 0 -1 0 2-4edge.dat
1 16 0 -16 -50 6 0 0 0 0 -6 0 1 0 2-4chrd.dat
1 16 0 -16 -50 6 0 0 0 0 -6 0 1 0 2-4edge.dat
1 16 0 -21 -86 6 0 0 0 0 -6 0 -1 0 2-4chrd.dat
1 16 0 -21 -86 6 0 0 0 0 -6 0 -1 0 2-4edge.dat
1 16 0 -24 -70 0 0 1 0 -4 0 -1 0 0 stud4.dat
1 16 0 -17 -30 0 0 1 0 -4.25 0 -1 0 0 stud4.dat
1 16 0 -15 -10 0 0 1 0 -3.75 0 -1 0 0 stud4.dat
1 16 0 -12 10 0 0 1 0 -3 0 -1 0 0 stud4.dat
4 16 10 0 -50 -10 0 -50 -10 0 -46 10 0 -46
3 16 0 -14.94316 29.39788 -2 -72 96 2 -72 96
4 16 2 -8 -90 -2 -8 -90 -10 -8 -86 10 -8 -86
4 16 20 -72 100 2 -72 96 -2 -72 96 -20 -72 100
4 16 -2 -84 60 2 -84 60 2 -76 60 -2 -76 60
4 16 -2 -84 34 2 -84 34 2 -84 60 -2 -84 60
4 16 -2 -84 34 -2 -32 -40 2 -32 -40 2 -84 34
4 16 -2 -72 60 -2 -76 60 -20 -76 60 -20 -72 60
4 16 -6 -8 -50 -10 0 -50 10 0 -50 6 -8 -50
4 16 -2 -8 -90 2 -8 -90 2 -8 -105 -2 -8 -105
4 16 6 -21 -86 6 -12 -86 -6 -12 -86 -6 -21 -86
4 16 -6 -12 -86 6 -12 -86 10 -8 -86 -10 -8 -86
4 16 -20 -72 100 -20 -76 100 20 -76 100 20 -72 100
4 16 -20 -76 100 -20 -72 100 -20 -72 60 -20 -76 60
3 16 0 -32 -90 2 -32 -40 -2 -32 -40
4 16 20 -76 100 -20 -76 100 -2 -76 60 2 -76 60
3 16 0 -12 -105 -2 -8 -105 2 -8 -105
4 16 -10 0 -46 -6 -4 -46 6 -4 -46 10 0 -46
4 16 6 -16 -46 6 -4 -46 -6 -4 -46 -6 -16 -46
4 16 -6 -8 -50 6 -8 -50 6 -16 -50 -6 -16 -50

2 24 -2 -8 -105 2 -8 -105
2 24 -2 -72 60 -20 -72 60
5 24 -2 -72 96 2 -72 96 0 -14.94316 29.39788 -20 -72 100
5 24 2 -32 -40 -2 -32 -40 0 -32 -90 2 -84 34
2 24 -20 -72 100 -20 -76 100
2 24 2 -76 60 -2 -76 60
2 24 -20 -72 60 -20 -72 100
2 24 -10 0 -46 10 0 -46
2 24 -20 -76 100 20 -76 100
2 24 -20 -72 100 20 -72 100
2 24 -2 -84 60 2 -84 60
2 24 -10 -8 -86 10 -8 -86
2 24 10 0 -50 -10 0 -50
5 24 -2 -84 34 2 -84 34 -2 -32 -40 2 -84 60
2 24 -2 -32 -40 2 -32 -40
2 24 -2 -84 34 2 -84 34
2 24 2 -72 96 -2 -72 96

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/u405s02.dat (Needs More Votes)
No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Takeshi Takahashi [RainbowDolphin]

initially submitted the part.

2025-08-29 15:22:06

Takeshi Takahashi [RainbowDolphin]

submitted a new version of the part.

2025-08-29 15:56:49

Reorganized as suggested

Rene Rechthaler [Blechtaler]

made the following comment.

2025-08-29 16:03:02

for the bottom studs: maybe use 1-8stud4 and inverted 1-8cylo (in the s02)?
