Unofficial File parts/s/7547s02.dat
File Header:

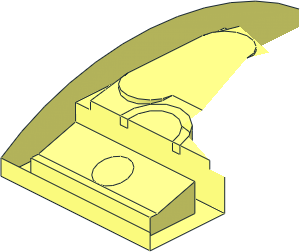

0 ~Slope Brick Curved 4 x 2 Double without Patternable Surfaces - Half
0 Name: s\7547s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // Lower End
4 16 -16 0 -24 -20 0 -20 20 0 -20 16 0 -24
4 16 16 0 -36 20 0 -40 -20 0 -40 -16 0 -36
4 16 16 0 -24 20 0 -20 20 0 -40 16 0 -36
4 16 -16 0 -36 -20 0 -40 -20 0 -20 -16 0 -24
2 24 20 0 -20 20 0 -40
2 24 -20 0 -40 -20 0 -20
1 16 0 0 -30 16 0 0 0 -1 0 0 0 -6 recte3.dat
0 BFC INVERTNEXT
1 16 0 -2 -35 -16 0 0 0 0 -2 0 -1 0 box2-7.dat
0 BFC INVERTNEXT
1 16 0 -2 -29 16 0 0 0 -1.5 -3.5 0 5 0 box2-5.dat
3 16 16 -4 -34 16 -7 -24 16 0 -24
3 16 -16 0 -24 -16 -7 -24 -16 -4 -34
4 16 16 0 -36 16 -4 -36 16 -4 -34 16 0 -24
4 16 -16 0 -24 -16 -4 -34 -16 -4 -36 -16 0 -36
1 16 0 -4 -30 0 0 1 0 -1 0 1 0 0 stud3a.dat
1 16 0 -4 -30 0 0 4 0 -1.2 0 -4 0 0 4-4cyls.dat
1 16 0 -5.2 -30 0 0 4 1.2 1 0 -4 0 0 4-4edge.dat
1 16 0 -2 -40 20 0 0 0 0 -2 0 1 0 rect.dat
3 16 16 -8 -20 20 -8 -20 20 0 -20
4 16 -16 -8 -20 16 -8 -20 20 0 -20 -20 0 -20
3 16 -20 0 -20 -20 -8 -20 -16 -8 -20
4 16 -20 0 -40 -20 -4 -40 -20 -8 -20 -20 0 -20
1 16 0 -9 -20 16 0 0 0 0 -1 0 -1 0 rect3.dat
1 16 0 -4 -20 20 0 0 0 0 4 0 -1 0 recte3.dat
0 // Centre
0 BFC INVERTNEXT
1 16 -10 -12 -10 0 0 -6 0 1.2 0 6 0 0 1-4cyls2.dat
0 BFC INVERTNEXT
1 16 -10 -12 -10 0 0 6 0 1.2 0 6 0 0 1-4cyls2.dat
1 16 -10 -12 -10 -6 0 0 0 -1 1.2 0 0 -6 2-4ndis.dat
1 16 -10 -12 -10 -6 0 0 0 -1 1.2 0 0 -6 2-4edge.dat
1 16 -10 -12 -10 -6 0 0 0 -1 0 0 0 -6 2-4chrd.dat
1 16 -10 -12 -10 -6 0 0 0 -1 0 0 0 -6 2-4edge.dat
2 24 -16 -12 -10 -16 -12 10
4 16 -16 -12 10 -4 -12 10 -4 -12 -10 -16 -12 -10
0 BFC INVERTNEXT
1 16 -10 -12 10 0 0 6 0 1.2 0 -6 0 0 1-4cyls2.dat
0 BFC INVERTNEXT
1 16 -10 -12 10 0 0 -6 0 1.2 0 -6 0 0 1-4cyls2.dat
1 16 -10 -12 10 6 0 0 0 -1 1.2 0 0 6 2-4ndis.dat
1 16 -10 -12 10 6 0 0 0 -1 1.2 0 0 6 2-4edge.dat
1 16 -10 -12 10 6 0 0 0 -1 0 0 0 6 2-4edge.dat
1 16 -10 -12 10 6 0 0 0 -1 0 0 0 6 2-4chrd.dat
3 16 -4 -10.8 -16 -16 -10 -20 -10 -10.8 -16
3 16 -10 -10.8 -16 -16 -10 -20 -16 -10.8 -16
4 16 -16 -10 -20 -4 -10.8 -16 4 -10.8 -16 16 -10 -20
2 24 -16 -10 -20 -16 -10.8 -16
2 24 -16 -12 -10 -16 -10.8 -16
2 24 -16 -10.8 16 -16 -10 20
2 24 -16 -12 10 -16 -10.8 16
3 16 -10 -10.8 16 -16 -10.8 16 -16 -10 20
3 16 -10 -10.8 16 -16 -10 20 -4 -10.8 16
4 16 4 -10.8 -16 -4 -10.8 -16 -4 -12 -10 4 -12 -10
3 16 4 -12 -10 -4 -12 -10 -4 -12 10
2 24 -4 -12 -10 4 -12 -10
4 16 -16 -10 20 -16 -10 -20 -16 -8 -20 -16 -8 20
4 16 -16 -10.8 16 -16 -10.8 -16 -16 -10 -20 -16 -10 20
4 16 -16 -10.8 16 -16 -12 10 -16 -12 -10 -16 -10.8 -16
1 16 -18 -8 0 0 0 -2 0 -1 0 -20 0 0 rect.dat
1 16 0 -8 -20 -2 0 0 0 -1 0 0 0 2 2-4ring3.dat
1 16 0 -8 -20 -6 0 0 0 -4 0 0 0 6 2-4edge.dat
1 16 0 -8 -20 -8 0 0 0 -4 0 0 0 8 2-4edge.dat
0 BFC INVERTNEXT
1 16 0 -8 -20 -6 0 0 0 -2 0 0 0 6 2-4cyli.dat
0 BFC INVERTNEXT
1 16 0 -10 -20 0 0 -6 0 -1.2 0 -6 0 0 1-4cyls2.dat
0 BFC INVERTNEXT
1 16 0 -10 -20 0 0 6 0 -1.2 0 -6 0 0 1-4cyls2.dat
1 16 0 -10 -20 -6 0 0 0 -4 -1.2 0 0 6 2-4edge.dat
1 16 0 -8 -20 -8 0 0 0 -2 0 0 0 8 2-4cyli.dat
1 16 0 -10 -20 0 0 -8 0 -1.6 0 -8 0 0 1-4cyls2.dat
1 16 0 -10 -20 0 0 8 0 -1.6 0 -8 0 0 1-4cyls2.dat
1 16 0 -10 -20 -8 0 0 0 -4 -1.6 0 0 8 2-4edge.dat
1 16 -7 -9 -20 1 0 0 0 0 1 0 -1 0 rect3.dat
1 16 7 -9 -20 1 0 0 0 0 1 0 -1 0 rect3.dat
0 // sides
1 16 -20 24.972 0 0 1 0 -28.9719 0 -28.9719 40 0 -40 48\1-4edge.dat
1 16 -20 24.972 0 0 1 0 -28.9719 0 -28.9719 40 0 -40 48\1-8chrd.dat
1 16 -20 24.972 0 0 1 0 -28.9719 0 -28.9719 -40 0 40 48\1-8chrd.dat
3 16 -20 -4 -40 -20 -16 0 -20 -8 -20
3 16 -20 -16 0 -20 -8 20 -20 -8 -20
3 16 -20 -8 20 -20 -16 0 -20 -4 40
4 16 -20 0 20 -20 -8 20 -20 -4 40 -20 0 40
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
2025-08-29 20:37:00
2025-08-29 22:46:05
2025-08-29 23:40:54
The curve is simply taken from the 1 wide part
2025-08-29 23:49:56
would the curvature from 15068 or 11477 also fit?
2025-09-03 23:29:03
May you be able to make use of the 2-4stud4a.dat primitive?
