Unofficial File parts/s/4657s02.dat
File Header:

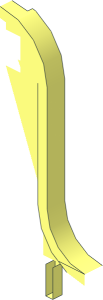

0 ~Duplo Boat Helm / Ship's Wheel Support - Quarter
0 Name: s\4657s02.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // bottom
1 16 20 -12 -14 1.5 0 0 0 11 0 0 0 2 box4-1.dat
0 // top
1 16 0 -74 -16.9 4 0 0 0 0 -4 0 1 0 3-16ring4.dat
1 16 0 -74 -16.9 0 0 16 -16 0 0 0 1 0 1-16tang.dat
1 16 0 -74 -14.5 16 0 0 0 0 -16 0 1 0 1-8chrd.dat
1 16 0 -74 -14.5 0 0 16 -16 0 0 0 1 0 1-8chrd.dat
0 BFC INVERTNEXT
1 16 36 -32 -16.9 -16 0 0 0 0 16 0 7.5 0 1-4cylo.dat
1 16 36 -32 -16.9 -4 0 0 0 0 4 0 1 0 1-4ring4.dat
1 16 36 -32 -9.4 -16 0 0 0 0 16 0 -1 0 1-4ndis.dat
1 16 36 -32 -16.9 -20 0 0 0 0 20 0 2.4 0 3-16cylo.dat
1 16 36 -32 -14.5 -20 0 0 0 0 20 0 1 0 3-16tndis.dat
1 16 18 -53 -15.7 0 -2 0 21 0 0 0 0 -1.2 box2-9p.dat
1 16 0 -74 -16.9 20 0 0 0 0 -20 0 7.5 0 3-16cylo.dat
1 16 0 -74 -9.4 20 0 0 0 0 -20 0 -1 0 3-16chrd.dat
4 16 20 -74 -9.4 20 -32 -9.4 6.25 -72.6 -9.4 6.25 -78.85 -9.4
3 16 6.25 -72.6 -9.4 20 -32 -9.4 0 -72.6 -9.4
4 16 16 -74 -14.5 6.25 -78.85 -14.5 6.25 -72.6 -14.5 16 -32 -14.5
3 16 16 -32 -14.5 6.25 -72.6 -14.5 0 -72.6 -14.5
4 16 6.25 -78.85 -14.5 16 -74 -14.5 11.3136 -85.3136 -14.5 6.25 -85.1 -14.5
4 16 0 -90 -14.5 0 -85.1 -14.5 6.25 -85.1 -14.5 11.3136 -85.3136 -14.5
4 16 20 -32 -16.9 20 -32 -9.4 20 -74 -9.4 20 -74 -16.9
4 16 20 -74 -9.4 6.25 -78.85 -9.4 6.25 -85.1 -9.4 7.654 -92.478 -9.4
3 16 6.25 -92.7572 -11.5 6.25 -92.7572 -9.4 6.25 -85.1 -9.4
4 16 7.654 -92.478 -16.9 6.25 -92.7572 -11.5 0 -94 -11.8408 0 -94 -16.9
4 16 6.25 -92.7572 -11.5 7.654 -92.478 -16.9 7.654 -92.478 -9.4 6.25 -92.7572 -9.4
3 16 6.25 -85.1 -9.4 6.25 -92.7572 -9.4 7.654 -92.478 -9.4
3 16 6.1232 -88.7824 -16.9 7.654 -92.478 -16.9 3.1824 -90 -16.9
4 16 7.654 -92.478 -16.9 0 -94 -16.9 0 -90 -16.9 3.1824 -90 -16.9
4 16 6.25 -85.1 -9.4 0 -85.1 -9.4 0 -94 -11.8408 6.25 -92.7572 -11.5
2 24 36 -16 -16.9 24.6381 -16 -16.9
2 24 24.6381 -16 -14.5 24.6381 -16 -16.9
2 24 36 -16 -9.4 20 -16 -9.4
2 24 20 -32 -9.4 20 -74 -9.4
2 24 6.25 -92.7572 -9.4 6.25 -85.1 -9.4
2 24 6.25 -85.1 -9.4 0 -85.1 -9.4
2 24 6.25 -92.7572 -9.4 6.25 -92.7572 -11.5
2 24 6.25 -85.1 -9.4 6.25 -92.7572 -11.5
2 24 7.654 -92.478 -9.4 6.25 -92.7572 -9.4
2 24 0 -94 -11.8408 6.25 -92.7572 -11.5
2 24 7.654 -92.478 -16.9 0 -94 -16.9
5 24 7.654 -92.478 -16.9 7.654 -92.478 -9.4 14.142 -88.142 -16.9 0 -94 -16.9
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
