Unofficial File parts/u9357.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

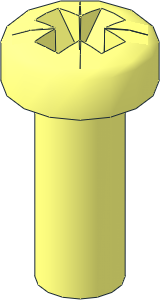

0 ~Screw 10 x 4 Dome Cruciform
0 Name: u9357.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY ScrewShow file code:
0 // Nomenclature: Screw length_(LDu) x thread_diameter_(LDu) {head type} {slot type}
1 16 0 0 0 .5 0 0 0 .5 0 0 0 .5 s\u9267s01.dat
1 16 0 0 0 0 0 .5 0 .5 0 -.5 0 0 s\u9267s01.dat
1 16 0 0 0 -.5 0 0 0 .5 0 0 0 -.5 s\u9267s01.dat
1 16 0 0 0 0 0 -.5 0 .5 0 .5 0 0 s\u9267s01.dat
1 16 0 0 0 3.5 0 0 0 -2 0 0 0 3.5 4-4cyli.dat
1 16 0 0 0 3.5 0 0 0 1 0 0 0 3.5 4-4edge.dat
1 16 0 0 0 3.5 0 0 0 -1 0 0 0 3.5 4-4disc.dat
1 16 0 10 0 2 0 0 0 -10 0 0 0 2 4-4cylc.datStatus
Needs 2 More Votes (N)
Current Votes:
No recorded votesPart Dependencies
Official parents and subparts
Part Events
Philippe Hurbain [Philo]
initially submitted the part.
2025-09-01 08:38:11
