File Detail parts/s/u9176s01.dat

Unofficial File parts/s/u9176s01.dat

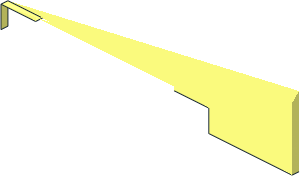

~Train Track 9V Crossing - Centre Metal Rail, Quarter

File Header:

0 ~Train Track  9V Crossing - Centre Metal Rail, Quarter
0 Name: s\u9176s01.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

4 16 38.5 -11.25 2.625 38.5 -11.25 3.125 38.5 -16 3.125 38.5 -15.5 2.625
1 16 35.5 -11.25 2.875 0 0 3 0 -1 0 .25 0 0 rect3.dat
0 BFC INVERTNEXT
1 16 31.25 -12 2.875 0 0 1.25 0 -.75 0 .25 0 0 box2-5.dat
0 BFC INVERTNEXT
1 16 18.75 -12 2.875 0 0 -1.25 0 -.75 0 .25 0 0 box2-5.dat

4 16 38.5 -11.25 3.125 32.5 -11.25 3.125 32.5 -12.75 3.125 38.5 -16 3.125
3 16 30 -12.75 3.125 38.5 -16 3.125 32.5 -12.75 3.125
3 16 38.5 -16 3.125 30 -12.75 3.125 20 -12.75 3.125
3 16 20 -12.75 3.125 17.5 -12.75 3.125 38.5 -16 3.125

3 16 20 -12.75 2.625 20 -13 2.625 17.5 -12.75 2.625
4 16 38.5 -11.25 2.625 38.5 -15.5 2.625 32.5 -12.75 2.625 32.5 -11.25 2.625
4 16 32.5 -12.75 2.625 38.5 -15.5 2.625 30 -13 2.625 30 -12.75 2.625
3 16 30 -13 2.625 38.5 -15.5 2.625 20 -13 2.625

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Max Martin Richter [MMR1988]

initially submitted the part.

2025-09-13 21:34:42
