File Detail parts/s/u9174s01.dat

Unofficial File parts/s/u9174s01.dat

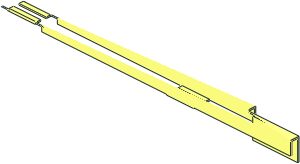

~Train Track 9V Crossing - Outer Metal Rail Common Area

File Header:

0 ~Train Track  9V Crossing - Outer Metal Rail Common Area
0 Name: s\u9174s01.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 158.25 0 0 1 0 0 0 1 0 0 0 1 s\u9611s03.dat

1 16 126 0 0 1 0 0 0 1 0 0 0 1 s\u9611s02.dat
1 16 67.5 -1.5 0 1 0 0 0 1 0 0 0 1 s\u9611s02.dat

3 16 147.5 -11.25 3.125 131 -11.25 3.125 147.5 -16 3.125
3 16 147.5 -16 3.125 131 -11.25 3.125 121 -11.25 3.125
4 16 121 -11.25 3.125 75 -11.25 3.125 75 -12.75 3.125 147.5 -16 3.125

4 16 131 -11.5 2.625 131 -11.25 2.625 147.5 -11.25 2.625 147.5 -15.5 2.625
4 16 75 -11.25 2.625 121 -11.25 2.625 121 -11.5 2.625 75 -12.75 2.625
4 16 121 -11.5 2.625 131 -11.5 2.625 147.5 -15.5 2.625 75 -12.75 2.625
4 16 72.5 -13 2.625 72.5 -12.75 2.625 75 -12.75 2.625 147.5 -15.5 2.625

3 16 131 -11.25 -3.125 166.5 -11.25 -3.125 166.5 -16 -3.125
3 16 131 -11.25 -3.125 166.5 -16 -3.125 121 -11.25 -3.125
4 16 75 -12.75 -3.125 75 -11.25 -3.125 121 -11.25 -3.125 166.5 -16 -3.125

4 16 166.5 -11.25 -2.625 131 -11.25 -2.625 131 -11.5 -2.625 166.5 -15.5 -2.625
4 16 121 -11.5 -2.625 121 -11.25 -2.625 75 -11.25 -2.625 75 -12.75 -2.625
4 16 166.5 -15.5 -2.625 131 -11.5 -2.625 121 -11.5 -2.625 75 -12.75 -2.625
4 16 75 -12.75 -2.625 72.5 -12.75 -2.625 72.5 -13 -2.625 166.5 -15.5 -2.625

1 16 61.25 -12.75 -2.875 0 0 1.25 0 -1 0 .25 0 0 rect3.dat

0 BFC INVERTNEXT
1 16 73.75 -12 2.875 0 0 1.25 0 -.75 0 .25 0 0 box2-5.dat
1 16 98 -11.25 2.875 0 0 23 0 -1 0 .25 0 0 rect3.dat

0 BFC INVERTNEXT
1 16 73.75 -12 -2.875 0 0 1.25 0 -.75 0 .25 0 0 box2-5.dat
1 16 98 -11.25 -2.875 0 0 23 0 -1 0 .25 0 0 rect3.dat

1 16 139.25 -11.25 2.875 0 0 8.25 0 -1 0 .25 0 0 rect.dat

1 16 148.75 -11.25 -2.875 0 0 17.75 0 -1 0 .25 0 0 rect.dat

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Max Martin Richter [MMR1988]

initially submitted the part.

2025-09-13 21:34:42
