Unofficial File parts/s/32087as03.dat
File Header:

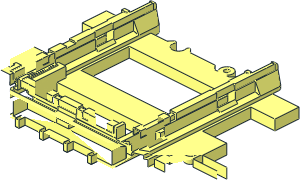

0 ~Train Track 9V Straight - Plastic Part, Common Asymetric Rail Areas
0 Name: s\32087as03.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 160 0 0 -1 0 1 0 1 0 0 s\32087as01.dat
1 16 -50.5 0 126 0 0 -1 0 1 0 1 0 0 s\2865as10.dat
1 16 50.5 0 126 0 0 1 0 1 0 -1 0 0 s\2865as10.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32087as04.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\32087as04.dat
2 24 57.25 3 57.25 57.25 8 57.25
2 24 55.5 0 55.5 55.5 2.5 55.5
2 24 50.5 -2 50.5 55.5 0 55.5
2 24 55.5 2.5 55.5 57.25 3 57.25
4 16 41 0 140 41 0 100 43 0 87.5 43 0 150
4 16 41 0 87.5 43 0 87.5 41 0 100 -41 0 100
3 16 -43 0 87.5 -41 0 87.5 -41 0 100
1 16 0 0 83.75 0 0 41 0 1 0 -3.75 0 0 rect1.dat
3 16 -41 0 100 -41 0 87.5 41 0 87.5
4 16 -43 0 87.5 -41 0 100 -41 0 140 -43 0 160
0 BFC INVERTNEXT
1 16 90 4 90 0 -10 0 4 0 0 0 0 -10 box2-5.dat
0 BFC INVERTNEXT
1 16 0 4 140 0 0 41 4 0 0 0 -40 0 box3u4a.dat
0 BFC INVERTNEXT
1 16 0 8 70 41 0 0 0 -8 0 0 0 10 box4o4a.dat
0 BFC INVERTNEXT
1 16 0 -1.25 59 41 0 0 0 1.25 0 0 0 -1 box2-5.dat
0 // left rail
1 16 44.625 1.25 147 0 0 .875 0 1.25 0 3 0 0 box2-5.dat
1 16 43.375 4 155 -.375 0 0 0 1 0 0 0 -5 rect3.dat
1 16 43 2 155 0 -1 0 0 0 -2 -5 0 0 rect2a.dat
4 16 45.5 0 144 45.5 0 150 50.5 0 150 57.25 0 144
4 16 45.5 0 144 57.25 0 144 57.25 8 144 45.5 2.5 144
4 16 43.75 2.5 144 45.5 2.5 144 57.25 8 144 43.75 8 144
4 16 43.75 4 150 43.75 2.5 150 43.75 2.5 144 43.75 8 144
4 16 43.75 4 150 43.75 8 144 43.75 8 160 43.75 4 160
4 16 43 -2.5 150 47.375 -3.75 150 50.5 0 150 45.5 0 150
3 16 43 0 150 43 -2.5 150 45.5 0 150
4 16 45.5 0 150 45.5 2.5 150 43.75 2.5 150 43 0 150
4 16 43 4 150 43 0 150 43.75 2.5 150 43.75 4 150
2 24 43.75 4 150 43.75 2.5 150
2 24 45.5 0 150 50.5 0 150
2 24 43.75 2.5 144 43.75 8 144
2 24 57.25 0 144 45.5 0 144
3 16 47.375 -3.75 133.5 47.375 -5.25 133.5 47.375 -3.75 150
4 16 47.375 -11 147.5 47.375 -3.75 150 47.375 -5.25 133.5 47.375 -11 133.5
1 16 47.625 -11 140.5 -.25 0 0 0 1 0 0 0 7 rect2a.dat
4 16 47.875 -11 147.5 47.875 -11 133.5 47.875 -11.5 133.5 47.875 -15.5 147.5
1 16 47.875 -13.25 140.5 0 1 0 -2.25 0 0 0 0 7 recte3.dat
3 16 47.875 -11.5 133.5 47.875 -15.5 133.5 47.875 -15.5 147.5
3 16 51 -15.5 150 50.5 -15.5 150 50.5 -15.5 148.5
4 16 51 -15.5 150 50.5 -15.5 148.5 50.5 -15.5 147.5 52.375 -15.5 133.5
4 16 49.5 -15.5 147.5 48.625 -15.5 133.5 52.375 -15.5 133.5 50.5 -15.5 147.5
4 16 47.875 -15.5 147.5 47.875 -15.5 133.5 48.625 -15.5 133.5 49.5 -15.5 147.5
4 16 51 -15.5 150 52.375 -15.5 133.5 53.125 -15.5 133.5 53.125 -15.5 160
2 24 53.125 -15.5 133.5 53.125 -15.5 160
4 16 47.375 -16 147.5 47.375 -16 150 47.375 -3.75 150 47.375 -11 147.5
2 24 47.375 -16 150 47.375 -3.75 150
4 16 47.375 -16 150 50.5 -16 150 50.5 -15.5 150 47.375 -3.75 150
1 16 49.5 -16 148.5 0 0 1 0 .5 0 -1 0 0 1-4cylo.dat
4 16 49.5 -15.5 147.5 49.5 -16 147.5 47.375 -16 147.5 47.875 -15.5 147.5
2 24 47.375 -16 147.5 49.5 -16 147.5
2 24 47.875 -15.5 147.5 49.5 -15.5 147.5
4 16 47.875 -11 147.5 47.875 -15.5 147.5 47.375 -16 147.5 47.375 -11 147.5
2 24 47.375 -16 147.5 47.375 -11 147.5
1 16 50.5 -15.75 149.25 0 -1 0 .25 0 0 0 0 .75 rect3.dat
1 16 49.5 -15.5 148.5 0 0 1 0 1 0 -1 0 0 1-4ndis.dat
1 16 49.5 -16 148.5 0 0 1 0 1 0 -1 0 0 1-4chrd.dat
4 16 47.375 -16 150 47.375 -16 147.5 49.5 -16 147.5 50.5 -16 148.5
2 24 47.375 -16 150 47.375 -16 147.5
2 24 50.5 -16 150 47.375 -16 150
3 16 50.5 -16 148.5 50.5 -16 150 47.375 -16 150
1 16 43 -1.25 118.75 0 1 0 1.25 0 0 0 0 -31.25 rect3.dat
4 16 53.125 -11 160 53.125 -15.5 160 53.125 -11.5 133.5 53.125 -11 133.5
3 16 53.125 -15.5 133.5 53.125 -11.5 133.5 53.125 -15.5 160
4 16 53.125 -11 133.5 53.625 -11 133.5 53.625 -11 150 53.125 -11 160
2 24 53.625 -11 150 53.625 -11 133.5
2 24 53.125 -11 133.5 53.125 -11 160
4 16 53.625 -11 150 53.625 -5.25 133.5 53.625 -3.75 133.5 53.625 -3.75 150
3 16 53.625 -11 133.5 53.625 -5.25 133.5 53.625 -11 150
1 16 47.625 -11 57.4375 -.25 0 0 0 1 0 0 0 -2.5625 rect3.dat
4 16 47.875 -11.5 118.5 47.875 -11 118.5 47.875 -11 85 47.875 -15.5 85
3 16 47.875 -15.5 85 47.875 -15.5 118.5 47.875 -11.5 118.5
4 16 47.875 -13 60 47.875 -11 60 47.875 -11 54.875 47.875 -15.5 54.875
3 16 47.875 -15.5 54.875 47.875 -15.5 60 47.875 -13 60
2 24 47.875 -11 85 47.875 -15.5 85
3 16 53.125 -15.5 118.5 52.375 -15.5 118.5 53.125 -15.5 85
4 16 47.875 -15.5 85 53.125 -15.5 85 52.375 -15.5 118.5 48.625 -15.5 118.5
3 16 48.625 -15.5 118.5 47.875 -15.5 118.5 47.875 -15.5 85
3 16 48.625 -15.5 60 47.875 -15.5 60 47.875 -15.5 54.875
3 16 53.125 -15.5 60 52.375 -15.5 60 53.125 -15.5 54.875
4 16 53.125 -15.5 54.875 52.375 -15.5 60 48.625 -15.5 60 47.875 -15.5 54.875
2 24 47.875 -15.5 54.875 47.875 -15.5 60
2 24 53.125 -15.5 54.875 53.125 -15.5 60
1 16 50.5 -15.5 101.75 -2.625 0 0 0 1 0 0 0 -16.75 recte3.dat
4 16 53.125 -11 85 53.125 -11 118.5 53.125 -11.5 118.5 53.125 -15.5 85
3 16 53.125 -15.5 118.5 53.125 -15.5 85 53.125 -11.5 118.5
4 16 53.125 -15.5 54.875 53.125 -11 54.875 53.125 -11 60 53.125 -13 60
3 16 53.125 -15.5 60 53.125 -15.5 54.875 53.125 -13 60
1 16 53.375 -11 57.4375 -.25 0 0 0 1 0 0 0 -2.5625 rect3.dat
4 16 53.625 -11 54.875 53.625 -16 54.875 53.625 -16 53.625 53.625 -3.75 53.625
4 16 53.625 -11 60 53.625 -11 54.875 53.625 -3.75 53.625 53.625 -5.25 60
3 16 53.625 -3.75 60 53.625 -5.25 60 53.625 -3.75 53.625
4 16 58 -2.5 150 53.625 -3.75 150 53.625 -3.75 133.5 55.625 -3.178571 133.5
4 16 55.625 -3.178571 60 53.625 -3.75 60 53.625 -3.75 53.625 58 -2.5 58
2 24 53.625 -3.75 53.625 53.625 -3.75 60
2 24 53.625 -3.75 53.625 58 -2.5 58
2 24 53.625 -3.75 150 53.625 -3.75 133.5
4 16 53.125 -11 54.875 53.125 -15.5 54.875 53.625 -16 54.875 53.625 -11 54.875
4 16 47.375 -11 54.875 47.375 -16 54.875 47.875 -15.5 54.875 47.875 -11 54.875
4 16 47.375 -16 54.875 53.625 -16 54.875 53.125 -15.5 54.875 47.875 -15.5 54.875
1 16 50.5 -13.5 54.875 -3.125 0 0 0 0 -2.5 0 -1 0 recte3.dat
1 16 50.5 -13.25 54.875 -2.625 0 0 0 0 -2.25 0 -1 0 recte3.dat
4 16 58 -2.5 150 58 -2.5 58 58 0 58 58 0 160
2 24 58 -2.5 150 58 -2.5 58
2 24 58 0 58 58 0 160
4 16 60 0 140 58 0 160 58 0 58 60 0 100
1 16 50.5 8 142.75 -6.75 0 0 0 -1 0 0 0 1.25 rect2p.dat
0 // right rail
4 16 -54.875 -3.392857 150 -54.875 -3.392857 147.5 -54.875 -16 147.5 -54.875 -16 150
4 16 -50.5 0 150 -58 0 150 -58 -2.5 150 -54.875 -3.392857 150
4 16 -54.875 -16 150 -50.5 -16 150 -50.5 -15.5 150 -54.875 -3.392857 150
3 16 -50.5 -15.5 150 -50.5 -8 150 -54.875 -3.392857 150
3 16 -54.875 -3.392857 150 -50.5 -8 150 -50.5 0 150
2 24 -50.5 -16 150 -54.875 -16 150
2 24 -54.875 -16 147.5 -54.875 -16 150
2 24 -54.875 -16 150 -54.875 -3.392857 150
2 24 -58 -2.5 150 -54.875 -3.392857 150
2 24 -54.875 -3.392857 147.5 -54.875 -3.392857 150
2 24 -54.875 -3.392857 147.5 -53.625 -3.75 147.5
2 24 -54.875 -16 147.5 -54.875 -3.392857 147.5
2 24 -51.5 -16 147.5 -54.875 -16 147.5
2 24 -53.125 -15.5 147.5 -51.5 -15.5 147.5
2 24 -53.125 -15.5 147.5 -53.125 -11 147.5
2 24 -53.625 -11 147.5 -53.625 -3.75 147.5
2 24 -53.625 -3.75 133.5 -53.625 -3.75 147.5
4 16 -51.5 -15.5 147.5 -51.5 -16 147.5 -54.875 -16 147.5 -53.125 -15.5 147.5
4 16 -53.125 -11 147.5 -53.125 -15.5 147.5 -54.875 -16 147.5 -53.625 -11 147.5
4 16 -53.625 -11 147.5 -54.875 -16 147.5 -54.875 -3.392857 147.5 -53.625 -3.75 147.5
3 16 -53.625 -3.75 133.5 -53.625 -5.25 133.5 -53.625 -3.75 147.5
4 16 -53.625 -11 147.5 -53.625 -3.75 147.5 -53.625 -5.25 133.5 -53.625 -11 133.5
1 16 -53.375 -11 140.5 -.25 0 0 0 1 0 0 0 7 rect3.dat
4 16 -53.125 -11 147.5 -53.125 -11 133.5 -53.125 -11.5 133.5 -53.125 -15.5 147.5
3 16 -53.125 -11.5 133.5 -53.125 -15.5 133.5 -53.125 -15.5 147.5
3 16 -50 -15.5 150 -50.5 -15.5 150 -50.5 -15.5 148.5
4 16 -50 -15.5 150 -50.5 -15.5 148.5 -50.5 -15.5 147.5 -48.625 -15.5 133.5
4 16 -51.5 -15.5 147.5 -52.375 -15.5 133.5 -48.625 -15.5 133.5 -50.5 -15.5 147.5
4 16 -53.125 -15.5 147.5 -53.125 -15.5 133.5 -52.375 -15.5 133.5 -51.5 -15.5 147.5
4 16 -50 -15.5 150 -48.625 -15.5 133.5 -47.875 -15.5 133.5 -47.875 -15.5 160
2 24 -53.125 -15.5 147.5 -53.125 -15.5 133.5
1 16 -51.5 -16 148.5 0 0 1 0 .5 0 -1 0 0 1-4cylo.dat
1 16 -50.5 -15.75 149.25 0 -1 0 .25 0 0 0 0 .75 rect3.dat
1 16 -51.5 -15.5 148.5 0 0 1 0 1 0 -1 0 0 1-4ndis.dat
1 16 -51.5 -16 148.5 0 0 1 0 1 0 -1 0 0 1-4chrd.dat
4 16 -54.875 -16 150 -54.875 -16 147.5 -51.5 -16 147.5 -50.5 -16 148.5
3 16 -50.5 -16 148.5 -50.5 -16 150 -54.875 -16 150
4 16 -43 -2.5 150 -43 -2.5 87.5 -43 0 87.5 -43 0 160
3 16 -43 -2.5 160 -43 -2.5 150 -43 0 160
2 24 -43 0 160 -43 0 87.5
2 24 -43 0 87.5 -43 -2.5 87.5
3 16 57.5 -3.392857 54.875 58 -2.5 58 53.625 -3.75 53.625
3 16 53.625 -3.75 53.625 57.5 -3.75 53.625 57.5 -3.392857 54.875
4 16 57.5 -3.392857 54.875 60 -3.392857 54.875 60 -3.178571 55.625 58 -2.5 58
4 16 -54.875 -3.392857 147.5 -54.875 -3.392857 150 -58 -2.5 150 -55.625 -3.178571 133.5
4 16 -53.625 -3.75 147.5 -54.875 -3.392857 147.5 -55.625 -3.178571 133.5 -53.625 -3.75 133.5
1 16 -58 -1.25 104 0 1 0 1.25 0 0 0 0 -46 rect3.dat
4 16 -60 0 140 -60 0 100 -58 0 58 -58 0 150
1 16 -50.5 8 142.75 0 0 -6.75 0 -1 0 -1.25 0 0 rect1.dat
2 24 -54.875 -3.392857 60 -55.625 -3.178571 60
3 16 -54.875 -3.392857 60 -54.875 -3.955359 60 -55.625 -3.178571 60
2 24 -54.875 -3.955359 60 -55.625 -3.178571 60
4 16 -55.625 -3.178571 75 -55.625 -3.178571 60 -54.875 -3.955359 60 -53.625 -5.25 75
3 16 -53.625 -5.25 75 -54.875 -3.955359 60 -53.625 -5.25 60
2 24 -53.625 -5.25 60 -54.875 -3.955359 60
4 16 -53.125 -13 60 -53.625 -5.25 60 -54.875 -3.955359 60 -54.875 -16 60
4 16 -53.625 -5.25 60 -53.125 -13 60 -47.875 -13 60 -47.875 -11 60
3 16 -52.375 -15.5 60 -53.125 -13 60 -54.875 -16 60
4 16 -54.875 -16 60 -50.5 -16 60 -50.5 -15.5 60 -52.375 -15.5 60
1 16 -47.625 -11 55.25 .25 0 0 0 1 0 0 0 -4.75 rect3.dat
4 16 -47.875 -15.5 50.5 -47.375 -16 50.5 -47.375 -11 50.5 -47.875 -11 50.5
4 16 -50.5 -16 50.5 -47.375 -16 50.5 -47.875 -15.5 50.5 -50.5 -15.5 50.5
1 16 -50.5 -15.75 55.25 0 -1 0 0 0 -.25 4.75 0 0 rect.dat
2 24 -47.375 -16 50.5 -47.375 -11 50.5
2 24 -50.5 -15.5 50.5 -47.875 -15.5 50.5
2 24 -47.875 -15.5 50.5 -47.875 -11 50.5
4 16 -47.875 -13 60 -47.875 -15.5 50.5 -47.875 -11 50.5 -47.875 -11 60
3 16 -47.875 -13 60 -47.875 -15.5 60 -47.875 -15.5 50.5
4 16 -47.875 -14.25 95 -47.875 -15.5 95 -47.875 -15.5 85 -47.875 -11 85
4 16 -47.875 -14.25 102.5 -47.875 -14.25 95 -47.875 -11 85 -47.875 -11 118.5
4 16 -47.875 -14.25 102.5 -47.875 -11 118.5 -47.875 -11.5 118.5 -47.875 -15.5 102.5
3 16 -47.875 -11.5 118.5 -47.875 -15.5 118.5 -47.875 -15.5 102.5
2 24 -47.875 -15.5 85 -47.875 -11 85
2 24 -47.875 -15.5 50.5 -47.875 -15.5 60
4 16 -47.875 -15.5 50.5 -47.875 -15.5 60 -48.625 -15.5 60 -50.5 -15.5 50.5
4 16 -50.5 -15.5 60 -50.5 -15.5 50.5 -48.625 -15.5 60 -48.625 -15.5 75
4 16 -50.5 -15.5 60 -48.625 -15.5 75 -52.375 -15.5 75 -52.375 -15.5 60
2 24 -50.5 -15.5 60 -52.375 -15.5 60
4 16 -47.875 -11.5 133.5 -47.875 -11 133.5 -47.875 -11 160 -47.875 -15.5 160
3 16 -47.875 -15.5 160 -47.875 -15.5 133.5 -47.875 -11.5 133.5
2 24 -47.875 -11 133.5 -47.875 -11 160
2 24 -47.875 -15.5 133.5 -47.875 -15.5 160
4 16 -47.375 -11 133.5 -47.375 -11 150 -47.875 -11 160 -47.875 -11 133.5
4 16 -47.375 -11 150 -47.375 -11 133.5 -47.375 -5.25 133.5 -47.375 -3.75 150
3 16 -47.375 -5.25 133.5 -47.375 -3.75 133.5 -47.375 -3.75 150
2 24 -47.375 -11 133.5 -47.375 -11 150
0 BFC INVERTNEXT
1 16 -50.5 -15.5 98.75 2.625 0 0 0 1.25 0 0 0 3.75 box3u4a.dat
4 16 -53.125 -15.5 85 -53.125 -15.5 95 -53.125 -14.25 95 -53.125 -11 85
4 16 -53.125 -11 85 -53.125 -14.25 95 -53.125 -14.25 102.5 -53.125 -11 118.5
4 16 -53.125 -11.5 118.5 -53.125 -11 118.5 -53.125 -14.25 102.5 -53.125 -15.5 102.5
3 16 -53.125 -15.5 118.5 -53.125 -11.5 118.5 -53.125 -15.5 102.5
1 16 -50.5 -15.5 90 2.625 0 0 0 1 0 0 0 5 rect.dat
4 16 -47.875 -15.5 102.5 -48.625 -15.5 118.5 -52.375 -15.5 118.5 -53.125 -15.5 102.5
1 16 -50.5 -15.5 110.5 -2.625 0 0 0 1 0 0 0 -8 recte3.dat
3 16 -47.875 -15.5 118.5 -48.625 -15.5 118.5 -47.875 -15.5 102.5
3 16 -52.375 -15.5 118.5 -53.125 -15.5 118.5 -53.125 -15.5 102.5
1 16 -53.625 -9.875 55.5625 0 1 0 6.125 0 0 0 0 1.9375 rect.dat
4 16 -54.875 -3.392857 57.5 -53.625 -3.75 57.5 -53.625 -16 57.5 -54.875 -16 57.5
4 16 -54.875 -3.955359 60 -54.875 -3.392857 60 -54.875 -3.392857 57.5 -54.875 -16 57.5
3 16 -54.875 -16 57.5 -54.875 -16 60 -54.875 -3.955359 60
2 24 -54.875 -16 60 -54.875 -16 57.5
2 24 -54.875 -16 60 -54.875 -3.955359 60
2 24 -54.875 -3.955359 60 -54.875 -3.392857 60
2 24 -54.875 -3.392857 60 -54.875 -3.392857 57.5
2 24 -54.875 -3.392857 57.5 -53.625 -3.75 57.5
2 24 -54.875 -16 57.5 -53.625 -16 57.5
2 24 -54.875 -16 57.5 -54.875 -3.392857 57.5
4 16 -50.5 -16 60 -54.875 -16 60 -54.875 -16 57.5 -53.625 -16 57.5
4 16 -50.5 -16 50.5 -50.5 -16 60 -53.625 -16 57.5 -53.625 -16 53.625
4 16 -54.875 -16 47.375 -50.5 -16 50.5 -53.625 -16 53.625 -54.875 -16 53.625
4 16 -47.375 -16 47.375 -47.375 -16 50.5 -50.5 -16 50.5 -54.875 -16 47.375
2 24 -50.5 -16 60 -54.875 -16 60
2 24 -50.5 -16 50.5 -47.375 -16 50.5
2 24 -47.375 -16 50.5 -47.375 -16 47.375
2 24 -47.375 -16 47.375 -54.875 -16 47.375
2 24 -54.875 -16 53.625 -53.625 -16 53.625
4 16 7.5 -8 44.875 -7.5 -8 44.875 -41 -8 41 41 -8 41
0 BFC INVERTNEXT
1 16 0 -9.5 46.125 7.5 0 0 0 1.5 0 0 0 1.25 box2-7.dat
1 16 0 -11 47.625 -7.5 0 0 0 1 0 0 0 -.25 rect3.dat
4 16 -17.5 -11 53.625 -7.5 -11 53.125 7.5 -11 53.125 17.5 -11 53.625
1 16 0 -8.125 53.625 0 0 17.5 -2.875 0 0 0 -1 0 rect1.dat
1 16 0 -4.5 53.625 0 0 17.5 .75 0 0 0 -1 0 rect1.dat
4 16 -17.5 -3.178571 55.625 -17.5 -3.75 53.625 17.5 -3.75 53.625 17.5 -3.178571 55.625
4 16 -17.5 -3.178571 55.625 17.5 -3.178571 55.625 41 -2.5 58 -41 -2.5 58
1 16 0 -11 50.5 7.5 0 0 0 -4.5 0 0 0 2.625 box3u2p.dat
0 BFC INVERTNEXT
1 16 0 -2 47.125 5 0 0 0 -3.5 0 0 0 3.375 box5.dat
4 16 -5 -2 43.75 5 -2 43.75 41 8 43.75 -41 8 43.75
2 24 -41 8 43.75 41 8 43.75
4 16 17.5 -.75 53.625 5 -2 50.5 -5 -2 50.5 -17.5 -.75 53.625
4 16 17.5 -.75 53.625 -17.5 -.75 53.625 -41 0 55.5 41 0 55.5
1 16 0 4 55.5 41 0 0 0 0 4 0 1 0 rect.dat
0 BFC INVERTNEXT
1 16 0 5.25 91.5 0 0 41 2.75 0 0 0 4.5 0 box3u2p.dat
0 BFC INVERTNEXT
1 16 0 5.25 88.5 0 0 41 2.75 0 0 0 -4.5 0 box3u2p.dat
4 16 36 2.5 91.5 -36 2.5 91.5 -41 2.5 96 41 2.5 96
4 16 36 2.5 91.5 36 2.5 88.5 -36 2.5 88.5 -36 2.5 91.5
4 16 -41 2.5 84 -36 2.5 88.5 36 2.5 88.5 41 2.5 84
1 16 0 2.5 90 1 0 0 0 -1.375 0 0 0 1 stug3-1x3.dat
1 16 86 5.25 86 0 -10 0 2.75 0 0 0 0 -10 box2-7.dat
0 BFC INVERTNEXT
1 16 64.25 5.25 64.25 0 -4.25 0 2.75 0 0 0 0 -4.25 box2-5.dat
3 16 60 2.5 60 60 2.5 68.5 68.5 2.5 60
4 16 60 2.5 68.5 64 2.5 68.5 68.5 2.5 64 68.5 2.5 60
4 16 71.5 2.5 64 68.5 2.5 64 64 2.5 68.5 64 2.5 71.5
3 16 64 2.5 71.5 76 2.5 76 71.5 2.5 64
4 16 8.5 2.5 36 -8.5 2.5 36 -8.5 2.5 41 8.5 2.5 41
1 16 0 5.25 41 0 0 8.5 2.75 0 0 0 1 0 rect.dat
4 16 43.75 8 41 41 8 41 41 8 43.75 43.75 8 43.75
4 16 41 8 60 41 8 55.5 -41 8 55.5 -41 8 60
4 16 41 8 80 -41 8 80 -41 8 84 41 8 84
4 16 41 8 100 41 8 96 -41 8 96 -41 8 100
4 16 41 8 43.75 8.5 8 41 -8.5 8 41 -41 8 43.75
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
2025-09-13 21:34:42
2025-09-13 21:45:50
"parts/s/32087s03.dat" to "parts/s/32087as03.dat"
Creative Commons Attribution License information
This part is copyright © Max Martin Richter
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
