Unofficial File parts/u9424.dat
Part Attributes:
File Header:

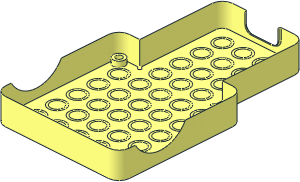

0 ~Electric Bluetooth Double Motor Body Bottom (Needs Work)
0 Name: u9424.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-08-22 {LEGO Instructions App} Original part shape
0 !HISTORY 2025-09-09 [Philo] File preparation for LDraw Parts Tracker
Show contents
0 // Needs Work: no internal skin
1 16 0 -5 60 0 0 -1 0 -1.25 0 1 0 0 stug4-3x3.dat
1 16 0 -5 20 -1 0 0 0 -1.25 0 0 0 -1 stug4-1x3.dat
1 16 0 -5 -40 0 0 -1 0 -1.25 0 1 0 0 stug4-5x5.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9424s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\u9424s01.dat
1 16 0 -8 98.3 10 0 0 0 1 0 0 0 .5 rect2p.dat
2 24 10 -7 100 -10 -7 100
4 16 -17 -7 100 17 -7 100 30 0 100 -30 0 100
1 16 0 -2.5 96 30 0 0 0 0 -2.5 0 1 0 rect2p.dat
1 16 0 0 98 0 0 30 0 -1 0 2 0 0 rect1.dat
4 16 -10 -7 100 -10 -8 98.8 10 -8 98.8 10 -7 100
4 16 -36 -5 18 -30 -5 96 30 -5 96 36 -5 18
4 16 -36 -5 18 36 -5 18 44.5 -5 15.5 -44.5 -5 15.5
4 16 -44.5 -5 15.5 44.5 -5 15.5 44.5 -5 -95.5 -44.5 -5 -95.5
4 16 50 -5 -96 -50 -5 -96 -50 -5 -95.5 50 -5 -95.5
2 24 50 -5 -96 -50 -5 -96
2 24 -50 0 -96 50 0 -96
2 24 50 0 -100 -50 0 -100
4 16 -50 0 -96 -50 -5 -96 50 -5 -96 50 0 -96
4 16 50 0 -96 50 0 -100 -50 0 -100 -50 0 -96
4 16 -50 -24 -100 -50 0 -100 50 0 -100 50 -24 -100
2 24 50 -24 -100 -50 -24 -100
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2025-09-15 13:23:12
resubmitted to update my uxxxx list since the first submit was not recorded.
Added missing history
