Unofficial File parts/u9475.dat
Part Attributes:
File Header:

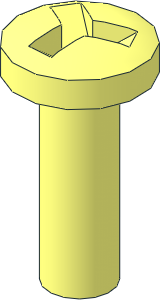

0 ~Screw 15 x 5 Dome Tamper-Proof Y Shape
0 Name: u9475.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // Nomenclature: Screw length_(LDu) x thread_diameter_(LDu) {head type} {slot type}
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9475s01.dat
1 16 0 0 0 -0.5 0 0.86603 0 1 0 -0.86603 0 -0.5 s\u9475s01.dat
1 16 0 0 0 -0.5 0 -0.86603 0 1 0 0.86603 0 -0.5 s\u9475s01.dat
1 16 0 15 0 2.5 0 0 0 -15 0 0 0 2.5 4-4cylc.dat
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2025-09-18 09:51:06
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
