File Detail parts/s/u9429s01.dat

Unofficial File parts/s/u9429s01.dat

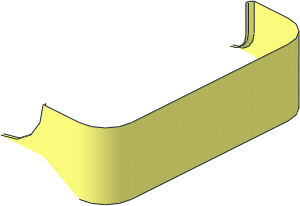

~Electric Bluetooth Color Sensor Case Bottom Half

File Header:

0 ~Electric Bluetooth Color Sensor Case Bottom Half
0 Name: s\u9429s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 30 0 30 0 0 10 0 -24 0 10 0 0 1-4cylo.dat
1 16 30 0 -30 0 0 10 0 -24 0 -10 0 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 30 0 30 0 0 6 0 -5 0 6 0 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 30 0 -30 0 0 6 0 -5 0 -6 0 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 30 -5 -30 0 0 5.5 0 -5 0 5.5 0 0 4-4cylo.dat
1 16 30 -10 -30 0 0 3 0 -1 0 3 0 0 4-4edge.dat
1 16 30 -10 -30 0 0 3 0 -1 0 3 0 0 4-4ring1.dat
1 16 30 0 -30 0 0 6 0 -1 0 -6 0 0 1-4ndis.dat
1 16 30 0 -30 0 0 10 0 -1 0 -10 0 0 1-8chrd.dat
1 16 30 0 -30 10 0 0 0 -1 0 0 0 -10 1-8chrd.dat
4 16 30 0 -40 30 0 -36 36 0 -36 37.071 0 -37.071
4 16 37.071 0 -37.071 36 0 -36 36 0 -30 40 0 -30
1 16 30 0 30 0 0 6 0 -1 0 6 0 0 1-4ndis.dat
1 16 30 0 30 0 0 10 0 -1 0 10 0 0 1-8chrd.dat
1 16 30 0 30 10 0 0 0 -1 0 0 0 10 1-8chrd.dat
4 16 36 0 36 30 0 36 30 0 40 37.071 0 37.071
4 16 36 0 30 36 0 36 37.071 0 37.071 40 0 30
1 16 36 -2.5 0 0 1 0 0 0 2.5 30 0 0 rect2p.dat
4 16 36 0 -30 36 0 30 40 0 30 40 0 -30
1 16 40 -12 0 0 -1 0 0 0 -12 30 0 0 rect2p.dat
1 16 30 -5 -30 0 0 .5 0 -1 0 -.5 0 0 1-4ring11.dat
1 16 30 -5 -30 0 0 -5.5 0 -1 0 -5.5 0 0 3-4ndis.dat
1 16 10 -14 40 0 0 7 7 0 0 0 1 0 1-4edge.dat
0 BFC INVERTNEXT
1 16 10 -14 40 0 0 1 1 0 0 0 -1.2 0 1-4con6.dat
0 BFC INVERTNEXT
1 16 10 -14 38.8 0 0 6 6 0 0 0 -1 0 1-4cylo.dat
1 16 10 -14 40 0 0 7 7 0 0 0 -1 0 1-4ndis.dat
2 24 16 -24 38.8 17 -24 40
2 24 17 -24 40 17 -14 40
1 16 16 -19 38.3 0 1 0 0 0 -5 -.5 0 0 rect3.dat
4 16 16 -14 38.8 16 -24 38.8 17 -24 40 17 -14 40
2 24 17 -24 40 30 -24 40
4 16 17 -7 40 17 -24 40 30 -24 40 30 0 40
4 16 35.5 -5 -24.5 24.5 -5 -24.5 30 -5 36 36 -5 30
0 BFC INVERTNEXT
1 16 0 -24 -40 0 0 16.17 16.17 0 0 0 1 0 1-4cylo.dat
1 16 0 -24 -40 0 0 16.17 16.17 0 0 0 1 0 1-4ndis.dat
2 24 16.17 -24 -40 30 -24 -40
4 16 30 -24 -40 16.17 -24 -40 16.17 -7.83 -40 30 0 -40
1 16 30 -5 30 0 0 6 0 -1 0 6 0 0 1-4chrd.dat
4 16 36 -5 -30 35.5 -5 -30 35.5 -5 -24.5 36 -5 30

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2025-09-18 14:07:05
