File Detail parts/s/4755s01.dat

Unofficial File parts/s/4755s01.dat

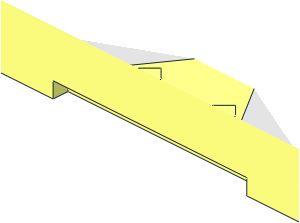

~Electric Plate 1 x 2 with Contacts - End

File Header:

0 ~Electric Plate  1 x  2 with Contacts - End
0 Name: s\4755s01.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // reinforcements similar to 15573.dat
1 16 5 4 -5.5 0 0 1.5 0 3.5 0 .5 0 0 box3u4p.dat
1 16 5 4 -3.5 -1.5 0 1.5 0 3.5 0 -1.5 0 -1.5 tri3a4.dat
1 16 -5 4 -5.5 0 0 1.5 0 3.5 0 .5 0 0 box3u4p.dat
1 16 -5 4 -3.5 -1.5 0 1.5 0 3.5 0 -1.5 0 -1.5 tri3a4.dat
2 24 -6.5 7.5 -6 -3.5 7.5 -6
2 24 3.5 7.5 -6 6.5 7.5 -6

0 // insulator
4 16 -4 4 0 4 4 0 8 4 -6 -8 4 -6
2 24 -4 4 0 -8 4 -6
2 24 4 4 0 8 4 -6

0 // conductors
3 494 -16 4 -6 -4 4 0 -8 4 -6
3 494 8 4 -6 4 4 0 16 4 -6

0 // end
1 16 0 6 -6 16 0 0 0 0 2 0 -1 0 rect2p.dat
0 BFC INVERTNEXT
1 16 0 8 -9 13 0 0 0 -2 0 0 0 1 box4-1.dat
4 16 -20 8 -10 -13 8 -10 -13 6 -10 -20 0 -10
4 16 20 0 -10 -20 0 -10 -13 6 -10 13 6 -10
4 16 20 8 -10 20 0 -10 13 6 -10 13 8 -10
4 16 16 8 -6 20 8 -10 13 8 -10 13 8 -8
4 16 -16 8 -6 16 8 -6 13 8 -8 -13 8 -8
4 16 -20 8 -10 -16 8 -6 -13 8 -8 -13 8 -10
2 24 -13 8 -10 -20 8 -10
2 24 13 8 -10 20 8 -10

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Peter Blomberg [WUIt]

initially submitted the part.

2025-09-19 17:13:40

Recreated (due to license), added inset (because it was missing), and subfiled (just for fun)
