File Detail parts/s/18742s01.dat

Unofficial File parts/s/18742s01.dat

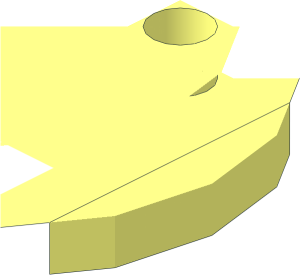

~Bucket 2 x 2 without Handle Holes Quarter

File Header:

0 ~Bucket  2 x  2 without Handle Holes Quarter
0 Name: s\18742s01.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // underside
0 BFC INVERTNEXT
1 16 8.5 4 8.5 2.5 0 0 0 -4 0 0 0 2.5 4-4cylo.dat
1 16 8.5 4 8.5 2.5 0 0 0 -1 0 0 0 2.5 4-4ndis.dat
1 16 0 4 0 18.47759 0 -7.65367 0 -1 0 7.65367 0 18.47759 1-8chrd.dat
3 16 6 4 11 7.6536 4 18.47741 11 4 11
3 16 11 4 11 7.6536 4 18.47741 18.47759 4 7.65367
3 16 11 4 11 18.47759 4 7.65367 11 4 6
4 16 11 4 -6 11 4 6 18.47759 4 7.65367 18.47759 4 -7.65367
4 16 6 4 6 11 4 6 11 4 -6 6 4 -6
0 // underside sides
1 16 16 6 0 0 1 0 0 0 -2 11.36185 0 0 rect.dat
4 16 18.478 8 7.654 18.478 8 -7.654 16 8 -11.36185 16 8 11.36185
1 16 0 8 0 20 0 0 0 -1 0 0 0 20 1-16chrd.dat
3 16 20 8 0 18.478 8 -7.654 18.478 8 7.654
1 16 0 4 0 20 0 0 0 4 0 0 0 20 1-16cyli.dat
1 16 0 8 0 20 0 0 0 1 0 0 0 20 1-16edge.dat
1 16 0 8 0 20 0 0 0 -1 0 0 0 -20 1-16chrd.dat
1 16 0 4 0 20 0 0 0 4 0 0 0 -20 1-16cyli.dat
1 16 0 8 0 20 0 0 0 1 0 0 0 -20 1-16edge.dat
4 16 18.478 4 7.654 18.478 8 7.654 16 8 11.36185 16 4 11.36185
4 16 18.478 8 -7.654 18.478 4 -7.654 16 4 -11.36185 16 8 -11.36185
2 24 14.142 4 14.142 16 4 11.36185
2 24 11.36185 4 16 14.142 4 14.142
2 24 16 8 11.36185 18.478 8 7.654
2 24 16 8 -11.36185 18.478 8 -7.654
5 24 18.478 4 7.654 18.478 8 7.654 20 8 0 16 8 11.36185
5 24 18.478 4 -7.654 18.478 8 -7.654 20 8 0 16 8 -11.36185
0 // inside area
1 16 0 0 0 16 0 0 0 1 0 0 0 16 1-8chrd.dat
1 16 0 0 0 16 0 0 0 1 0 0 0 -16 1-8chrd.dat
1 16 8.5 0 8.5 2.5 0 0 0 1 0 0 0 2.5 4-4ndis.dat
4 16 11 0 -6 11 0 6 6 0 6 6 0 -6
4 16 16 0 0 11.3136 0 11.3136 11 0 11 11 0 6
3 16 16 0 0 11 0 6 11 0 -6
4 16 11 0 -11 11.3136 0 -11.3136 16 0 0 11 0 -6
0 // Added lines/Condlines
5 24 20 0 0 18.478 0 7.654 20 4 0 22.5 -29 0
5 24 18.478 0 -7.654 20 0 0 18.478 4 -7.654 20.787 -29 -8.61
5 24 14.142 0 14.142 7.654 0 18.478 14.142 4 14.142 15.91 -29 15.91
5 24 18.478 0 7.654 14.142 0 14.143 18.478 4 7.654 20.787 -29 8.61

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Jens Brühl [jb70]

initially submitted the part.

2025-09-19 19:45:22

Created subfile for repeated quarter section.
Added missing Cond Lines.
Using flat top and collar.
Corrected geometry based on real part measurements.

Peter Blomberg [WUIt]

made the following comment.

2025-09-19 20:48:54

* The cond lines that float above could well be edge lines. Otherwise, you could just extend the cone downward.

* T-junc around the holes on both sides:
2 24 6 0 6 8.5 0 6
2 24 8.5 0 6 11 0 6
2 24 11 0 6 11 0 8.5
2 24 11 0 8.5 11 0 11
2 24 11 0 11 8.5 0 11
2 24 8.5 0 11 6 0 11
2 24 6 0 11 6 0 8.5
2 24 6 0 8.5 6 0 6

(*) I'm not happy about the 5-digit rect.

(*) I'm not happy about the rotated chord (it bleeds through), but there isn't anything that can be done about it.
