Unofficial File parts/s/2894s01.dat
File Header:

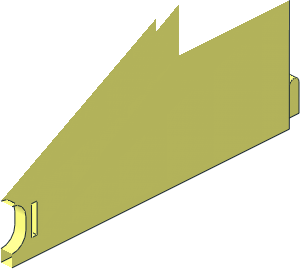

0 ~Electric Train Motor 9V Top Cover - Quarter
0 Name: s\2894s01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-09-24 [Blechtaler] subfiled, removed t-junctions
Show contents
1 16 24 44.75 105.75 0 12 0 0 0 -1.75 -1.75 0 0 2-4cylo.dat
1 16 24 44.75 105.75 0 1 0 0 0 -1.75 -1.75 0 0 2-4chrd.dat
1 16 36 44.75 105.75 0 -1 0 0 0 -1.75 -1.75 0 0 2-4chrd.dat
1 16 30 48 102 6 0 0 0 1 0 0 0 -2 rect3.dat
1 16 30 46.375 104 6 0 0 0 0 1.625 0 1 0 rect3.dat
1 16 30 49.375 107.5 6 0 0 0 0 4.625 0 -1 0 rect3.dat
4 16 24 44.75 104 24 44.75 107.5 24 54 107.5 24 48 104
4 16 36 48 104 36 54 107.5 36 44.75 107.5 36 44.75 104
4 16 36 48 104 36 48 100 36 54 100 36 54 107.5
4 16 24 54 100 24 48 100 24 48 104 24 54 107.5
0 BFC INVERTNEXT
1 16 30 54 102.25 4 0 0 0 -4 0 0 0 2.25 box5.dat
4 16 24 54 100 24 54 107.5 26 54 104.5 26 54 100
4 16 24 54 107.5 36 54 107.5 34 54 104.5 26 54 104.5
4 16 34 54 100 34 54 104.5 36 54 107.5 36 54 100
2 24 24 54 100 24 54 107.5
2 24 36 54 100 36 54 107.5
2 24 36 48 100 36 54 100
2 24 36 54 100 40 54 100
2 24 40 54 100 40 16 100
3 16 36 54 96 24 54 100 26 54 100
3 16 36 54 96 26 54 100 34 54 100
3 16 36 54 96 34 54 100 36 54 100
3 16 36 54 96 36 54 100 40 54 100
4 16 36 54 100 36 48 100 40 16 100 40 54 100
3 16 40 16 100 36 48 100 24 48 100
1 16 40 45 0 0 -1 0 5 0 0 0 0 5 1-4ndis.dat
1 16 36 45 0 0 1 0 5 0 0 0 0 5 1-4ndis.dat
0 BFC INVERTNEXT
1 16 36 45 0 0 4 0 5 0 0 0 0 5 1-4cylo.dat
1 16 38 43 5 0 0 -2 -2 0 0 0 1 0 rect2p.dat
0 BFC INVERTNEXT
1 16 36.001 41 0 0 4 0 -5 0 0 0 0 5 1-4cylo.dat
1 16 40 41 0 0 -1 0 -5 0 0 0 0 5 1-4ndis.dat
1 16 36 41 0 0 1 0 -5 0 0 0 0 5 1-4ndis.dat
0 BFC INVERTNEXT
1 16 40 43 8 0 -2 0 0 0 -5 1 0 0 box5.dat
3 16 40 16 60 40 38 9 40 48 9
4 16 40 16 60 40 48 9 40 54 100 40 16 100
4 16 40 54 100 40 50 5 40 50 0 40 54 0
4 16 40 54 100 40 48 9 40 48 7 40 50 5
3 16 40 50 5 40 48 7 40 45 5
4 16 40 41 5 40 45 5 40 48 7 40 38 7
3 16 40 41 5 40 38 7 40 36 5
4 16 40 38 7 40 38 9 40 16 60 40 36 5
4 16 40 16 60 40 1 60 40 36 0 40 36 5
4 16 36 54 0 36 50 0 36 50 5 36 54 96
3 16 36 54 96 36 50 5 36 45 5
4 16 36 45 5 36 41 5 36 20 96 36 54 96
4 16 36 20 96 36 41 5 36 36 5 36 20 56
4 16 36 36 0 36 5 56 36 20 56 36 36 5
4 16 40 54 0 36 54 0 36 54 96 40 54 100
2 24 40 54 0 40 54 100
2 24 36 54 0 36 54 96
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
Creative Commons Attribution License information
This part is copyright © Rene Rechthaler
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
(should the wheel cutouts also get added? anyone with a broken/opened motor?)
