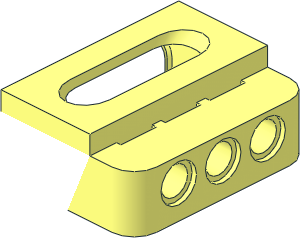

~Electric Bluetooth Remote Control Case Top Half

File Header:

0 ~Electric Bluetooth Remote Control Case Top Half
0 Name: s\u9527s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 40 -8 0 20 0 0 0 8 0 0 0 40 box4o4a.dat
1 16 40 -8 20 9 0 0 0 1 0 0 0 10.8 2-4edge.dat
1 16 41.5 -4 17.7 7.5 0 0 0 1 0 0 0 9 1-4edge.dat
0 BFC INVERTNEXT
1 16 40 -8 20 1.5 1.5 0 0 4 0 0 -2.3 1.8 1-4con5.dat
0 BFC INVERTNEXT
1 16 40 -8 20 -1.5 -1.5 0 0 4 0 0 -2.3 1.8 1-4con5.dat
1 16 38.5 -4 17.7 -7.5 0 0 0 1 0 0 0 9 1-4edge.dat
2 24 38.5 -4 26.7 41.5 -4 26.7
3 16 38.5 -4 26.7 41.5 -4 26.7 40 -8 30.8
1 16 40 -8 20 9 0 0 0 1 0 0 0 10.8 2-4ndis.dat
1 16 40 -8 -20 9 0 0 0 1 0 0 0 -10.8 2-4edge.dat
1 16 41.5 -4 -17.7 7.5 0 0 0 1 0 0 0 -9 1-4edge.dat
0 BFC INVERTNEXT
1 16 40 -8 -20 1.5 1.5 0 0 4 0 0 2.3 -1.8 1-4con5.dat
0 BFC INVERTNEXT
1 16 40 -8 -20 -1.5 -1.5 0 0 4 0 0 2.3 -1.8 1-4con5.dat
1 16 38.5 -4 -17.7 -7.5 0 0 0 1 0 0 0 -9 1-4edge.dat
2 24 41.5 -4 -26.7 38.5 -4 -26.7
3 16 41.5 -4 -26.7 38.5 -4 -26.7 40 -8 -30.8
1 16 40 -8 -20 9 0 0 0 1 0 0 0 -10.8 2-4ndis.dat
2 24 31 -8 -20 31 -8 20
2 24 31 -4 17.7 31 -4 -17.7
4 16 31 -8 -20 31 -4 -17.7 31 -4 17.7 31 -8 20
4 16 20 -8 40 20 -8 -40 31 -8 -30.8 31 -8 30.8
2 24 49 -8 20 49 -8 -20
2 24 49 -4 -17.7 49 -4 17.7
4 16 49 -4 17.7 49 -4 -17.7 49 -8 -20 49 -8 20
4 16 49 -8 -30.8 60 -8 -40 60 -8 40 49 -8 30.8
4 16 49 -8 -30.8 31 -8 -30.8 20 -8 -40 60 -8 -40
4 16 49 -8 30.8 60 -8 40 20 -8 40 31 -8 30.8
1 16 70 0 20 0 0 -1 0 1 0 1 0 0 s\u9360s02.dat
1 16 70 0 30 0 0 -1 0 1 0 1 0 0 s\u9360s04.dat
1 16 70 0 -20 0 0 -1 0 1 0 1 0 0 s\u9360s02.dat
1 16 70 0 -30 0 0 -1 0 1 0 -1 0 0 s\u9360s04.dat
4 16 62 0 8 62 0 12 60 0 12 60 0 8
4 16 80 19 11 80 1 11 80 1 9 80 19 9
4 16 76 10 9 76 10 11 76 19 20 76 19 0
1 16 76 6.5 10 0 1 0 -3.5 0 0 0 0 1 rect1.dat
2 24 64 13.4443 11.6849 64 13.9158 12
4 16 64 3 11 64 3 9 64 13.4443 8.3151 64 13.9158 12
2 24 64 10 11 64 3 11
2 24 64 10 9 64 3 9
1 16 64 10 20 0 -1 0 0 0 9 -9 0 0 1-16edge.dat
1 16 64 10 0 0 -1 0 0 0 9 9 0 0 1-16edge.dat
1 16 70 3 10 -6 0 0 0 -1 0 0 0 1 rect1.dat
1 16 80 10 0 0 -1 0 9 0 0 0 0 9 4-4ndis.dat
1 16 76 10 0 0 -12 0 0 0 9 -9 0 0 2-4cylo.dat
1 16 70 17.9 0 1 0 0 0 -1.525 0 0 0 1 stud3a.dat
1 16 62 10 0 0 1 0 0 0 -6 6 0 0 2-4ndis.dat
2 24 62 0 8 62 0 -8
4 16 62 16 -6 62 24 -8 62 0 -8 62 4 -6
4 16 62 0 -8 62 0 8 62 4 6 62 4 -6
1 16 68 6.5 9 -8 0 0 0 0 -3.5 0 -1 0 rect3.dat
2 24 73.6956 18.6956 -1.5308 74 19 0
2 24 66.3044 18.6956 -1.5308 67.1716 18.4376 -2.8284
2 24 67.1716 18.4376 -2.8284 68.0932 18.3151 -3.4443
2 24 66.3044 18.6956 -1.5308 66 19 0
2 24 72.8284 18.4376 -2.8284 71.9068 18.3151 -3.4443
2 24 72.8284 18.4376 -2.8284 73.6956 18.6956 -1.5308
2 24 68.4692 18.1472 -3.6956 68.0932 18.3151 -3.4443
2 24 71.5308 18.1472 -3.6956 71.9068 18.3151 -3.4443
2 24 70 17.9437 -4 68.4692 18.1472 -3.6956
2 24 70 17.9437 -4 71.5308 18.1472 -3.6956
2 24 71.9068 18.3151 3.4443 71.5308 18.1472 3.6956
2 24 68.0932 18.3151 3.4443 68.4692 18.1472 3.6956
2 24 71.5308 18.1472 3.6956 70 17.9437 4
2 24 70 17.9437 4 68.4692 18.1472 3.6956
2 24 73.6956 18.6956 1.5308 72.8284 18.4376 2.8284
2 24 71.9068 18.3151 3.4443 72.8284 18.4376 2.8284
2 24 74 19 0 73.6956 18.6956 1.5308
2 24 67.1716 18.4376 2.8284 68.0932 18.3151 3.4443
2 24 67.1716 18.4376 2.8284 66.3044 18.6956 1.5308
2 24 66.3044 18.6956 1.5308 66 19 0
4 16 62 0 -12 62 0 -8 60 0 -8 60 0 -12
4 16 80 19 -9 80 1 -9 80 1 -11 80 19 -11
4 16 76 10 -11 76 10 -9 76 19 0 76 19 -20
1 16 76 6.5 -10 0 1 0 -3.5 0 0 0 0 1 rect1.dat
2 24 64 13.9158 -12 64 13.4443 -11.6849
4 16 64 3 -9 64 3 -11 64 13.9158 -12 64 13.4443 -8.3151
2 24 64 10 -9 64 3 -9
2 24 64 10 -11 64 3 -11
1 16 64 10 0 0 -1 0 0 0 9 -9 0 0 1-16edge.dat
1 16 64 10 -20 0 -1 0 0 0 9 9 0 0 1-16edge.dat
1 16 70 3 -10 -6 0 0 0 -1 0 0 0 1 rect1.dat
2 24 80 0 -30 80 0 30
4 16 80 0 30 80 0 -30 80 1 -29 80 1 29
4 16 62 0 -28 80 0 -30 80 0 30 62 0 28
4 16 80 19 29 80 19 -29 80 24 -30 80 24 30
2 24 80 24 -30 80 24 30
2 24 76 24 -30 76 24 30
4 16 80 24 30 80 24 -30 76 24 -30 76 24 30
1 16 62 10 0 0 -1 0 0 0 -6 6 0 0 4-4edge.dat
1 16 70 10 0 0 -1 0 -1 0 0 0 0 1 connhol3.dat
1 16 60 10 0 0 -1 0 0 0 -8 -8 0 0 2-4ndis.dat
1 16 60 10 0 0 -1 0 0 0 -8 -8 0 0 2-4edge.dat
4 16 60 0 8 60 0 -8 60 2 -8 60 2 8
2 24 70 0 -40 60 0 -40
2 24 70 0 40 60 0 40
3 16 60 0 28 70 0 40 60 0 40
3 16 60 0 -40 70 0 -40 60 0 -28
2 24 60 0 -28 60 0 -40
2 24 60 0 40 60 0 28
2 24 60 0 8 60 0 12
2 24 60 0 -12 60 0 -8
4 16 60 0 -28 60 3 -36 60 24 -36 60 24 -12
3 16 60 0 -12 60 0 -28 60 24 -12
4 16 60 24 36 60 3 36 60 0 28 60 24 12
3 16 60 0 28 60 0 12 60 24 12
3 16 60 24 -28 60 24 -36 50 24 -40
4 16 60 24 -36 70 24 -36 70 24 -40 50 24 -40
2 24 60 24 -32 60 24 -36
2 24 50 24 -40 70 24 -40
3 16 60 24 36 60 24 28 50 24 40
4 16 70 24 40 70 24 36 60 24 36 50 24 40
2 24 60 24 36 60 24 32
2 24 70 24 40 50 24 40
2 24 64 13.9158 12 64 24 12
2 24 60 13.9158 12 60 24 12
2 24 64 24 12 60 24 12
2 24 64 13.9158 12 60 13.9158 12
4 16 64 24 12 60 24 12 60 13.9158 12 64 13.9158 12
2 24 64 24 -12 64 13.9158 -12
2 24 60 24 -12 60 13.9158 -12
2 24 64 24 -12 60 24 -12
2 24 64 13.9158 -12 60 13.9158 -12
4 16 64 13.9158 -12 60 13.9158 -12 60 24 -12 64 24 -12
2 24 60 24 -8 60 24 -28
1 16 62 10 0 0 1 0 0 0 6 -6 0 0 2-4ndis.dat
2 24 60 24 -8 62 24 -8
4 16 60 24 -12 60 24 -8 62 24 -8 64 24 -12
4 16 64 10 -9 76 10 -9 76 3 -9 64 3 -9
2 24 64 3 -9 76 3 -9
2 24 76 3 -9 76 10 -9
2 24 60 0 -8 62 0 -8
2 24 60 0 -8 60 24 -8
2 24 62 0 -8 62 24 -8
4 16 62 0 -8 62 24 -8 60 24 -8 60 0 -8
2 24 62 24 8 60 24 8
4 16 62 24 8 60 24 8 60 24 12 64 24 12
2 24 62 0 8 60 0 8
2 24 60 24 8 60 0 8
2 24 62 24 8 62 0 8
4 16 60 24 8 62 24 8 62 0 8 60 0 8
4 16 62 0 8 62 24 8 62 16 6 62 4 6
4 16 62 16 -6 62 16 6 62 24 8 62 24 -8
4 16 62 24 -8 62 24 8 64 24 12 64 24 -12
2 24 62 24 8 62 24 -8
2 24 64 24 12 64 24 -12
2 24 60 24 8 60 24 28
4 16 64 24 12 64 13.9158 12 64 13.4443 8.3151 64 19 0
4 16 64 19 0 64 13.4443 -8.3151 64 13.9158 -12 64 24 -12
3 16 64 19 0 64 24 -12 64 24 12
4 16 76 19 20 76 24 30 76 24 -30 76 19 -20
4 16 70 0 -40 60 0 -40 50 24 -40 70 24 -40
1 16 10 14 40 0 0 7 -7 0 0 0 1 0 1-4edge.dat
0 BFC INVERTNEXT
1 16 10 14 40 0 0 1 -1 0 0 0 -1.2 0 1-4con6.dat
0 BFC INVERTNEXT
1 16 10 14 38.8 0 0 6 -6 0 0 0 -1 0 1-4cylo.dat
1 16 10 14 40 0 0 7 -7 0 0 0 -1 0 1-4ndis.dat
1 16 16 19 38.3 0 1 0 0 0 5 -.5 0 0 rect3.dat
2 24 16 24 38.8 17 24 40
2 24 17 14 40 17 24 40
4 16 16 24 38.8 16 14 38.8 17 14 40 17 24 40
4 16 20 0 40 70 0 40 70 24 40 50 24 40
4 16 20 0 40 50 24 40 17 24 40 17 7 40
2 24 50 24 40 17 24 40

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/u9360s04.dat (Needs More Votes)
parts/s/u9360s02.dat (Needs More Votes)
No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2025-09-24 15:51:19

Rene Rechthaler [Blechtaler]

posted a vote of Hold.

2025-09-24 16:01:05

hold: overlap at the rear of the right/rear pinhole
not directly hold but not nice: t-junk, especially around the holes for the rear pegholes
why the ring around the front peghole? could remove it and shrink the ndis to save vertices and faces

Philippe Hurbain [Philo]

submitted a new version of the part.

2025-09-24 16:12:06

1-Fixed overlap
2-Simpler, doesn't impact visually
3- Oops, forgot to revert to connhol3 (that provides automatic connectivity).

Rene Rechthaler [Blechtaler]

posted a vote of Hold.

2025-09-24 16:22:41

overlap still there (a 2-4chrd)
and tjunk along a hard edge is somewhat ok, along the center vertex of a bit less (still acceptable), but I think this is across too many vertices
(both to the front plane and to the top box, maybe reduce the box4 to a box3)

Magnus Forsberg [MagFors]

made the following comment.

2025-09-24 17:02:38

Yes, this one
1 16 60 10 20 0 -1 0 0 0 8 -8 0 0 2-4chrd.dat

Philippe Hurbain [Philo]

submitted a new version of the part.

2025-09-24 17:18:44

Oops, forgot the chrd. corrected.
As for T-junction, show me any visual issue, and we'll discuss.

Rene Rechthaler [Blechtaler]

made the following comment.

2025-09-24 17:32:04

its right here in the wiki:
https://wiki.ldraw.org/wiki/T-Junction
and it shouldnt be that hard to fix...
(and most other people care for them)
