Unofficial File parts/4547.dat
Part Attributes:
File Header:

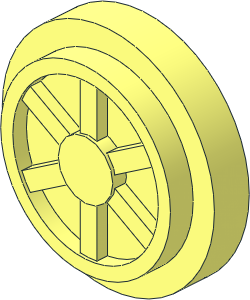

0 ~Duplo Train Wheel 28 mm
0 Name: 4547.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4547s01.dat
1 16 0 0 -19 0 0 9 9 0 0 0 4.5 0 1-16cylo.dat
1 16 0 0 -19 0 0 -9 9 0 0 0 4.5 0 1-16cylo.dat
1 16 0 0 -19 0 0 9 9 0 0 0 1 0 1-16chrd.dat
1 16 0 0 -19 0 0 -9 9 0 0 0 1 0 1-16chrd.dat
3 16 -3.4443 8.3151 -19 0 9 -19 3.4443 8.3151 -19
4 16 -9 16.6302 -14.5 9 16.6302 -14.5 3.4443 8.3151 -14.5 -3.4443 8.3151 -14.5
4 16 9 16.6302 -14.5 -9 16.6302 -14.5 -6.2112 23.1816 -14.5 6.2112 23.1816 -14.5
3 16 6.2112 23.1816 -14.5 -6.2112 23.1816 -14.5 0 24 -14.5
1 16 0 0 -14.5 0 0 24 24 0 0 0 1 0 48\1-24chrd.dat
1 16 0 0 -14.5 0 0 -24 24 0 0 0 1 0 48\1-24chrd.dat
0 BFC INVERTNEXT
1 16 0 0 -14.5 0 0 24 24 0 0 0 -4.5 0 48\1-24cylo.dat
0 BFC INVERTNEXT
1 16 0 0 -14.5 0 0 -24 24 0 0 0 -4.5 0 48\1-24cylo.dat
1 16 0 0 -19 0 0 -4 4 0 0 0 1 0 48\1-24ring6.dat
1 16 0 0 -19 0 0 4 4 0 0 0 1 0 48\1-24ring6.dat
0 // Spokes
1 16 0 16.25 -14.5 0 0 -2.75 8.5 0 0 0 -3.5 0 box3u8p.dat
2 24 -2.75 8.4532 -14.5 -2.75 8.4532 -18
2 24 -2.75 8.4532 -18 0 9 -18
2 24 2.75 8.4532 -14.5 2.75 8.4532 -18
2 24 0 9 -18 2.75 8.4532 -18
2 24 -2.75 23.8188 -14.5 -2.75 23.8188 -18
2 24 -2.75 23.8188 -18 0 24 -18
2 24 2.75 23.8188 -18 0 24 -18
2 24 2.75 23.8188 -14.5 2.75 23.8188 -18
0 // Inside
1 16 0 0 -8.5 31.11111 0 0 0 0 31.11111 0 -1 0 48\2-4chrd.dat
1 16 0 0 -8.5 9 0 0 0 0 9 0 1 0 4-4edge.dat
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2025-09-26 21:00:46
