Unofficial File parts/3835.dat
Part Attributes:
File Header:

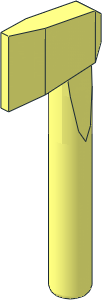

0 Minifig Tool Handaxe
0 Name: 3835.dat
0 Author: Chris Dee [cwdee]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Accessory
0 !HISTORY 2003-08-01 [PTadmin] Official Update 2003-02
0 !HISTORY 2007-07-22 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [PTadmin] Renamed from 744
0 !HISTORY 2009-05-02 [PTadmin] Official Update 2009-01
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
Show contents
1 16 0 0 0 4 0 0 0 32 0 0 0 4 4-4cyli.dat
1 16 0 32 0 4 0 0 0 2 0 0 0 4 4-8sphe.dat
1 16 0 -20 7 1 0 0 0 0 3 0 -1 0 rect.dat
2 24 1 -23 7 2.5 -25.5 4
2 24 2.5 -25.5 4 2.5 -27.048 -9
2 24 2.5 -27.048 -9 1 -28 -17
2 24 1 -17 7 2.5 -14.5 4
2 24 2.5 -14.5 4 2.5 -12.952 -9
2 24 2.5 -12.952 -9 1 -12 -17
2 24 2.5 -25.5 4 2.5 -14.5 4
2 24 2.5 -27.048 -9 2.5 -12.952 -9
4 16 2.5 -25.5 4 2.5 -14.5 4 1 -17 7 1 -23 7
4 16 2.5 -27.048 -9 2.5 -12.952 -9 2.5 -14.5 4 2.5 -25.5 4
4 16 1 -28 -17 1 -12 -17 2.5 -12.952 -9 2.5 -27.048 -9
2 24 -1 -23 7 -2.5 -25.5 4
2 24 -2.5 -25.5 4 -2.5 -27.048 -9
2 24 -2.5 -27.048 -9 -1 -28 -17
2 24 -1 -17 7 -2.5 -14.5 4
2 24 -2.5 -14.5 4 -2.5 -12.952 -9
2 24 -2.5 -12.952 -9 -1 -12 -17
2 24 -2.5 -25.5 4 -2.5 -14.5 4
2 24 -2.5 -27.048 -9 -2.5 -12.952 -9
4 16 -2.5 -25.5 4 -1 -23 7 -1 -17 7 -2.5 -14.5 4
4 16 -2.5 -27.048 -9 -2.5 -25.5 4 -2.5 -14.5 4 -2.5 -12.952 -9
4 16 -1 -28 -17 -2.5 -27.048 -9 -2.5 -12.952 -9 -1 -12 -17
4 16 -2.5 -25.5 4 2.5 -25.5 4 1 -23 7 -1 -23 7
2 24 2.5 -25.5 4 -2.5 -25.5 4
4 16 -2.5 -27.048 -9 2.5 -27.048 -9 2.5 -25.5 4 -2.5 -25.5 4
4 16 -1 -28 -17 1 -28 -17 2.5 -27.048 -9 -2.5 -27.048 -9
4 16 2.5 -14.5 4 -2.5 -14.5 4 -1 -17 7 1 -17 7
2 24 2.5 -14.5 4 -2.5 -14.5 4
4 16 2.5 -12.952 -9 -2.5 -12.952 -9 -2.5 -14.5 4 2.5 -14.5 4
4 16 1 -12 -17 -1 -12 -17 -2.5 -12.952 -9 2.5 -12.952 -9
1 16 0 -20 -17 1 0 0 0 0 8 0 1 0 rect.dat
2 24 4 0 0 3.6956 -2.6381 1.5308
2 24 3.6956 -2.6381 1.5308 2.8284 -10.1539 2.8284
2 24 2.8284 -10.1539 2.8284 2.339 -14.399 3.156
2 24 4 0 0 3.6956 -2.6381 -1.5308
2 24 3.6956 -2.6381 -1.5308 2.8284 -10.1539 -2.8284
2 24 2.8284 -10.1539 -2.8284 2.424 -13.655 -3.098
3 16 3.6956 -2.6381 1.5308 3.6956 -2.6381 -1.5308 4 0 0
4 16 2.8284 -10.1539 2.8284 2.8284 -10.1539 -2.8284 3.6956 -2.6381 -1.5308 3.6956 -2.6381 1.5308
4 16 2.339 -14.399 3.156 2.424 -13.655 -3.098 2.8284 -10.1539 -2.8284 2.8284 -10.1539 2.8284
2 24 0 -13.5474 -4 1.5308 -13.5836 -3.6956
2 24 1.5308 -13.5836 -3.6956 2.424 -13.655 -3.098
2 24 2.424 -13.655 -3.098 2.339 -14.399 3.156
2 24 2.339 -14.399 3.156 1.5308 -14.4638 3.6956
2 24 1.5308 -14.4638 3.6956 0 -14.5 4
3 16 4 0 0 3.6956 0 1.5308 3.6956 -2.6381 1.5308
4 16 3.6956 -2.6381 1.5308 3.6956 0 1.5308 2.8284 0 2.8284 2.8284 -10.1539 2.8284
5 8 3.6956 0 1.5308 3.6956 -2.6381 1.5308 2.8284 0 2.8284 4 0 0
4 16 2.339 -14.399 3.156 2.8284 -10.1539 2.8284 1.5308 -10.1539 3.6956 1.5308 -14.4638 3.6956
4 16 2.8284 -10.1539 2.8284 2.8284 0 2.8284 1.5308 0 3.6956 1.5308 -10.1539 3.6956
5 8 2.8284 0 2.8284 2.8284 -10.1539 2.8284 1.5308 0 3.6956 3.6956 0 1.5308
4 16 1.5308 -14.4638 3.6956 1.5308 0 3.6956 0 0 4 0 -14.5 4
5 24 1.5308 0 3.6956 1.5308 -14.4638 3.6956 0 0 4 2.8284 0 2.8284
3 16 3.6956 -2.6381 -1.5308 3.6956 0 -1.5308 4 0 0
4 16 3.6956 -2.6381 -1.5308 2.8284 -10.1539 -2.8284 2.8284 0 -2.8284 3.6956 0 -1.5308
5 8 3.6956 0 -1.5308 3.6956 -2.6381 -1.5308 2.8284 0 -2.8284 4 0 0
4 16 2.424 -13.655 -3.098 1.5308 -13.5836 -3.6956 1.5308 -10.1539 -3.6956 2.8284 -10.1539 -2.8284
4 16 2.8284 -10.1539 -2.8284 1.5308 -10.1539 -3.6956 1.5308 0 -3.6956 2.8284 0 -2.8284
5 8 2.8284 0 -2.8284 2.8284 -10.1539 -2.8284 1.5308 0 -3.6956 3.6956 0 -1.5308
4 16 1.5308 -13.5836 -3.6956 0 -13.5474 -4 0 0 -4 1.5308 0 -3.6956
5 8 1.5308 0 -3.6956 1.5308 -13.5836 -3.6956 0 0 -4 2.8284 0 -2.8284
2 24 -4 0 0 -3.6956 -2.6381 1.5308
2 24 -3.6956 -2.6381 1.5308 -2.8284 -10.1539 2.8284
2 24 -2.8284 -10.1539 2.8284 -2.339 -14.399 3.156
2 24 -4 0 0 -3.6956 -2.6381 -1.5308
2 24 -3.6956 -2.6381 -1.5308 -2.8284 -10.1539 -2.8284
2 24 -2.8284 -10.1539 -2.8284 -2.424 -13.655 -3.098
3 16 -4 0 0 -3.6956 -2.6381 -1.5308 -3.6956 -2.6381 1.5308
4 16 -2.8284 -10.1539 2.8284 -3.6956 -2.6381 1.5308 -3.6956 -2.6381 -1.5308 -2.8284 -10.1539 -2.8284
4 16 -2.339 -14.399 3.156 -2.8284 -10.1539 2.8284 -2.8284 -10.1539 -2.8284 -2.424 -13.655 -3.098
2 24 0 -13.5474 -4 -1.5308 -13.5836 -3.6956
2 24 -1.5308 -13.5836 -3.6956 -2.424 -13.655 -3.098
2 24 -2.424 -13.655 -3.098 -2.339 -14.399 3.156
2 24 -2.339 -14.399 3.156 -1.5308 -14.4638 3.6956
2 24 -1.5308 -14.4638 3.6956 0 -14.5 4
3 16 -3.6956 -2.6381 1.5308 -3.6956 0 1.5308 -4 0 0
4 16 -3.6956 -2.6381 1.5308 -2.8284 -10.1539 2.8284 -2.8284 0 2.8284 -3.6956 0 1.5308
5 8 -3.6956 0 1.5308 -3.6956 -2.6381 1.5308 -2.8284 0 2.8284 -4 0 0
4 16 -2.339 -14.399 3.156 -1.5308 -14.4638 3.6956 -1.5308 -10.1539 3.6956 -2.8284 -10.1539 2.8284
4 16 -2.8284 -10.1539 2.8284 -1.5308 -10.1539 3.6956 -1.5308 0 3.6956 -2.8284 0 2.8284
5 8 -2.8284 0 2.8284 -2.8284 -10.1539 2.8284 -1.5308 0 3.6956 -3.6956 0 1.5308
4 16 -1.5308 -14.4638 3.6956 0 -14.5 4 0 0 4 -1.5308 0 3.6956
5 24 -1.5308 0 3.6956 -1.5308 -14.4638 3.6956 0 0 4 -2.8284 0 2.8284
3 16 -4 0 0 -3.6956 0 -1.5308 -3.6956 -2.6381 -1.5308
4 16 -3.6956 -2.6381 -1.5308 -3.6956 0 -1.5308 -2.8284 0 -2.8284 -2.8284 -10.1539 -2.8284
5 8 -3.6956 0 -1.5308 -3.6956 -2.6381 -1.5308 -2.8284 0 -2.8284 -4 0 0
4 16 -2.424 -13.655 -3.098 -2.8284 -10.1539 -2.8284 -1.5308 -10.1539 -3.6956 -1.5308 -13.5836 -3.6956
4 16 -2.8284 -10.1539 -2.8284 -2.8284 0 -2.8284 -1.5308 0 -3.6956 -1.5308 -10.1539 -3.6956
5 8 -2.8284 0 -2.8284 -2.8284 -10.1539 -2.8284 -1.5308 0 -3.6956 -3.6956 0 -1.5308
4 16 -1.5308 -13.5836 -3.6956 -1.5308 0 -3.6956 0 0 -4 0 -13.5474 -4
5 8 -1.5308 0 -3.6956 -1.5308 -13.5836 -3.6956 0 0 -4 -2.8284 0 -2.8284
5 24 0 0 4 0 -14.5 4 1.5308 0 3.6956 -1.5308 0 3.6956
5 24 0 0 -4 0 -13.5474 -4 1.5308 0 -3.6956 -1.5308 0 -3.6956
