Unofficial File parts/43802.dat
Part Attributes:
File Header:

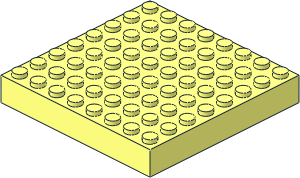

0 Brick 8 x 8 with Reinforced Underside
0 Name: 43802.dat
0 Author: Jude Parrill [theJudeAbides]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 4201, Rebrickable 4201
0 !HISTORY 2013-12-23 [PTadmin] Official Update 2013-02
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
Show contents
1 16 -40 4 -40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 4 -40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 40 4 -40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -40 4 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 4 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 40 4 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -40 4 40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 4 40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 40 4 40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -40 4 40 -1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 -20 4 40 1 0 0 0 1 0 0 0 1 filletr0s.dat
1 16 0 4 40 -1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 20 4 40 1 0 0 0 1 0 0 0 1 filletr0s.dat
1 16 40 4 40 0 0 1 0 -5 0 1 0 0 stud4f4s.dat
1 16 -40 4 20 0 0 -1 0 1 0 1 0 0 filletr0s.dat
1 16 0 4 20 0 0 1 0 1 0 -1 0 0 filletr0s.dat
1 16 40 4 20 0 0 1 0 1 0 -1 0 0 filletr0s.dat
1 16 -40 4 0 0 0 -1 0 -5 0 -1 0 0 stud4f4s.dat
1 16 -20 4 0 1 0 0 0 1 0 0 0 1 filletr0s.dat
1 16 0 4 0 0 0 -1 0 -5 0 -1 0 0 stud4f4s.dat
1 16 20 4 0 -1 0 0 0 1 0 0 0 -1 filletr0s.dat
1 16 40 4 0 0 0 1 0 -5 0 1 0 0 stud4f4s.dat
1 16 -40 4 -20 0 0 -1 0 1 0 1 0 0 filletr0s.dat
1 16 0 4 -20 0 0 -1 0 1 0 1 0 0 filletr0s.dat
1 16 40 4 -20 0 0 1 0 1 0 -1 0 0 filletr0s.dat
1 16 -40 4 -40 0 0 -1 0 -5 0 -1 0 0 stud4f4s.dat
1 16 -20 4 -40 -1 0 0 0 1 0 0 0 -1 filletr0s.dat
1 16 0 4 -40 1 0 0 0 -5 0 0 0 -1 stud4f4s.dat
1 16 20 4 -40 -1 0 0 0 1 0 0 0 -1 filletr0s.dat
1 16 40 4 -40 1 0 0 0 -5 0 0 0 -1 stud4f4s.dat
1 16 -40 4 40 0 0 -1 0 1 0 1 0 0 filletr2s.dat
1 16 -40 4 40 1 0 0 0 1 0 0 0 1 filletr1s.dat
1 16 0 4 40 1 0 0 0 1 0 0 0 1 filletr1s.dat
1 16 40 4 40 1 0 0 0 1 0 0 0 1 filletr2s.dat
1 16 40 4 40 0 0 1 0 1 0 -1 0 0 filletr1s.dat
1 16 40 4 0 0 0 1 0 1 0 -1 0 0 filletr1s.dat
1 16 40 4 -40 0 0 1 0 1 0 -1 0 0 filletr2s.dat
1 16 40 4 -40 -1 0 0 0 1 0 0 0 -1 filletr1s.dat
1 16 0 4 -40 -1 0 0 0 1 0 0 0 -1 filletr1s.dat
1 16 -40 4 -40 -1 0 0 0 1 0 0 0 -1 filletr2s.dat
1 16 -40 4 -40 0 0 -1 0 1 0 1 0 0 filletr1s.dat
1 16 -40 4 0 0 0 -1 0 1 0 1 0 0 filletr1s.dat
1 16 -60 4 60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -20 4 60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 20 4 60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 60 4 60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -60 4 20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -20 4 20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 20 4 20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 60 4 20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -60 4 -20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -20 4 -20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 20 4 -20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 60 4 -20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -60 4 -60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -20 4 -60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 20 4 -60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 60 4 -60 1 0 0 0 -5 0 0 0 1 stud4.dat
4 16 76.5 4 76.5 76.5 4 -76.5 -76.5 4 -76.5 -76.5 4 76.5
4 16 80 24 80 76.5 24 76.5 -76.5 24 76.5 -80 24 80
4 16 80 24 -80 76.5 24 -76.5 76.5 24 76.5 80 24 80
4 16 -80 24 -80 -76.5 24 -76.5 76.5 24 -76.5 80 24 -80
4 16 -76.5 24 76.5 -76.5 24 -76.5 -80 24 -80 -80 24 80
1 16 0 24 0 80 0 0 0 -24 0 0 0 80 box5.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug-8x8.dat
Status:
Certified (TF)
This part has the following errors
- All parts are required to be CC BY 4.0
Current Votes:
| User | Vote |
|---|---|
| OrionP | Admin Fast Track |
Official parents and subparts
Part Events:
Archived Part Events:
None
2025-09-27 02:12:31
Creative Commons Attribution License information
This part is copyright © Jude Parrill
Licensed under CC BY 2.0
