Unofficial File parts/6039.dat
Part Attributes:
File Header:

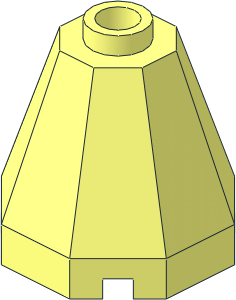

0 Cone 2 x 2 x 1.667 Octagonal
0 Name: 6039.dat
0 Author: Steve Bliss [sbliss]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Aquazone, peak, pipe, point
0 !HISTORY 1999-02-01 [PTadmin] Official Update 1999-01
0 !HISTORY 2007-07-09 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2013-08-05 [mkennedy] BFCed, used more primitives, fixed bowtie quads
0 !HISTORY 2013-12-23 [PTadmin] Official Update 2013-02
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
