Unofficial File parts/s/2857s01.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

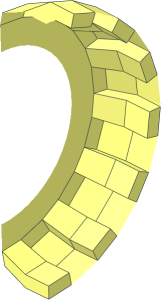

0 ~Tyre 20/ 46 x 30 Off Road - 1/4
0 Name: s\2857s01.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2017-12-30 [PTadmin] Official Update 2017-01
0 !HISTORY 2025-09-29 [Blechtaler] added tangShow file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6581b.dat
1 16 -25 0 0 0 1 0 38 0 0 0 0 38 48\1-4tang.dat
1 16 -25 0 0 0 1 0 -38 0 0 0 0 38 48\1-4tang.dat
4 16 -25 -38 0 -25 -49.9954 -.5531 -25 -48.6203 11.6646 -25 -38 7.5582
4 16 -25 -45.2857 21.1945 -25 -35.1082 14.5426 -25 -38 7.5582 -25 -48.6203 11.6646
4 16 -25 -38.7443 31.605 -25 -32.2164 21.527 -25 -35.1082 14.5426 -25 -45.2857 21.1945
3 16 -25 -26.8698 26.8698 -25 -32.2164 21.527 -25 -38.7443 31.605
4 16 -25 -21.527 32.2164 -25 -26.8698 26.8698 -25 -38.7443 31.605 -25 -31.605 38.7443
4 16 -25 -14.5426 35.1082 -25 -21.527 32.2164 -25 -31.605 38.7443 -25 -21.1945 45.2857
4 16 -25 -7.5582 38 -25 -14.5426 35.1082 -25 -21.1945 45.2857 -25 -11.6646 48.6203
4 16 -25 0 38 -25 -7.5582 38 -25 -11.6646 48.6203 -25 .5531 49.9969
4 16 -25 7.5582 38 -25 0 38 -25 .5531 49.9969 -25 10.5861 48.8665
4 16 -25 22.1912 44.8057 -25 14.5426 35.1082 -25 7.5582 38 -25 10.5861 48.8665
4 16 -25 14.5426 35.1082 -25 22.1912 44.8057 -25 30.7401 39.4341 -25 21.527 32.2164
4 16 -25 39.4341 30.7401 -25 26.8698 26.8698 -25 21.527 32.2164 -25 30.7401 39.4341
3 16 -25 26.8698 26.8698 -25 39.4341 30.7401 -25 32.2164 21.527
4 16 -25 39.4341 30.7401 -25 44.8057 22.1912 -25 35.1082 14.5426 -25 32.2164 21.527
4 16 -25 44.8057 22.1912 -25 48.8665 10.5861 -25 38 7.5582 -25 35.1082 14.5426
4 16 -25 38 0 -25 38 7.5582 -25 48.8665 10.5861 -25 49.9954 .5531Status
Needs 2 More Votes (F)
Current Votes:
No recorded votesThis part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Part Dependencies
Official parents and subparts
Part Events
Archived Part Events:
Rene Rechthaler [Blechtaler]
initially submitted the part.
2025-09-29 10:53:38
with tang to get a better connection to the inner cylo
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2025-09-29 18:25:52
