Unofficial File parts/s/51547s01.dat
File Header:

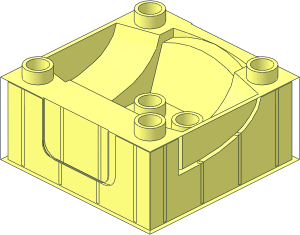

0 ~Duplo Train Cab / Tender Base without Patternable Surfaces
0 Name: s\51547s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
4 16 36 72 -36 40 72 -40 -40 72 -40 -36 72 -36
4 16 -36 72 36 -40 72 40 40 72 40 36 72 36
0 BFC INVERTNEXT
1 16 0 72 0 36 0 0 0 -20 0 0 0 36 box5.dat
1 16 0 52 0 0 0 -1 0 -4 0 1 0 0 stud8.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\51547s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\51547s02.dat
1 16 0 72 0 80 0 0 0 1 0 0 0 80 recte4.dat
1 16 0 72 0 76 0 0 0 1 0 0 0 76 recte4.dat
4 16 -80 72 -80 -76 72 -76 76 72 -76 80 72 -80
4 16 -76 72 -76 -27 52 -76 27 52 -76 76 72 -76
4 16 27 52 -74 27 52 -76 -27 52 -76 -27 52 -74
2 24 -27 52 -76 27 52 -76
2 24 27 52 -74 -27 52 -74
4 16 27 52 -74 -27 52 -74 -39 40 -74 39 40 -74
1 16 0 22 -76 0 0 39 18 0 0 0 2 0 box3u5p.dat
4 16 39 4 -74 -39 4 -74 -38 4 -55 38 4 -55
4 16 37 4 -50 38 4 -55 -38 4 -55 -37 4 -50
4 16 37 44 -50 37 4 -50 -37 4 -50 -37 44 -50
4 16 37 44 -50 -37 44 -50 -44 52 -50 44 52 -50
2 24 37 4 -50 -37 4 -50
4 16 40 52 -40 44 52 -50 -44 52 -50 -40 52 -40
1 16 0 72 0 40 0 0 0 -20 0 0 0 40 box4.dat
1 16 0 52 -3 44 0 0 0 1 0 0 0 47 recte4.dat
4 16 40 52 40 -40 52 40 -44 52 44 44 52 44
3 16 0 4 60 44 52 44 -44 52 44
3 16 39 4 74 0 4 73 -39 4 74
1 16 0 22 76 0 0 39 18 0 0 0 -2 0 box3u5p.dat
4 16 -27 52 74 27 52 74 39 40 74 -39 40 74
4 16 27 52 74 -27 52 74 -27 52 76 27 52 76
4 16 27 52 76 -27 52 76 -76 72 76 76 72 76
2 24 27 52 74 -27 52 74
2 24 -27 52 76 27 52 76
4 16 -80 72 80 80 72 80 76 72 76 -76 72 76
5 24 0 0 70 0 0 56 13.572 .8944 55.7019 -13.572 .8944 55.7019
5 24 0 4 73 0 4 60 13.572 4.8944 59.7019 -13.572 4.8944 59.7019
2 24 -27 48 -80 27 48 -80
2 24 27 48 -79 -27 48 -79
2 24 -35 0 -79 35 0 -79
2 24 -35 0 79 35 0 79
2 24 -27 48 80 27 48 80
2 24 27 48 79 -27 48 79
0 // Top - Inside
3 16 0 0 70 35 0 79 -35 0 79
3 16 0 0 56 -40 48 40 40 48 40
0 BFC INVERTNEXT
1 16 0 44 -3 40 0 0 0 4 0 0 0 -43 box2-7.dat
1 16 0 20 -48.25 40 0 0 0 -20 0 0 0 2.25 box2-7.dat
4 16 -40 0 -50.5 -35 0 -79 35 0 -79 40 0 -50.5
2 24 40 48 40 -40 48 40
1 16 0 48 0 0 0 1 0 2.75 0 -1 0 0 stug7-2x2.dat
1 16 60 0 60 0 0 1 0 2.75 0 -1 0 0 stud7.dat
1 16 60 0 -60 0 0 1 0 2.75 0 -1 0 0 stud7.dat
1 16 -60 0 60 0 0 1 0 2.75 0 -1 0 0 stud7.dat
1 16 -60 0 -60 0 0 1 0 2.75 0 -1 0 0 stud7.dat
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2025-09-29 22:14:45
2025-10-01 16:03:06
looks even the rear side is printed too (not together, but in separate parts)
are the front/rear recessed cutouts identical? maybe cut that out from the half subpart and create a new front subpart
(which then gets also mirrored to the rear, except for the cases its printed)
are the front/rear recessed cutouts identical? maybe cut that out from the half subpart and create a new front subpart
(which then gets also mirrored to the rear, except for the cases its printed)
2025-10-01 17:09:38
YEs, seems three sides are the most, could not find one where all four sides are printed
2025-10-03 10:58:16
Color error on lines 54 and 55.
At the same time, revise the subparting to cater all pattern combinations
At the same time, revise the subparting to cater all pattern combinations
corrected line colour
reorganized for front/back Print
reorganized for front/back Print
Missing an edge line between the seat and the backrest.
added edge line
