Unofficial File parts/7729.dat
Part Attributes:
File Header:

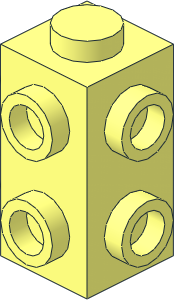

0 Brick 1 x 1 x 1.667 with Studs on 3 Sides
0 Name: 7729.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 stud.dat
1 16 0 40 0 10 0 0 0 -40 0 0 0 10 box5.dat
0 BFC INVERTNEXT
1 16 0 40 0 6 0 0 0 -36 0 0 0 6 box5.dat
1 16 10 20 0 0 -1 0 1 0 0 0 0 1 stug2-1x2.dat
1 16 0 20 -10 0 0 1 1 0 0 0 1 0 stug2-1x2.dat
1 16 -10 20 0 0 1 0 1 0 0 0 0 -1 stug2-1x2.dat
4 16 6 40 6 10 40 10 10 40 -10 6 40 -6
4 16 -6 40 6 -10 40 10 10 40 10 6 40 6
4 16 -6 40 -6 -10 40 -10 -10 40 10 -6 40 6
4 16 6 40 -6 10 40 -10 -10 40 -10 -6 40 -6
Status:
Needs More Votes (N)
Current Votes:
None
Official parents and subparts
Part Events:
2025-09-30 20:20:22
2025-09-30 20:28:44
should the "empty" side be to the side or to the rear?
2025-09-30 20:56:08
how did those lines get into the file?
2 24 10 0 -10 10 40 -10
2 24 6 4 -6 6 40 -6
2 24 10 40 10 10 0 10
2 24 6 40 6 6 4 6
Interesting that these are not through holes, at least on one side
2 24 10 0 -10 10 40 -10
2 24 6 4 -6 6 40 -6
2 24 10 40 10 10 0 10
2 24 6 40 6 6 4 6
Interesting that these are not through holes, at least on one side
The first version I made had through holes, but then I had a closer look at the images.
Forgot to remove those edges.
Forgot to remove those edges.
