Unofficial File parts/98263.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

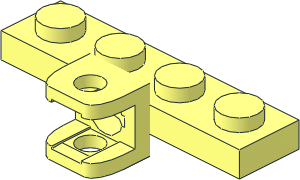

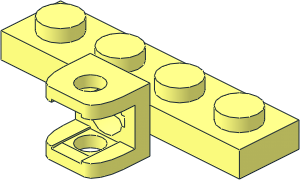

0 Plate 1 x 4 with Socket Joint-8 Square
0 Name: 98263.dat
0 Author: J.C. Tchang [tchang]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Plate
0 !KEYWORDS towball
0 !HISTORY 2012-08-09 [PTadmin] Official Update 2012-02
0 !HISTORY 2014-01-06 [timgould] Make use of new socket primitive
0 !HISTORY 2017-12-30 [PTadmin] Official Update 2017-01
0 !HISTORY 2025-10-04 [Sirio] Modified for new socket primitiveShow file code:
1 16 0 4 -20 1 0 0 0 1 0 0 0 1 joint8socket2.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 3710.dat
0 // Faces
4 16 10 14 -10 -10 14 -10 -10 8 -10 10 8 -10
4 16 10 -6 -10 10 0 -10 -10 0 -10 -10 -6 -10
0 // Edges
2 24 -10 14 -10 -10 -6 -10
2 24 -10 14 -10 10 14 -10
2 24 10 14 -10 10 -6 -10
2 24 -10 -6 -10 10 -6 -10Status
Needs 1 More Vote (CF)
Current Votes:
Magnus Forsberg [MagFors]
Part Dependencies
Official parents and subparts
Part Events
Archived Part Events:
Massimo Maso [Sirio]
initially submitted the part.
2025-10-03 23:07:22
Modified for changes in joint8socket2.
Rene Rechthaler [Blechtaler]
made the following comment.
2025-10-03 23:27:48
should this use s\3710s01.dat instead of 3710.dat? (just to avoid the additional surface inside)
Massimo Maso [Sirio]
submitted a new version of the part (all votes reset).
2025-10-09 16:54:45
Rene Rechthaler [Blechtaler]
posted a vote of Hold
2025-10-09 18:54:08
misses the bottom edgeline of the socket
(also reminder for the subpart)
(also reminder for the subpart)
Massimo Maso [Sirio]
submitted a new version of the part (all votes reset).
2025-10-13 23:13:27
Magnus Forsberg [MagFors]
posted a vote of Certify
2025-10-14 18:35:27
