Unofficial File parts/868.dat
Part Attributes:
File Header:

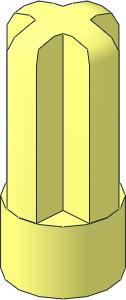

0 ~Train 12V Actuator Technic Axle
0 Name: 868.dat
0 Author: Steffen [Steffen]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
0 !HISTORY 2025-10-04 [MagFors] Shaped axleend
Show contents
1 16 0 -20 0 0 0 1 0 1 0 1 0 0 axleend2.dat
1 16 0 0 0 0 0 1 0 1 0 1 0 0 axlehol9.dat
1 16 0 0 0 0 0 1 0 -17.5 0 1 0 0 axlehol8.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 axlehol3.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 axleho10.dat
1 16 0 0 0 6 0 0 0 8 0 0 0 -6 4-4cyli.dat
1 16 0 8 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 8 0 6 0 0 0 -1 0 0 0 -6 4-4disc.dat
Status:
Needs 1 More Vote (CF)
Current Votes:
| User | Vote |
|---|---|
| WUIt | Certify |
Official parents and subparts
Part Events:
Archived Part Events:
2025-10-05 14:07:01
2025-10-05 18:21:02
are the edgelines from axle to round shaft correct?
should be either no edgelines (if same diameter) or a bigger cylo...
2025-11-26 23:42:39
could even use axleho12.dat with the fitting edge prims
Removed one never visible edge prim, thus removing the connection seeking benefits of the axleend20.dat
2025-11-28 15:52:07
