File Detail parts/s/2156s01.dat

Official File parts/s/2156s01.dat

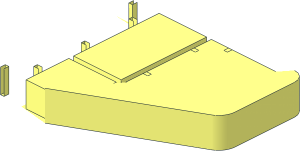

~Duplo Plate 3 x 8 with Chamfered Corners - Half

File Header:

0 ~Duplo Plate  3 x 8 with Chamfered Corners - Half
0 Name: s\2156s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2025-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-10-27 [OrionP] Official Update 2025-10

Show contents

0 // Centre
1 16 20 4 54 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 20 4 -54 1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 34 4 -40 0 0 -2 0 19 0 -1.5 0 0 box4-1.dat
1 16 34 4 0 0 0 -2 0 19 0 -1.5 0 0 box4-1.dat
1 16 34 4 40 0 0 -2 0 19 0 -1.5 0 0 box4-1.dat

0 // Sides
4 16 36 24 56 40 24 56 40 24 -16 36 24 -56
3 16 40 24 -16 40 24 -20 36 24 -56
3 16 40 24 -20 40 24 -56 36 24 -56
4 16 80 24 -16 80 24 -20 40 24 -20 40 24 -16
3 16 59.1 24 -56 60 24 -60 40 24 -56
3 16 40 24 -56 60 24 -60 36 24 -56
4 16 80 24 -16 80 24 56 84 24 56 84 24 -16
4 16 84 24 -20 80 24 -20 80 24 -16 84 24 -16
4 16 80 24 -45.2 80 24 -20 84 24 -20 84 24 -43.146
4 16 80 24 -45.2 84 24 -43.146 153 24 -12.124 60 24 -60
3 16 59.1 24 -56 80 24 -45.2 60 24 -60
3 16 84 24 -43.146 129 24 -20 153 24 -12.124
3 16 150 24 60 150 24 56 84 24 56
4 16 158 24 0 156 24 50 160 24 50 160 24 0
3 16 158 24 0 156 24 0 156 24 50
3 16 36 24 56 0 24 60 40 24 56
3 16 40 24 56 0 24 60 80 24 56
4 16 150 24 60 84 24 56 80 24 56 0 24 60
4 16 160 24 50 156 24 50 156 24 56 157.071 24 57.071
4 16 157.071 24 57.071 156 24 56 150 24 56 150 24 60
4 16 129 24 -20 84 24 -20 84 24 -16 136.73 24 -16
4 16 152 24 -10.392 153 24 -12.124 129 24 -20 136.73 24 -16
3 16 151 24 -8.66 152 24 -10.392 136.73 24 -16
1 16 150 24 50 6 0 0 0 -1 0 0 0 6 1-4ndis.dat
1 16 150 24 50 10 0 0 0 -1 0 0 0 10 1-8chrd.dat
1 16 150 24 50 0 0 10 0 -1 0 10 0 0 1-8chrd.dat
1 16 146 24 0 2 0 0 0 -1 0 0 0 -2 48\1-6ring5.dat
1 16 146 24 0 2 0 0 0 -1 0 0 0 -2 48\1-6ring6.dat

0 BFC INVERTNEXT
1 16 60 24 20 20 0 0 0 -20 0 0 0 36 box5.dat
0 BFC INVERTNEXT
1 16 49.55 14 -38 0 -9.55 0 10 0 0 0 0 -18 box2-5.dat
0 BFC INVERTNEXT
1 16 60 14 -32.6 0 20 0 10 0 0 0 0 12.6 box2-7.dat
4 16 59.1 24 -56 59.1 4 -56 80 4 -45.2 80 24 -45.2
3 16 59.1 4 -56 40 4 -56 80 4 -45.2
4 16 80 4 -45.2 40 4 -56 40 4 -20 80 4 -20
2 24 80 4 -45.2 80 24 -45.2
2 24 80 24 -45.2 59.1 24 -56
2 24 59.1 4 -56 80 4 -45.2
0 BFC INVERTNEXT
1 16 84 24 -20 45 0 0 0 -20 0 0 0 -23.15 tri3.dat
3 16 84 4 -43.15 84 4 -20 129 4 -20

0 BFC INVERTNEXT
1 16 110.365 14 20 0 -26.365 0 10 0 0 0 0 -36 box2-5.dat
0 BFC INVERTNEXT
1 16 146 24 0 10 0 0 0 -20 0 0 0 -10 48\1-6cylo.dat
0 BFC INVERTNEXT
1 16 150 24 50 6 0 0 0 -20 0 0 0 6 1-4cylo.dat
4 16 150 4 56 84 4 56 84 24 56 150 24 56
4 16 156 4 50 156 24 50 156 24 0 156 4 0
4 16 136.73 24 -16 136.73 4 -16 151 4 -8.66 151 24 -8.66
4 16 151 4 -8.66 136.73 4 -16 84 4 -16 156 4 0
4 16 156 4 0 84 4 -16 84 4 56 156 4 50
3 16 150 4 56 156 4 50 84 4 56
1 16 146 4 0 10 0 0 0 -1 0 0 0 -10 48\1-6chrd.dat
1 16 150 4 50 6 0 0 0 -1 0 0 0 6 1-4chrd.dat
2 24 136.73 24 -16 151 24 -8.66
2 24 136.73 4 -16 151 4 -8.66
2 24 156 4 0 156 4 50
2 24 156 24 50 156 24 0
2 24 150 24 56 84 24 56
2 24 84 4 56 150 4 56

1 16 120 5 20 -1 0 0 0 -4 0 0 0 -1 stud8.dat
1 16 140 4 54 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 100 4 54 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 100 4 -14 1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 86 4 0 0 0 2 0 19 0 -1.5 0 0 box4-1.dat
1 16 86 4 40 0 0 2 0 19 0 1.5 0 0 box4-1.dat
1 16 154 4 40 0 0 -2 0 19 0 -1.5 0 0 box4-1.dat

1 16 140 13.5 -12 0 0 1.5 -9.5 0 0 0 -1 0 rect.dat
4 16 138.5 23 -12 141.5 23 -12 141.5 23 -13.5465 138.5 23 -15.0896
4 16 138.5 23 -15.0896 138.5 4 -15.0896 138.5 4 -12 138.5 23 -12
4 16 141.5 23 -12 141.5 4 -12 141.5 4 -13.5465 141.5 23 -13.5465
2 24 138.5 23 -12 138.5 23 -15.0896
2 24 138.5 23 -15.0896 141.5 23 -13.5465
2 24 141.5 23 -13.5465 141.5 23 -12
2 24 138.5 4 -12 138.5 4 -15.0896
2 24 141.5 4 -13.5465 141.5 4 -12
2 24 141.5 4 -13.5465 141.5 23 -13.5465
2 24 138.5 4 -15.0896 138.5 23 -15.0896

1 16 154 4 0 0 0 -2 0 19 0 -1.5 0 0 box4-4a.dat
2 24 155.8752 4 -1.5 155.8752 23 -1.5
2 24 155.8752 23 -1.5 156 23 0
2 24 156 23 1.5 156 23 0
2 24 156 23 1.5 156 4 1.5

0 // Outside
1 16 150 24 50 10 0 0 0 -24 0 0 0 10 1-4cylo.dat
1 16 146 24 0 14 0 0 0 -24 0 0 0 -14 48\1-6cylo.dat
4 16 60 24 -60 153 24 -12.124 153 0 -12.124 60 0 -60
4 16 160 0 50 160 0 0 160 24 0 160 24 50
2 24 60 24 -60 153 24 -12.124
2 24 153 0 -12.124 60 0 -60
2 24 160 24 0 160 24 50
2 24 160 0 50 160 0 0
5 24 153 0 -12.124 153 24 -12.124 154.5232 0 -11.1076 60 0 -60

1 16 150 0 50 10 0 0 0 1 0 0 0 10 1-4chrd.dat
1 16 146 0 0 14 0 0 0 1 0 0 0 -14 48\1-6chrd.dat
4 16 153 0 -12.124 160 0 0 160 0 50 150 0 60
3 16 60 0 -60 153 0 -12.124 150 0 60

Status:

Official

This part has the following warnings

Number in description may need a leading space

Unofficial parents

Part Events:

Archived Part Events:
