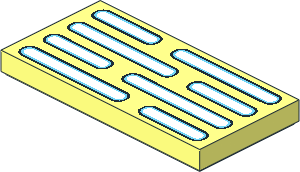

Tile 2 x 4 with White and Medium Azure SW Death Star Wall Lights Pattern
File Header:
0 Tile 2 x 4 with White and Medium Azure SW Death Star Wall Lights Pattern 0 Name: 87079p0r.dat 0 Author: Peter Grass [Evilspyre] 0 !LDRAW_ORG Unofficial_Part 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !KEYWORDS BrickLink 87079pb1570, Brickowl 238422, Brickset 114366 0 !KEYWORDS Rebrickable 87079pr9839, Set 75419
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\87079s01.dat 1 15 34 0 15 0 0 1.6 0 1 0 1.6 0 0 2-4chrd.dat 1 322 34 0 15 0 0 .8 0 1 0 .8 0 0 2-4ring2.dat 1 0 34 0 15 0 0 .8 0 1 0 .8 0 0 2-4ring3.dat 1 16 34 0 15 0 0 3.2 0 1 0 3.2 0 0 2-4ndis.dat 1 15 34 0 5 0 0 1.6 0 1 0 1.6 0 0 2-4chrd.dat 1 322 34 0 5 0 0 .8 0 1 0 .8 0 0 2-4ring2.dat 1 0 34 0 5 0 0 .8 0 1 0 .8 0 0 2-4ring3.dat 1 16 34 0 5 0 0 3.2 0 1 0 3.2 0 0 2-4ndis.dat 1 15 34 0 -5.0 0 0 1.6 0 1 0 1.6 0 0 2-4chrd.dat 1 322 34 0 -5.0 0 0 .8 0 1 0 .8 0 0 2-4ring2.dat 1 0 34 0 -5.0 0 0 .8 0 1 0 .8 0 0 2-4ring3.dat 1 16 34 0 -5.0 0 0 3.2 0 1 0 3.2 0 0 2-4ndis.dat 1 15 34 0 -15 0 0 1.6 0 1 0 1.6 0 0 2-4chrd.dat 1 322 34 0 -15 0 0 .8 0 1 0 .8 0 0 2-4ring2.dat 1 0 34 0 -15 0 0 .8 0 1 0 .8 0 0 2-4ring3.dat 1 16 34 0 -15 0 0 3.2 0 1 0 3.2 0 0 2-4ndis.dat 1 15 -14 0 -5 0 0 1.6 0 1 0 1.6 0 0 2-4chrd.dat 1 322 -14 0 -5 0 0 .8 0 1 0 .8 0 0 2-4ring2.dat 1 0 -14 0 -5 0 0 .8 0 1 0 .8 0 0 2-4ring3.dat 1 16 -14 0 -5 0 0 3.2 0 1 0 3.2 0 0 2-4ndis.dat 1 15 3.0 0 -15 0 0 1.6 0 1 0 1.6 0 0 2-4chrd.dat 1 322 3.0 0 -15 0 0 .8 0 1 0 .8 0 0 2-4ring2.dat 1 0 3.0 0 -15 0 0 .8 0 1 0 .8 0 0 2-4ring3.dat 1 16 3.0 0 -15 0 0 3.2 0 1 0 3.2 0 0 2-4ndis.dat 1 15 3.0 0 5 0 0 1.6 0 1 0 1.6 0 0 2-4chrd.dat 1 322 3.0 0 5 0 0 .8 0 1 0 .8 0 0 2-4ring2.dat 1 0 3.0 0 5 0 0 .8 0 1 0 .8 0 0 2-4ring3.dat 1 16 3.0 0 5 0 0 3.2 0 1 0 3.2 0 0 2-4ndis.dat 1 15 -3 0 -5 0 0 -1.6 0 1 0 1.6 0 0 2-4chrd.dat 1 322 -3 0 -5 0 0 -.8 0 1 0 .8 0 0 2-4ring2.dat 1 0 -3 0 -5 0 0 -.8 0 1 0 .8 0 0 2-4ring3.dat 1 16 -3 0 -5 0 0 -3.2 0 1 0 3.2 0 0 2-4ndis.dat 1 15 -34 0 5 0 0 -1.6 0 1 0 1.6 0 0 2-4chrd.dat 1 322 -34 0 5 0 0 -.8 0 1 0 .8 0 0 2-4ring2.dat 1 0 -34 0 5 0 0 -.8 0 1 0 .8 0 0 2-4ring3.dat 1 16 -34 0 5 0 0 -3.2 0 1 0 3.2 0 0 2-4ndis.dat 1 15 -34 0 -5 0 0 -1.6 0 1 0 1.6 0 0 2-4chrd.dat 1 322 -34 0 -5 0 0 -.8 0 1 0 .8 0 0 2-4ring2.dat 1 0 -34 0 -5 0 0 -.8 0 1 0 .8 0 0 2-4ring3.dat 1 16 -34 0 -5 0 0 -3.2 0 1 0 3.2 0 0 2-4ndis.dat 1 15 -34 0 -15 0 0 -1.6 0 1 0 1.6 0 0 2-4chrd.dat 1 322 -34 0 -15 0 0 -.8 0 1 0 .8 0 0 2-4ring2.dat 1 0 -34 0 -15 0 0 -.8 0 1 0 .8 0 0 2-4ring3.dat 1 16 -34 0 -15 0 0 -3.2 0 1 0 3.2 0 0 2-4ndis.dat 1 15 14 0 -15 0 0 -1.6 0 1 0 1.6 0 0 2-4chrd.dat 1 322 14 0 -15 0 0 -.8 0 1 0 .8 0 0 2-4ring2.dat 1 0 14 0 -15 0 0 -.8 0 1 0 .8 0 0 2-4ring3.dat 1 16 14 0 -15 0 0 -3.2 0 1 0 3.2 0 0 2-4ndis.dat 1 15 14 0 5 0 0 -1.6 0 1 0 1.6 0 0 2-4chrd.dat 1 322 14 0 5 0 0 -.8 0 1 0 .8 0 0 2-4ring2.dat 1 0 14 0 5 0 0 -.8 0 1 0 .8 0 0 2-4ring3.dat 1 16 14 0 5 0 0 -3.2 0 1 0 3.2 0 0 2-4ndis.dat 1 15 -3 0 15 0 0 -1.6 0 1 0 1.6 0 0 2-4chrd.dat 1 322 -3 0 15 0 0 -.8 0 1 0 .8 0 0 2-4ring2.dat 1 0 -3 0 15 0 0 -.8 0 1 0 .8 0 0 2-4ring3.dat 1 16 -3 0 15 0 0 -3.2 0 1 0 3.2 0 0 2-4ndis.dat 1 15 -14 0 15 0 0 1.6 0 1 0 1.6 0 0 2-4chrd.dat 1 322 -14 0 15 0 0 .8 0 1 0 .8 0 0 2-4ring2.dat 1 0 -14 0 15 0 0 .8 0 1 0 .8 0 0 2-4ring3.dat 1 16 -14 0 15 0 0 3.2 0 1 0 3.2 0 0 2-4ndis.dat 1 15 -34 0 15 0 0 -1.6 0 1 0 1.6 0 0 2-4chrd.dat 1 322 -34 0 15 0 0 -.8 0 1 0 .8 0 0 2-4ring2.dat 1 0 -34 0 15 0 0 -.8 0 1 0 .8 0 0 2-4ring3.dat 1 16 -34 0 15 0 0 -3.2 0 1 0 3.2 0 0 2-4ndis.dat 4 0 -14 0 17.4 -14 0 18.2 -34 0 18.2 -34 0 17.4 4 322 -14 0 16.6 -14 0 17.4 -34 0 17.4 -34 0 16.6 4 15 -14 0 13.4 -14 0 16.6 -34 0 16.6 -34 0 13.4 4 322 -14 0 12.6 -14 0 13.4 -34 0 13.4 -34 0 12.6 4 0 -14 0 11.8 -14 0 12.6 -34 0 12.6 -34 0 11.8 4 0 -3 0 18.2 -3 0 17.4 34 0 17.4 34 0 18.2 4 322 34 0 16.6 34 0 17.4 -3 0 17.4 -3 0 16.6 4 15 34 0 13.4 34 0 16.6 -3 0 16.6 -3 0 13.4 4 322 34 0 13.4 -3 0 13.4 -3 0 12.6 34 0 12.6 4 0 34 0 11.8 34 0 12.6 -3 0 12.6 -3 0 11.8 4 0 -34 0 -11.8 -34 0 -12.6 3 0 -12.6 3 0 -11.8 4 322 3 0 -13.4 3 0 -12.6 -34 0 -12.6 -34 0 -13.4 4 15 3 0 -16.6 3 0 -13.4 -34 0 -13.4 -34 0 -16.6 4 322 3 0 -17.4 3 0 -16.6 -34 0 -16.6 -34 0 -17.4 4 0 3 0 -18.2 3 0 -17.4 -34 0 -17.4 -34 0 -18.2 4 0 14 0 -11.8 14 0 -12.6 34 0 -12.6 34 0 -11.8 4 322 34 0 -13.4 34 0 -12.6 14 0 -12.6 14 0 -13.4 4 15 34 0 -16.6 34 0 -13.4 14 0 -13.4 14 0 -16.6 4 322 34 0 -17.4 34 0 -16.6 14 0 -16.6 14 0 -17.4 4 0 34 0 -18.2 34 0 -17.4 14 0 -17.4 14 0 -18.2 4 0 14 0 7.4 34 0 7.4 34 0 8.2 14 0 8.2 4 322 34 0 6.6 34 0 7.4 14 0 7.4 14 0 6.6 4 15 34 0 3.4 34 0 6.6 14 0 6.6 14 0 3.4 4 322 34 0 2.6 34 0 3.4 14 0 3.4 14 0 2.6 4 0 34 0 1.8 34 0 2.6 14 0 2.6 14 0 1.8 4 0 -34 0 8.2 -34 0 7.4 3 0 7.4 3 0 8.2 4 322 3 0 6.6 3 0 7.4 -34 0 7.4 -34 0 6.6 4 15 3 0 3.4 3 0 6.6 -34 0 6.6 -34 0 3.4 4 322 3 0 2.6 3 0 3.4 -34 0 3.4 -34 0 2.6 4 0 3 0 1.8 3 0 2.6 -34 0 2.6 -34 0 1.8 4 0 -14 0 -2.6 -14 0 -1.8 -34 0 -1.8 -34 0 -2.6 4 322 -14 0 -3.4 -14 0 -2.6 -34 0 -2.6 -34 0 -3.4 4 15 -14 0 -6.6 -14 0 -3.4 -34 0 -3.4 -34 0 -6.6 4 322 -14 0 -7.4 -14 0 -6.6 -34 0 -6.6 -34 0 -7.4 4 0 -14 0 -8.2 -14 0 -7.4 -34 0 -7.4 -34 0 -8.2 4 0 34 0 -2.6 34 0 -1.8 -3 0 -1.8 -3 0 -2.6 4 322 34 0 -3.4 34 0 -2.6 -3 0 -2.6 -3 0 -3.4 4 15 34 0 -6.6 34 0 -3.4 -3 0 -3.4 -3 0 -6.6 4 322 34 0 -7.4 34 0 -6.6 -3 0 -6.6 -3 0 -7.4 4 0 34 0 -8.2 34 0 -7.4 -3 0 -7.4 -3 0 -8.2 4 16 -37.2 0 11.8 -37.2 0 8.2 -34 0 8.2 -34 0 11.8 4 16 -37.2 0 -1.8 -34 0 -1.8 -34 0 1.8 -37.2 0 1.8 4 16 -37.2 0 -8.2 -37.2 0 -11.8 -34 0 -11.8 -34 0 -8.2 4 16 0 0 -20 -34 0 -18.2 -37.2 0 -18.2 -40 0 -20 3 16 -37.2 0 -18.2 -37.2 0 -15 -40 0 -20 3 16 -37.2 0 -15 -37.2 0 -11.8 -40 0 -20 4 16 10.8 0 -15 10.8 0 -11.8 6.2 0 -11.8 6.2 0 -15 4 16 10.8 0 -18.2 10.8 0 -15 6.2 0 -15 6.2 0 -18.2 4 16 -6.2 0 11.8 3 0 8.2 6.2 0 8.2 -3 0 11.8 3 16 34 0 11.8 14 0 8.2 34 0 8.2 4 16 6.2 0 8.2 6.2 0 5 10.8 0 5 10.8 0 8.2 4 16 10.8 0 1.8 10.8 0 5 6.2 0 5 6.2 0 1.8 3 16 -34 0 -1.8 -14 0 -1.8 -34 0 1.8 3 16 34 0 -8.2 14 0 -11.8 34 0 -11.8 4 16 -6.2 0 -8.2 3 0 -11.8 6.2 0 -11.8 -3 0 -8.2 4 16 6.2 0 1.8 3 0 1.8 -6.2 0 -1.8 -3 0 -1.8 3 16 14 0 1.8 34 0 -1.8 34 0 1.8 3 16 -34 0 11.8 -34 0 8.2 -14 0 11.8 3 16 6.2 0 8.2 10.8 0 8.2 -3 0 11.8 4 16 -3 0 11.8 10.8 0 8.2 14 0 8.2 34 0 11.8 3 16 6.2 0 1.8 -3 0 -1.8 10.8 0 1.8 4 16 14 0 1.8 10.8 0 1.8 -3 0 -1.8 34 0 -1.8 3 16 6.2 0 -11.8 10.8 0 -11.8 -3 0 -8.2 4 16 -3 0 -8.2 10.8 0 -11.8 14 0 -11.8 34 0 -8.2 3 16 -37.2 0 -8.2 -37.2 0 -5 -40 0 -20 3 16 -40 0 -20 -37.2 0 -5 -37.2 0 -1.8 3 16 -37.2 0 -8.2 -40 0 -20 -37.2 0 -11.8 4 16 -34 0 18.2 -14 0 18.2 0 0 20 -40 0 20 3 16 -6.2 0 18.2 -3 0 18.2 0 0 20 4 16 40 0 20 0 0 20 -3 0 18.2 34 0 18.2 3 16 10.8 0 -18.2 6.2 0 -18.2 0 0 -20 3 16 3 0 -18.2 0 0 -20 6.2 0 -18.2 3 16 0 0 -20 3 0 -18.2 -34 0 -18.2 3 16 14 0 -18.2 10.8 0 -18.2 0 0 -20 4 16 34 0 -18.2 14 0 -18.2 0 0 -20 40 0 -20 3 16 34 0 -18.2 40 0 -20 37.2 0 -18.2 3 16 37.2 0 -18.2 40 0 -20 37.2 0 -15 3 16 37.2 0 -15 40 0 -20 37.2 0 -11.8 3 16 37.2 0 -11.8 40 0 -20 37.2 0 -8.2 3 16 -37.2 0 5 -37.2 0 8.2 -40 0 20 3 16 -40 0 20 -37.2 0 8.2 -37.2 0 11.8 3 16 -37.2 0 11.8 -37.2 0 15 -40 0 20 3 16 -40 0 20 -37.2 0 15 -37.2 0 18.2 3 16 -37.2 0 18.2 -34 0 18.2 -40 0 20 4 16 -37.2 0 5 -40 0 20 -40 0 -20 -37.2 0 1.8 3 16 -40 0 -20 -37.2 0 -1.8 -37.2 0 1.8 3 16 -14 0 18.2 -10.8 0 18.2 0 0 20 3 16 0 0 20 -10.8 0 18.2 -6.2 0 18.2 4 16 -10.8 0 18.2 -10.8 0 15 -6.2 0 15 -6.2 0 18.2 4 16 -10.8 0 15 -10.8 0 11.8 -6.2 0 11.8 -6.2 0 15 4 16 -6.2 0 -5 -6.2 0 -1.8 -10.8 0 -1.8 -10.8 0 -5 4 16 -6.2 0 -8.2 -6.2 0 -5 -10.8 0 -5 -10.8 0 -8.2 4 16 34 0 11.8 34 0 8.2 37.2 0 8.2 37.2 0 11.8 4 16 34 0 1.8 34 0 -1.8 37.2 0 -1.8 37.2 0 1.8 4 16 34 0 -8.2 34 0 -11.8 37.2 0 -11.8 37.2 0 -8.2 4 16 -34 0 -11.8 3 0 -11.8 -6.2 0 -8.2 -10.8 0 -8.2 4 16 -10.8 0 -1.8 -6.2 0 -1.8 3 0 1.8 -34 0 1.8 3 16 -34 0 1.8 -14 0 -1.8 -10.8 0 -1.8 3 16 -10.8 0 11.8 -14 0 11.8 -34 0 8.2 4 16 -6.2 0 11.8 -10.8 0 11.8 -34 0 8.2 3 0 8.2 3 16 40 0 20 34 0 18.2 37.2 0 18.2 3 16 37.2 0 18.2 37.2 0 15 40 0 20 3 16 40 0 20 37.2 0 15 37.2 0 11.8 3 16 37.2 0 11.8 37.2 0 8.2 40 0 20 3 16 37.2 0 -5 37.2 0 -8.2 40 0 -20 3 16 37.2 0 -1.8 37.2 0 -5 40 0 -20 3 16 37.2 0 8.2 37.2 0 5 40 0 20 3 16 37.2 0 5 37.2 0 1.8 40 0 20 4 16 40 0 20 37.2 0 1.8 37.2 0 -1.8 40 0 -20 3 16 -14 0 -8.2 -34 0 -11.8 -10.8 0 -8.2 3 16 -34 0 -11.8 -14 0 -8.2 -34 0 -8.2
Status:
Not releaseable Needs 2 More Votes (N) Needs 2 More Votes (N)
This part has the following errors
  • Numbers cannot have trailing zeros
    Line text: 1 15 34 0 -5.0 0 0 1.6 0 1 0 1.6 0 0 2-4chrd.dat
  • Numbers cannot have trailing zeros
    Line text: 1 322 34 0 -5.0 0 0 .8 0 1 0 .8 0 0 2-4ring2.dat
  • Numbers cannot have trailing zeros
    Line text: 1 0 34 0 -5.0 0 0 .8 0 1 0 .8 0 0 2-4ring3.dat
  • Numbers cannot have trailing zeros
    Line text: 1 16 34 0 -5.0 0 0 3.2 0 1 0 3.2 0 0 2-4ndis.dat
  • Numbers cannot have trailing zeros
    Line text: 1 15 3.0 0 -15 0 0 1.6 0 1 0 1.6 0 0 2-4chrd.dat
  • Numbers cannot have trailing zeros
    Line text: 1 322 3.0 0 -15 0 0 .8 0 1 0 .8 0 0 2-4ring2.dat
  • Numbers cannot have trailing zeros
    Line text: 1 0 3.0 0 -15 0 0 .8 0 1 0 .8 0 0 2-4ring3.dat
  • Numbers cannot have trailing zeros
    Line text: 1 16 3.0 0 -15 0 0 3.2 0 1 0 3.2 0 0 2-4ndis.dat
  • Numbers cannot have trailing zeros
    Line text: 1 15 3.0 0 5 0 0 1.6 0 1 0 1.6 0 0 2-4chrd.dat
  • Numbers cannot have trailing zeros
    Line text: 1 322 3.0 0 5 0 0 .8 0 1 0 .8 0 0 2-4ring2.dat
  • Numbers cannot have trailing zeros
    Line text: 1 0 3.0 0 5 0 0 .8 0 1 0 .8 0 0 2-4ring3.dat
  • Numbers cannot have trailing zeros
    Line text: 1 16 3.0 0 5 0 0 3.2 0 1 0 3.2 0 0 2-4ndis.dat
Current Votes:

None

Official parents and subparts
Part Events:
Peter Grass [Evilspyre]
Part Author
initially submitted the part.
2025-10-07 06:06:02
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-10-07 10:17:09
would this work? (move it to the ends and connect it)
1 15 0 0 0 0 0 1.6 0 1 0 1.6 0 0 2-4chrd.dat
1 322 0 0 0 0 0 0.8 0 1 0 0.8 0 0 2-4ring2.dat
1 0 0 0 0 0 0 0.8 0 1 0 0.8 0 0 2-4ring3.dat
1 16 0 0 0 0 0 3.2 0 1 0 3.2 0 0 2-4ndis.dat
Peter Grass [Evilspyre]
Part Author
made the following comment.
2025-10-07 12:00:41
Thanks that will make it much more tidy, I will give it a go.
Peter Grass [Evilspyre]
Part Author
submitted a new version of the part.
2025-11-07 08:15:21
Rene Rechthaler [Blechtaler]
Part Header Editor
posted a vote of Hold.
2025-11-07 09:43:29
better, but needs still work:
-some y-values arent 0 (hold), example: 1 16 14 -.01 -14.81 0 0 -3.2 0 1 0 3.2 0 0 2-4ndis.dat
-4 16 -5.7 0 -1.83 -34.65 0 1.58 -34.65 0 -1.83 -13.5 0 -1.84 casuses t.-junk gaps (hold)
-why the different z-values? i find 4.78/-5.03/-5.04 and 14.6/-14.81
-> move them to 4.9/14.7 or 5/15?
-same for the inner x-ends: -13.5/14 and -2.5/3.02
-there are some internal flat vertices which could be merged (for example -10.53 0 9.15, -11.9 0 10.3, -38.48 0 4.77)
Peter Grass [Evilspyre]
Part Author
made the following comment.
2025-11-07 11:03:16
Ah OK, I was just trying to line them up to where they were roughly on the original is all, I will make them more uniform. Not sure why the Y values where there I probably just pressed something accidentally so I will fix that too.
Peter Grass [Evilspyre]
Part Author
submitted a new version of the part.
2025-11-09 16:08:24
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-11-09 16:34:49
much better, but you still have the internal vertices
-38.17 0 -4.96
-38.55 0 5
39.15 0 -5
39.09 0 4.78
8.46 0 -19.03
-7.88 0 19.41
either merge them to the nearest vertex or the center of the outer part edgelines (+-40 0 0 and 0 0 +-20)
Peter Grass [Evilspyre]
Part Author
made the following comment.
2025-11-09 16:43:38
I was trying to avoid having any long narrow triangles which is why they are there.
Peter Grass [Evilspyre]
Part Author
made the following comment.
2025-11-09 17:44:35

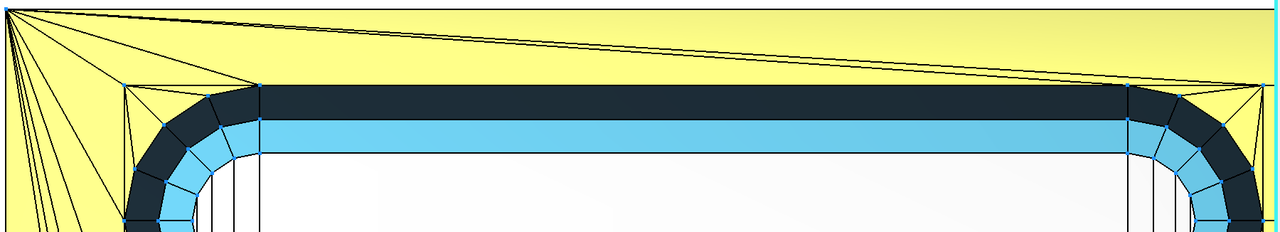

For example if I change it then you get these horrible small triangles. The smaller sides of the part I can get away with not having them but the longer edges you can't connect all the points without them from what I can see.
https://i.postimg.cc/xCPHLQ6X/Screenshot-2025-11-09-174145.png
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-11-09 18:31:15
as of now, we also get thin triangles from the edgeline to the vertex, thats why we are allowed to use the center vertex of the outer side lines...
(if still thin, cut that again to quarters, but try to keep it on the edgeline)
also try flipping the quads/triangles for a better triangulation
Peter Grass [Evilspyre]
Part Author
submitted a new version of the part.
2025-11-10 07:45:52
Magnus Forsberg [MagFors]
Part Library Admin
edited the part header.
2025-12-23 22:24:52
Header Edits

description:
Tile 2 x 4 with White and Medium Azure SW Death Star Wall Lights Pattern
to
Tile 2 x 4 with White and Medium Azure SW Death Star Wall Lights Pattern

Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-12-23 23:02:33
why is the pattern not centered/symmetric (lengthwise)? ends are at +33/-34 and +14/-13.5
Peter Grass [Evilspyre]
Part Author
submitted a new version of the part.
2025-12-24 01:25:45
I thought I fixed all that. Here is a new version which should be OK now.
