Unofficial File parts/4580.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

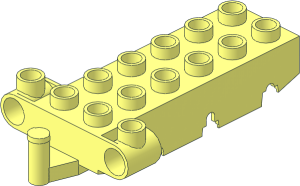

~Duplo Train Steam Engine 6 x 4 - Top
0 ~Duplo Train Steam Engine  6 x  4 - Top
0 Name: 4580.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Duplo
Show file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4580s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\4580s01.dat

0 // Hook End
1 16 0 0 -150 1 0 0 0 1 0 0 0 1 duplo_hook.dat
4 16 -40 0 -120 -17 32 -120 17 32 -120 40 0 -120
3 16 17 32 -120 -17 32 -120 0 32 -141
2 24 17 32 -120 -17 32 -120
4 16 13 46 -116 1.5 46 -120 -1.5 46 -120 -13 46 -116
1 16 0 36 -130.5 0 0 1.5 0 10 0 10.5 0 0 box3u4p.dat

0 BFC INVERTNEXT
1 16 0 46 -96 13 0 0 0 -42 0 0 0 -20 box5.dat
4 16 17 46 -72 13 46 -76 -13 46 -76 -17 46 -72
4 16 36 4 -72 17 19.361702 -72 -17 19.361702 -72 -36 4 -72
4 16 -17 46 -72 -17 19.361702 -72 17 19.361702 -72 17 46 -72
4 16 36 4 -72 -36 4 -72 -18.773 4 68.685 18.773 4 68.685
4 16 18.773 4 68.685 -18.773 4 68.685 -15 4 70 15 4 70
4 16 15 4 70 -15 4 70 -31 4 116 31 4 116
1 16 0 9 118 31 0 0 0 5 0 0 0 -2 box2-5.dat
2 24 -36 4 -72 36 4 -72
2 24 17 46 -72 -17 46 -72

1 16 0 4 30 1 0 0 0 1 0 0 0 1 s\4580s03.dat
1 16 0 4 -30 1 0 0 0 1 0 0 0 1 s\4580s03.dat

1 16 0 4 54.5 1 0 0 0 1 0 0 0 1 s\4580s04.dat

0 // Top
4 16 -40 0 -120 40 0 -120 40 0 -116 -40 0 -116
4 16 40 0 -116 40 0 -84 -40 0 -84 -40 0 -116
4 16 40 0 -80 -40 0 -80 -40 0 -84 40 0 -84
4 16 40 0 -80 40 0 120 -40 0 120 -40 0 -80
4 16 31 14 120 -31 14 120 -40 0 120 40 0 120
1 16 0 0 20 40 0 0 0 1 0 0 0 100 recte3.dat
2 24 -40 0 -120 40 0 -120

1 16 20 0 0 0 0 1 0 2.75 0 -1 0 0 stug7-1x6.dat
1 16 -20 0 0 0 0 1 0 2.75 0 -1 0 0 stug7-1x6.dat
1 16 60 0 -100 0 0 1 0 2.75 0 -1 0 0 stud7a.dat
1 16 -60 0 -100 0 0 1 0 2.75 0 -1 0 0 stud7a.dat

Status

Not releaseable Needs 2 More Votes (N) Needs 2 More Votes (N)

Current Votes:

No recorded votes
This part has the following errors
  • Decimal precision exceeds 5 significant places
    Line 25: 4 16 36 4 -72 17 19.361702 -72 -17 19.361702 -72 -36 4 -72
    Line 26: 4 16 -17 46 -72 -17 19.361702 -72 17 19.361702 -72 17 46 -72
This part has the following automated holds from the Parts Tracker

Part Dependencies

Official parents and subparts

Part Events

Gerald Lasser [GeraldLasser]
Part Library Admin
initially submitted the part.
2025-10-09 07:36:16
Peter Blomberg [WUIt]
Part Header Editor
made the following comment.
2025-10-18 11:39:53
Please switch hook to 4883s01.dat
