Unofficial File parts/s/4551s01.dat
File Header:

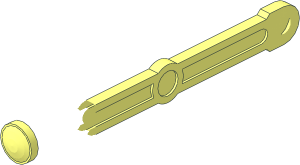

0 ~Duplo Train Steam Engine Push Rod - Common Geometry
0 Name: s\4551s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // Pin Side
1 16 -1 0 0 1 0 0 0 1 0 0 0 1 s\4551s02.dat
1 16 -1 0 0 1 0 0 0 -1 0 0 0 1 s\4551s02.dat
1 16 8 0 0 -1 0 0 0 1 0 0 0 1 s\4551s02.dat
1 16 8 0 0 -1 0 0 0 -1 0 0 0 1 s\4551s02.dat
3 16 0 0 -12.09895 0 11.5 -10.5 0 4.40105 -12.09895
3 16 0 11.5 -10.5 0 0 -12.09895 0 -11.5 -10.5
3 16 0 -11.5 -10.5 0 0 -12.09895 0 -4.40105 -12.09895
4 16 0 11.5 -10.5 0 -11.5 -10.5 0 -11.5 0 0 11.5 0
1 16 0 0 0 0 1 0 -11.5 0 0 0 0 11.5 2-4chrd.dat
1 16 0 0 0 0 7 0 -11.5 0 0 0 0 11.5 2-4cylo.dat
1 16 7 0 0 0 -1 0 -11.5 0 0 0 0 11.5 1-4chrd.dat
1 16 7 0 0 0 -1 0 11.5 0 0 0 0 11.5 1-4chrd.dat
4 16 0 9 -13 0 11.5 -10.5 7 11.5 -10.5 7 9 -13
1 16 3.5 11.5 -5.25 3.5 0 0 0 -1 0 0 0 -5.25 rect3.dat
4 16 7 -11.5 -10.5 0 -11.5 -10.5 0 -9 -13 7 -9 -13
1 16 3.5 -11.5 -5.25 -3.5 0 0 0 1 0 0 0 -5.25 rect3.dat
2 24 7 -9 -13 7 -11.5 -10.5
2 24 0 -9 -13 0 -11.5 -10.5
2 24 7 9 -13 7 11.5 -10.5
2 24 7 9 -13 0 9 -13
2 24 0 9 -13 0 11.5 -10.5
2 24 0 -9 -13 7 -9 -13
1 16 7 0 0 0 -1 0 5 0 0 0 0 5 4-4ndis.dat
3 16 7 -11.5 -10.5 7 -4.40105 -12.09895 7 -5 -5
3 16 7 5 -5 7 4.40105 -12.09895 7 11.5 -10.5
3 16 7 11.5 0 7 5 -5 7 11.5 -10.5
3 16 7 0 5 7 5 5 7 0 11.5
3 16 7 0 5 7 0 11.5 7 -5 5
3 16 7 -5 5 7 0 11.5 7 -11.5 0
3 16 7 -5 5 7 -11.5 0 7 -5 0
4 16 7 -11.5 -10.5 7 -5 -5 7 -5 0 7 -11.5 0
4 16 7 0 -5 7 -5 -5 7 -4.40105 -12.09895 7 0 -12.09895
4 16 7 0 -5 7 0 -12.09895 7 4.40105 -12.09895 7 5 -5
3 16 7 5 0 7 5 -5 7 11.5 0
3 16 7 5 0 7 11.5 0 7 5 5
3 16 7 5 5 7 11.5 0 7 0 11.5
0 // Rod
4 16 7 9 -78.8574 0 9 -78.85744 0 9 -13 7 9 -13
4 16 0 -9 -13 0 -9 -78.85744 7 -9 -78.8574 7 -9 -13
4 16 0 9 -139.5 0 9 -93.14256 7 9 -93.14256 7 9 -139.5
4 16 7 -9 -93.14256 0 -9 -93.14256 0 -9 -139.5 7 -9 -139.5
2 24 7 9 -93.14256 0 9 -93.1426
2 24 0 9 -78.8574 7 9 -78.8574
2 24 7 -9 -78.8574 0 -9 -78.8574
2 24 0 -9 -93.1426 7 -9 -93.14256
0 // Centre
1 16 0 0 -86 0 7 0 -11.5 0 0 0 0 11.5 48\5-48cylo.dat
1 16 0 0 -86 0 7 0 -11.5 0 0 0 0 -11.5 48\5-48cylo.dat
1 16 0 0 -86 0 7 0 11.5 0 0 0 0 11.5 48\5-48cylo.dat
1 16 0 0 -86 0 7 0 11.5 0 0 0 0 -11.5 48\5-48cylo.dat
4 16 0 -9.1241 -78.9988 7 -9.1241 -78.9988 7 -9 -78.8574 0 -9 -78.8574
4 16 7 9 -93.14256 0 9 -93.1426 0 9.1241 -93.0012 7 9.1241 -93.0012
4 16 0 9 -78.8574 7 9 -78.8574 7 9.1241 -78.9988 0 9.1241 -78.9988
4 16 7 -9 -93.14256 7 -9.1241 -93.0012 0 -9.1241 -93.0012 0 -9 -93.1426
5 24 7 -9.1241 -78.9988 0 -9.1241 -78.9988 0 -9.959 -80.25 0 -9 -78.85744
5 24 7 -9.1241 -93.0012 0 -9.1241 -93.0012 7 -9.959 -91.75 7 -9 -93.1426
5 24 7 9.1241 -78.9988 0 9.1241 -78.9988 7 9 -78.85744 7 9.959 -80.25
5 24 7 9.1241 -93.0012 0 9.1241 -93.0012 0 9 -93.1426 0 9.959 -91.75
0 // Piston
1 16 -4.5 0 -182 0 0 -11.5 -11.5 0 0 0 -5 0 4-4cylc.dat
1 16 -4.5 0 -187 0 0 10.35 10.35 0 0 0 6 0 bump5000.dat
1 16 -4.5 0 -187 0 0 -1.15 -1.15 0 0 0 1 0 4-4ring9.dat
