Unofficial File parts/4564.dat
Part Attributes:
File Header:

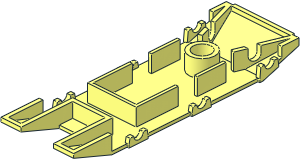

0 ~Duplo Train Steam Engine 6 x 4 - Bottom
0 Name: 4564.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4564s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\4564s01.dat
4 16 38 50 -62 17 50 -78 -17 50 -78 -38 50 -62
4 16 38 50 -62 -38 50 -62 -38 50 -42 38 50 -42
4 16 38 50 4 38 50 -42 -38 50 -42 -38 50 4
4 16 38 50 4 -38 50 4 -38 50 24 38 50 24
4 16 -38 50 24 -38 50 75 38 50 75 38 50 24
4 16 -31 36.6667 118 -31 36 120 31 36 120 31 36.6667 118
4 16 40 50 78 38 50 75 -38 50 75 -40 50 78
4 16 38 44.3929 94.8214 40 50 78 -40 50 78 -38 44.3929 94.8214
4 16 38 44.3929 94.8214 -38 44.3929 94.8214 -31 36.6667 118 31 36.6667 118
2 24 40 50 78 -40 50 78
0 // Hook End
2 24 17 50 -78 -17 50 -78
4 16 17 47 -78 -17 47 -78 -17 50 -78 17 50 -78
0 BFC INVERTNEXT
1 16 0 39.8 -71 17 0 0 0 7.2 0 0 0 7 box2-5.dat
4 16 -17 32.6 -64 17 32.6 -64 21 32.6 -60 -21 32.6 -60
1 16 0 39.8 -60 0 0 -21 7.2 0 0 0 -1 0 rect.dat
0 // Centre
4 16 36 47 24 36 47 75 -36 47 75 -36 47 24
4 16 36 47 24 -36 47 24 -36 47 4 36 47 4
4 16 36 47 -42 36 47 4 -36 47 4 -36 47 -42
4 16 36 47 75 36 47 77.51317 -36 47 77.51317 -36 47 75
4 16 -21 47 -60 21 47 -60 36 47 -42 -36 47 -42
0 BFC INVERTNEXT
1 16 0 38.5 4 0 0 22.5 8.5 0 0 0 -41 0 box3u2p.dat
1 16 0 38.5 4 0 0 25.5 8.5 0 0 0 -44 0 box3u2p.dat
4 16 -25.5 30 -40 25.5 30 -40 22.5 30 -37 -22.5 30 -37
1 16 0 47 54.5 13 0 0 0 -17 0 0 0 13 4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 47 54.5 9 0 0 0 -17 0 0 0 9 4-4cylo.dat
1 16 0 30 54.5 3 0 0 0 3 0 0 0 3 4-4ring3.dat
1 16 0 30 54.5 1 0 0 0 3 0 0 0 1 4-4ring12.dat
0 // Hitch End
4 16 -36 41.3435 94.4826 -36 47 77.5132 36 47 77.5132 36 41.3435 94.4826
4 16 -36 41.3435 94.4826 36 41.3435 94.4826 34 39.5044 100 -34 39.5044 100
4 16 -34 39.5044 100 34 39.5044 100 31 34.1711 116 -31 34.1711 116
4 16 31 30 120 31 36 120 -31 36 120 -31 30 120
4 16 31 30 118 31 30 120 -31 30 120 -31 30 118
4 16 31 34.17109 116 31 30 116 -31 30 116 -31 34.17109 116
4 16 31 30 118 -31 30 118 -31 30 116 31 30 116
2 24 31 34.17109 116 -31 34.17109 116
2 24 31 30 120 -31 30 120
2 24 31 30 116 -31 30 116
2 24 -36 47 77.51317 36 47 77.51317
2 24 -31 36 120 31 36 120
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
