Unofficial File parts/5649.dat
Part Attributes:
File Header:

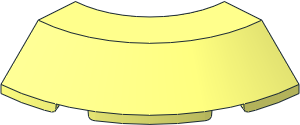

0 Brick 4 x 4 Corner Round with Slope 45 Chamfer
0 Name: 5649.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-10-09 {LEGO Instructions App} Original part shape
0 !HISTORY 2025-10-09 [Philo] File preparation for LDraw Parts Tracker
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\5649s01.dat
1 16 0 0 0 0 0 -1 0 1 0 -1 0 0 s\5649s01.dat
1 16 0 20 0 31.73413 0 -24.35046 0 -1 0 -24.35046 0 -31.73413 48\1-24tndis.dat
3 16 24.3501 20 -31.7329 25.4322 20 -32.5633 26.2552 20 -35.1963
4 16 29.013 20 -33.0829 26.2552 20 -35.1963 25.4322 20 -32.5633 31.1124 20 -31.1124
4 16 33.0829 20 -29.013 31.1124 20 -31.1124 25.4322 20 -32.5633 31.7341 20 -24.3505
3 16 31.7341 20 -24.3505 35.1963 20 -26.2552 33.0829 20 -29.013
5 24 31.1124 4 -31.1124 31.1124 20 -31.1124 29.013 20 -33.0829 33.0829 20 -29.013
5 24 52.9072 20 -52.9072 41.0118 4 -41.0118 55.9002 20 -49.4981 49.4981 20 -55.9002
5 24 54.2426 24 -54.2426 54.2426 20 -54.2426 52.2962 20 -55.5434 55.5434 20 -52.2962
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
Work in progress.
2025-10-15 12:37:47
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
