Unofficial File parts/47314.dat
Part Attributes:
File Header:

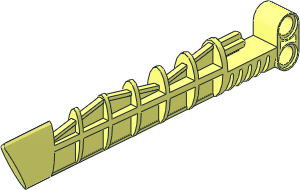

0 Constraction Weapon Aero Slicer
0 Name: 47314.dat
0 Author: Chris Dee [cwdee]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS bionicle, Exo-Force, Matau, Technic, Toa Metru
0 !HISTORY 2014-12-23 [PTadmin] Official Update 2014-02
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
0 !HISTORY 2025-10-12 [MagFors] Shaped axleend
Show contents
0 // Non z-sym
0 // .. Axle area
1 16 0 0 0 1 0 0 0 0 1 0 -1 0 axleend20.dat
1 16 0 10 20.5 0 0 10 0 1 0 -20.5 0 0 rect.dat
1 16 0 10 0 10 0 0 0 0 -19 0 -1 0 2-4disc.dat
1 16 0 10 0 10 0 0 0 0 -19 0 -1 0 2-4edge.dat
0 // .. Beam 2
1 16 -10 0 50 0 1 0 0 0 1 1 0 0 4-4ring8.dat
1 16 10 0 50 0 -1 0 0 0 1 -1 0 0 4-4ring8.dat
1 16 10 0 50 0 -1 0 0 0 1 -1 0 0 peghole.dat
1 16 -10 0 50 0 1 0 0 0 1 -1 0 0 peghole.dat
0 BFC INVERTNEXT
1 16 8 0 50 0 -16 0 0 0 6 -6 0 0 4-4cyli.dat
1 16 10 0 50 0 1 0 0 0 -9 -9 0 0 2-4edge.dat
1 16 -10 0 50 0 1 0 0 0 -9 -9 0 0 2-4edge.dat
1 16 10 0 50 0 -20 0 0 0 -9 -9 0 0 2-4cyli.dat
1 16 10 10 50 0 -8 0 0 0 1 -1 0 0 npeghol2.dat
1 16 -10 10 50 0 8 0 0 0 1 -1 0 0 npeghol2.dat
1 16 0 10 59 0 0 10 -10 0 0 0 -1 0 rect2p.dat
1 16 0 5 41 0 0 10 -5 0 0 0 1 0 rect2p.dat
1 16 -10 20 50 0 1 0 1 0 0 0 0 -1 4-4ring8.dat
1 16 10 20 50 0 -1 0 1 0 0 0 0 1 4-4ring8.dat
1 16 10 20 50 0 -1 0 0 0 1 -1 0 0 peghole.dat
1 16 -10 20 50 0 1 0 0 0 1 -1 0 0 peghole.dat
0 BFC INVERTNEXT
1 16 8 20 50 0 -16 0 0 0 6 -6 0 0 4-4cyli.dat
1 16 10 20 50 0 1 0 0 0 9 9 0 0 2-4edge.dat
1 16 -10 20 50 0 1 0 0 0 9 9 0 0 2-4edge.dat
1 16 10 20 50 0 -20 0 0 0 9 9 0 0 1-4cyli.dat
5 24 0 29 -23 0 29 -4 -2 28.164 -23 2 28.164 -23
5 24 0 29 -46 0 29 -26 -2 28.065 -46 2 28.065 -46
5 24 0 29 -69 0 29 -49 -2 27.939 -69 2 27.939 -69
5 24 0 29 -92 0 29 -72 -2 27.775 -92 2 27.775 -92
5 24 0 29 -115 0 29 -95 -1.993 27.554 -115 1.993 27.554 -115
5 24 0 29 -138 0 29 -118 -1.626 27.554 -138 1.626 27.554 -138
2 24 -10 10 41 -10 20 41
2 24 10 10 41 10 20 41
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\47314s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\47314s01.dat
0 // ... non-z-sym
4 16 2.416 -3.435 -175.071 1.663 -6.235 -176.545 -1.663 -6.235 -176.545 -2.416 -3.435 -175.071
3 16 2.416 -3.435 -175.071 -2.416 -3.435 -175.071 0 10 -168
4 16 1.663 -6.235 -176.545 1.461 -7 -176.697 -1.461 -7 -176.697 -1.663 -6.235 -176.545
4 16 -1.336 -7.487 -176.6 -1.461 -7 -176.697 1.461 -7 -176.697 1.336 -7.487 -176.6
4 16 1.336 -7.487 -176.6 1.313 -7.554 -176.587 -1.313 -7.554 -176.587 -1.336 -7.487 -176.6
4 16 1.313 -7.554 -176.587 1.124 -7.765 -176.545 -1.124 -7.765 -176.545 -1.313 -7.554 -176.587
4 16 1.124 -7.765 -176.545 .543 -8.414 -176.111 -.543 -8.414 -176.111 -1.124 -7.765 -176.545
4 16 .543 -8.414 -176.111 .157 -8.848 -175.463 -.157 -8.848 -175.463 -.543 -8.414 -176.111
4 16 .157 -8.848 -175.463 .114 -8.899 -175.206 -.114 -8.899 -175.206 -.157 -8.848 -175.463
3 16 0 -9 -174.697 -.114 -8.899 -175.206 .114 -8.899 -175.206
5 24 -.157 -8.848 -175.463 .157 -8.848 -175.463 -.114 -8.899 -175.206 -.543 -8.414 -176.111
5 24 -.543 -8.414 -176.111 .543 -8.414 -176.111 -.157 -8.848 -175.463 -1.124 -7.765 -176.545
5 24 -1.124 -7.765 -176.545 1.124 -7.765 -176.545 -1.313 -7.554 -176.587 -.543 -8.414 -176.111
5 24 -1.313 -7.554 -176.587 1.313 -7.554 -176.587 -1.124 -7.765 -176.545 -1.336 -7.487 -176.6
5 24 -1.336 -7.487 -176.6 1.336 -7.487 -176.6 -1.313 -7.554 -176.587 -1.461 -7 -176.697
5 24 -1.461 -7 -176.697 1.461 -7 -176.697 -1.336 -7.487 -176.6 -1.663 -6.235 -176.545
5 24 -1.663 -6.235 -176.545 1.663 -6.235 -176.545 -1.461 -7 -176.697 -2.416 -3.435 -175.071
