Unofficial File parts/31302.dat
Part Attributes:
File Header:

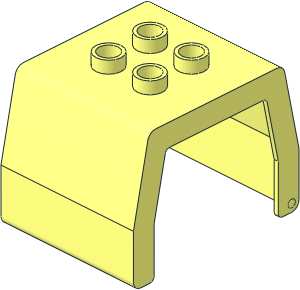

0 Duplo Train Passenger Car Canopy
0 Name: 31302.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 -112.5 -73 1 0 0 0 2.75 0 0 0 1 stug7-2x2.dat
1 16 0 31.5 -73 1 0 0 0 1 0 0 0 1 s\31302s01.dat
1 16 0 31.5 -73 -1 0 0 0 1 0 0 0 -1 s\31302s01.dat
1 16 -64 0 0 0 2 0 3.5 0 0 0 0 3.5 bump5000.dat
1 16 64 0 0 0 -2 0 3.5 0 0 0 0 3.5 bump5000.dat
1 16 -64 0 0 0 1 0 3.5 0 0 0 0 3.5 4-4ndis.dat
1 16 64 0 0 0 -1 0 3.5 0 0 0 0 3.5 4-4ndis.dat
4 16 -64 4.9497 4.9497 -64 3.5 3.5 -64 0 3.5 -64 0 7
4 16 -64 -40.5 7 -64 0 7 -64 0 3.5 -64 -3.5 3.5
3 16 -64 -3.5 0 -64 -40.5 7 -64 -3.5 3.5
4 16 -64 7 -9 -64 3 -13 -64 -3.5 -3.5 -64 0 -3.5
3 16 -64 0 -3.5 -64 3.5 -3.5 -64 7 -9
3 16 -64 -40.5 7 -64 -3.5 -3.5 -64 3 -13
3 16 -64 -40.5 7 -64 -3.5 0 -64 -3.5 -3.5
4 16 -64 4.9497 4.9497 -64 7 0 -64 3.5 0 -64 3.5 3.5
4 16 -64 3.5 0 -64 7 0 -64 7 -9 -64 3.5 -3.5
4 16 -64 3 -133 -64 7 -137 -64 7 -146 -64 4.9497 -150.9497
4 16 -64 3 -133 -64 4.9497 -150.9497 -64 0 -153 -64 -40.5 -153
4 16 64 0 3.5 64 3.5 3.5 64 4.9497 4.9497 64 0 7
4 16 64 0 3.5 64 0 7 64 -40.5 7 64 -3.5 3.5
3 16 64 -40.5 7 64 -3.5 0 64 -3.5 3.5
4 16 64 -3.5 -3.5 64 3 -13 64 7 -9 64 0 -3.5
3 16 64 3.5 -3.5 64 0 -3.5 64 7 -9
3 16 64 -3.5 -3.5 64 -40.5 7 64 3 -13
3 16 64 -3.5 0 64 -40.5 7 64 -3.5 -3.5
4 16 64 3.5 0 64 7 0 64 4.9497 4.9497 64 3.5 3.5
4 16 64 7 -9 64 7 0 64 3.5 0 64 3.5 -3.5
4 16 64 7 -146 64 7 -137 64 3 -133 64 4.9497 -150.9497
4 16 64 0 -153 64 4.9497 -150.9497 64 3 -133 64 -40.5 -153
5 13 -64 -107.5616 -7.1139 64 -107.5616 -7.1139 -64 -110.1568 -8.8483 -64 -40.5 7
5 13 -64 -107.5616 -138.8861 64 -107.5616 -138.8861 64 -110.1568 -137.1517 64 -40.5 -153
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2025-10-26 13:48:21
2025-10-26 13:49:15
2025-10-26 17:21:25
The pivot point overrules the studs.
The pivot point should be indicated by a help line if the origin is somewhere else.
31301 would need help lines to describe placement of open and closed canopies. IMHO origin at pivot point.
The pivot point should be indicated by a help line if the origin is somewhere else.
31301 would need help lines to describe placement of open and closed canopies. IMHO origin at pivot point.
2025-10-26 23:20:42
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
- Pivot point
- Studs
- or like it fits its parent 31301 (right now)
