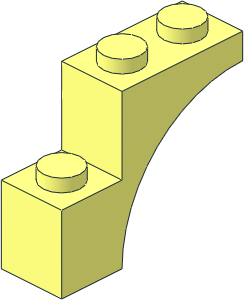

0 Arch 1 x 3 x 2
0 Name: 5850.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 // Arch
1 16 -10 48 50 0 1 0 -40 0 0 0 0 -40 48\1-4ndis.dat
1 16 -7 48 50 0 -1 0 -40 0 0 0 0 -40 48\1-4tang.dat
1 16 7 48 50 0 1 0 -40 0 0 0 0 -40 48\1-4tang.dat
1 16 10 48 50 0 -1 0 -40 0 0 0 0 -40 48\1-4ndis.dat
0 BFC INVERTNEXT
1 16 -10 48 50 0 3 0 -40 0 0 0 0 -40 48\1-4cylo.dat
0 BFC INVERTNEXT
1 16 7 48 50 0 3 0 -40 0 0 0 0 -40 48\1-4cylo.dat
0 // Outside
1 16 0 48 0 -10 0 0 0 -24 0 0 0 -10 box4-4a.dat
1 16 0 8 30 10 0 0 0 -8 0 0 0 20 box5-4a.dat
1 16 0 16 10 -10 0 0 0 0 8 0 1 0 rect3.dat
0 // inside
0 BFC INVERTNEXT
1 16 0 38 12 7 0 0 0 -10 0 0 0 -2 box2-7.dat
0 BFC INVERTNEXT
1 16 0 16 30 7 0 0 0 -12 0 0 0 -16 box2-5.dat
1 16 0 6 48 -7 0 0 0 2 0 0 0 -2 box2-7.dat
0 BFC INVERTNEXT
1 16 0 48 0 6 0 0 0 -20 0 0 0 -6 box5.dat
4 16 10 48 10 6 48 6 -6 48 6 -10 48 10
4 16 -10 48 10 -6 48 6 -6 48 -6 -10 48 -10
4 16 -10 48 -10 -6 48 -6 6 48 -6 10 48 -10
4 16 10 48 -10 6 48 -6 6 48 6 10 48 10
4 16 -7 8 46 -7 4 46 -7 4 14 -7 8 42.044
3 16 -7 8 42.044 -7 4 14 -7 11.044 34.692
3 16 -7 11.044 34.692 -7 4 14 -7 14.088 27.34
3 16 -7 14.088 27.34 -7 4 14 -7 19.716 21.716
3 16 -7 19.716 21.716 -7 4 14 -7 25.34 16.088
3 16 -7 25.34 16.088 -7 4 14 -7 28 14
3 16 -7 25.34 16.088 -7 28 14 -7 32.692 13.044
4 16 -7 28 14 -7 28 10 -7 40.044 10 -7 32.692 13.044
4 16 7 4 14 7 4 46 7 8 46 7 8 42.044
3 16 7 4 14 7 8 42.044 7 11.044 34.692
3 16 7 4 14 7 11.044 34.692 7 14.088 27.34
3 16 7 4 14 7 14.088 27.34 7 19.716 21.716
3 16 7 4 14 7 19.716 21.716 7 25.34 16.088
3 16 7 4 14 7 25.34 16.088 7 28 14
3 16 7 28 14 7 25.34 16.088 7 32.692 13.044
4 16 7 40.044 10 7 28 10 7 28 14 7 32.692 13.044
2 24 10 8 50 -10 8 50
2 24 10 48 10 -10 48 10
0 // Studs
1 16 0 24 0 0 0 -1 0 1 0 1 0 0 stud.dat
1 16 0 0 30 0 0 -1 0 1 0 1 0 0 stug-1x2.dat
| User | Vote |
|---|---|
| Philo | Certify |
| MagFors | Admin Review |
| WUIt | Certify |
(could be done easier with 1-12 and 1-6tang but that will have even more t-junk)
88292 shoudl be amended with "ogee"
help:
0 !HELP
to
0 !HELP
description:
Arch 1 x 3 x 2 Round
to
Arch 1 x 3 x 2
removed the "round" from the title (default arch form)
help:
0 !HELP
to
0 !HELP
description:
Arch 1 x 3 x 2
to
Arch 1 x 3 x 2 Pointed
help:
0 !HELP
to
0 !HELP
description:
Arch 1 x 3 x 2 Pointed
to
Arch 1 x 3 x 2
This part is copyright © Rene Rechthaler
Licensed under CC BY 4.0
Edits:
