Unofficial File parts/s/6443s02.dat
File Header:

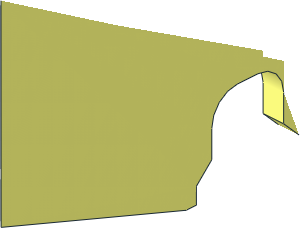

0 ~Duplo Train Base 8 x 2 with Two Axles - Top - Quarter
0 Name: s\6443s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // Axle Holder
1 16 36 37 -114 0 1 0 0 0 -5 -5 0 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 36 37 -114 0 4 0 0 0 -5 -5 0 0 1-4cylo.dat
1 16 40 37 -114 0 -1 0 0 0 -5 -5 0 0 1-4ndis.dat
1 16 36 37 -110 0 1 0 0 0 -5 5 0 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 36 37 -110 0 4 0 0 0 -5 5 0 0 1-4cylo.dat
1 16 40 37 -110 0 -1 0 0 0 -5 5 0 0 1-4ndis.dat
1 16 38 39.5 -119 2 0 0 0 0 2.5 0 -1 0 rect3.dat
1 16 38 39.5 -105 -2 0 0 0 0 2.5 0 1 0 rect3.dat
3 16 40 42 -119 40 45 -122 38 45 -122
4 16 38 45 -122 36 45 -122 36 42 -119 40 42 -119
3 16 40 45 -102 40 42 -105 38 45 -102
4 16 38 45 -102 40 42 -105 36 42 -105 36 45 -102
4 16 40 32 -114 36 32 -114 36 32 -110 40 32 -110
2 24 36 32 -114 36 32 -110
2 24 40 32 -114 40 32 -110
2 24 36 45 -122 36 42 -119
2 24 40 42 -119 40 45 -122
2 24 40 42 -105 40 45 -102
2 24 36 45 -102 36 42 -105
0 // Inside
3 16 36 32 -110 36 32 -114 36 4 -156
3 16 36 32 -105 36 32 -110 36 4 -156
3 16 36 42 -119 36 45 -122 36 45 -123.5132
3 16 36 30 -126 36 32 -119 36 37 -119
3 16 36 30 -126 36 37 -119 36 42 -119
3 16 36 45 -102 36 42 -105 36 37 -105
4 16 36 45 -123.5132 36 44.1711 -126 36 30 -126 36 42 -119
4 16 36 32 -114 36 32 -119 36 30 -126 36 4 -156
3 16 36 4 -156 36 30 -126 36 30 -156
4 16 36 30 -126 38 30 -126 38 30 -158 36 30 -156
4 16 36 30 -126 36 44.1711 -126 38 44.1711 -126 38 30 -126
4 16 38 45 -123.5132 36 45 -123.5132 36 45 -122 38 45 -122
4 16 38 44.1711 -126 36 44.1711 -126 36 45 -123.5132 38 45 -123.5132
2 24 38 45 -122 36 45 -122
2 24 36 30 -156 36 4 -156
2 24 36 45 -123.5132 36 45 -122
2 24 38 45 -123.5132 38 45 -122
2 24 36 45 -123.5132 38 45 -123.5132
2 24 36 44.1711 -126 38 44.1711 -126
2 24 36 44.1711 -126 36 45 -123.5132
2 24 38 45 -123.5132 38 44.1711 -126
2 24 38 44.1711 -126 38 30 -126
2 24 38 30 -126 36 30 -126
2 24 36 30 -126 36 44.1711 -126
2 24 36 30 -126 36 30 -156
2 24 38 30 -158 38 30 -126
4 16 38 48 -122 38 48 -124 38 45 -123.5132 38 45 -122
4 16 38 30 -158 38 30 -126 38 44.1711 -126 38 36.6667 -158
4 16 38 45 -123.5132 38 48 -124 38 36.6667 -158 38 44.1711 -126
2 24 38 48 -124 38 36.6667 -158
2 24 38 36.6667 -158 38 30 -158
0 // Bottom and outside
1 16 39 46.5 -123 1 0 0 0 0 1.5 0 1 0 box2-5.dat
4 16 40 36 -160 38 36.6667 -158 38 48 -124 40 48 -124
4 16 40 36 -160 40 48 -124 40 48 -122 40 45 -122
4 16 40 36 -160 40 45 -122 40 42 -119 40 0 -160
3 16 40 0 -160 40 32 -119 40 32 -114
3 16 40 32 -110 40 32 -105 40 0 -160
3 16 40 32 -114 40 32 -110 40 0 -160
3 16 40 42 -119 40 37 -119 40 0 -160
3 16 40 0 -160 40 37 -119 40 32 -119
3 16 40 37 -105 40 42 -105 40 45 -102
2 24 40 36 -160 40 0 -160
2 24 40 48 -124 40 36 -160
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
2025-10-27 21:59:37
added reenforcments and correct axle cut out
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
