Unofficial File parts/88292.dat
Part Attributes:
File Header:

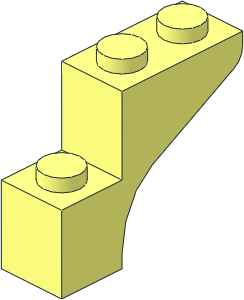

0 Arch 1 x 3 x 2 Ogee
0 Name: 88292.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2010-12-31 [PTadmin] Official Update 2010-03
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
0 !HISTORY 2025-10-28 [Blechtaler] slightly reworked, added "Ogee" to title
Show contents
0 // arch
1 16 10 44 26.1991 0 -1 0 0 0 -21.6474 -16.1991 0 0 3-16tndis.dat
0 BFC INVERTNEXT
1 16 6 44 26.1991 0 4 0 0 0 -21.6474 -16.1991 0 0 3-16cylo.dat
1 16 6 44 26.1991 0 1 0 0 0 -21.6474 -16.1991 0 0 3-16tang.dat
1 16 -10 44 26.1991 0 1 0 0 0 -21.6474 -16.1991 0 0 3-16tndis.dat
0 BFC INVERTNEXT
1 16 -6 44 26.1991 0 -4 0 0 0 -21.6474 -16.1991 0 0 3-16cylo.dat
1 16 -6 44 26.1991 0 -1 0 0 0 -21.6474 -16.1991 0 0 3-16tang.dat
1 16 10 4 45.14 0 -1 0 0 0 5.4119 4.86 0 0 3-16chrd.dat
1 16 6 4 45.14 0 4 0 0 0 5.4119 4.86 0 0 3-16cylo.dat
1 16 6 4 45.14 0 1 0 0 0 5.4119 4.86 0 0 3-16chrd.dat
1 16 -10 4 45.14 0 1 0 0 0 5.4119 4.86 0 0 3-16chrd.dat
1 16 -6 4 45.14 0 -4 0 0 0 5.4119 4.86 0 0 3-16cylo.dat
1 16 -6 4 45.14 0 -1 0 0 0 5.4119 4.86 0 0 3-16chrd.dat
1 16 8 16.5 33.5 0 0 2 -7.5 -1 0 13.5 0 0 rect2p.dat
1 16 -8 16.5 33.5 0 0 2 -7.5 -1 0 13.5 0 0 rect2p.dat
0 // outside
1 16 0 48 0 10 0 0 0 -24 0 0 0 -10 box4-4a.dat
1 16 0 12 30 10 0 0 0 -12 0 0 0 -20 box2-5.dat
4 16 10 0 10 10 24 10 10 24 20 10 9 47
4 16 10 0 10 10 9 47 10 4 50 10 0 50
4 16 -10 24 20 -10 24 10 -10 0 10 -10 9 47
4 16 -10 4 50 -10 9 47 -10 0 10 -10 0 50
3 16 6 4 50 10 0 50 10 4 50
4 16 -10 0 50 10 0 50 6 4 50 -6 4 50
3 16 -10 0 50 -6 4 50 -10 4 50
2 24 10 0 50 10 4 50
2 24 -10 0 50 -10 4 50
0 // inside
0 BFC INVERTNEXT
1 16 0 48 0 6 0 0 0 -20 0 0 0 -6 box5.dat
4 16 6 48 6 -6 48 6 -10 48 10 10 48 10
4 16 -6 48 -6 6 48 -6 10 48 -10 -10 48 -10
4 16 10 48 10 10 48 -10 6 48 -6 6 48 6
4 16 -10 48 -10 -10 48 10 -6 48 6 -6 48 -6
3 16 10 44 10 10 48 10 6 44 10
4 16 -10 48 10 -6 44 10 6 44 10 10 48 10
3 16 -6 44 10 -10 48 10 -10 44 10
1 16 0 38 10 0 0 6 6 0 0 0 -1 0 rect2p.dat
0 BFC INVERTNEXT
1 16 -6 32 16.828 0 12 0 0 0 -5.6569 -6.828 0 0 1-8cylo.dat
1 16 6 32 16.828 0 1 0 0 0 -5.6569 -6.828 0 0 1-8chrd.dat
1 16 -6 32 16.828 0 -1 0 0 0 -5.6569 -6.828 0 0 1-8chrd.dat
1 16 -6 24 7.172 0 12 0 0 0 5.6569 6.828 0 0 1-8cylo.dat
1 16 6 24 7.172 0 1 0 0 0 5.6569 6.828 0 0 1-8tndis.dat
1 16 -6 24 7.172 0 -1 0 0 0 5.6569 6.828 0 0 1-8tndis.dat
0 BFC INVERTNEXT
1 16 0 14 32 6 0 0 0 -10 0 0 0 -18 box2-7.dat
2 24 10 48 10 -10 48 10
2 24 10 48 10 10 44 10
2 24 -10 48 10 -10 44 10
2 24 6 4 50 -6 4 50
3 16 6 35.7155 11.2328 6 39.6943 10 6 32 10
4 16 6 28 12 6 31.7367 12.4655 6 35.7155 11.2328 6 32 10
4 16 6 28 12 6 28 14 6 28.6931 14.7447 6 31.7367 12.4655
4 16 6 28 14 6 24 14 6 25.6473 17.0223 6 28.6931 14.7447
4 16 6 24 14 6 4 14 6 24 20 6 25.6473 17.0223
4 16 6 4 50 6 9 47 6 24 20 6 4 14
3 16 -6 39.6943 10 -6 35.7155 11.2328 -6 32 10
4 16 -6 35.7155 11.2328 -6 31.7367 12.4655 -6 28 12 -6 32 10
4 16 -6 28.6931 14.7447 -6 28 14 -6 28 12 -6 31.7367 12.4655
4 16 -6 25.6473 17.0223 -6 24 14 -6 28 14 -6 28.6931 14.7447
4 16 -6 24 20 -6 4 14 -6 24 14 -6 25.6473 17.0223
4 16 -6 24 20 -6 9 47 -6 4 50 -6 4 14
0 // studs
1 16 0 0 30 0 0 1 0 1 0 -1 0 0 stug-1x2.dat
1 16 0 24 0 0 0 1 0 1 0 -1 0 0 stud.dat
Status:
Certified (ACCF)
Current Votes:
| User | Vote |
|---|---|
| Philo | Certify |
| MagFors | Admin Review |
| WUIt | Certify |
Official parents and subparts
Part Events:
Archived Part Events:
slight rework and added the arch type to the title
forgot 2 edgelines
2025-10-29 16:54:45
2025-10-29 17:18:43
should it still keep the keywords? its now included in the title...
2025-10-29 18:35:56
