Unofficial File parts/31300.dat
Part Attributes:
File Header:

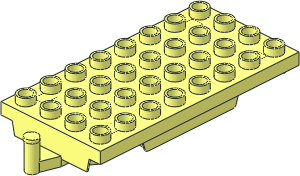

0 ~Duplo Train Base 8 x 4 - Top
0 Name: 31300.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\91793s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\91793s01.dat
1 16 0 36 -170.5 0 0 1.5 0 10 0 10.5 0 0 box3u4p.dat
4 16 13 46 -156 1.5 46 -160 -1.5 46 -160 -13 46 -156
0 BFC INVERTNEXT
1 16 0 25 -139.5 13 0 0 0 -21 0 0 0 -16.5 box2-5.dat
1 16 0 24.5 -123 13 0 0 0 0 20.5 0 1 0 rect3.dat
4 16 17 32 -160 80 0 -160 -80 0 -160 -17 32 -160
4 16 13 45 -123 -13 45 -123 -17 45 -120 17 45 -120
1 16 0 24.5 -120 -17 0 0 0 0 -20.5 0 -1 0 rect.dat
4 16 23.7097 4 122.8494 17 4 -120 -17 4 -120 -23.7097 4 122.8494
4 16 23.7097 4 122.8494 -23.7097 4 122.8494 -31 4 156 31 4 156
3 16 0 9.8398 160 -80 0 160 80 0 160
1 16 0 17.5 0 0 0 80 0 -17.5 0 160 0 0 box3u2p.dat
3 16 17 32 -160 -17 32 -160 0 32 -181
3 16 0 9.8398 156 31 4 156 -31 4 156
2 24 -31 4 156 31 4 156
2 24 -17 32 -160 17 32 -160
1 16 0 4 94.5 1 0 0 0 1 0 0 0 1 s\4580s04.dat
1 16 0 0 -190 1 0 0 0 1 0 0 0 1 duplo_hook.dat
1 16 0 0 80 0 0 1 0 2.75 0 -1 0 0 stug7-4x4.dat
1 16 0 0 -80 0 0 1 0 2.75 0 -1 0 0 stug7-4x4.dat
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
Current Votes:
None
Official parents and subparts
Part Events:
2025-10-29 13:58:12
2025-10-29 17:38:58
31300 is the top part in 76349, without reinforced hook
https://brickset.com/sets/containing-design-76349
91793 is the top part in 91794, with reinforced hook
https://brickset.com/parts/design-91794
https://brickset.com/sets/containing-design-76349
91793 is the top part in 91794, with reinforced hook
https://brickset.com/parts/design-91794
2025-10-29 17:43:45
Isn't it missing some kind of bumpstop, or angle stopper?
https://rebrickable.com/parts/31300c01/duplo-train-base-4-x-8-with-red-wheels-and-moveable-hook/
https://rebrickable.com/parts/31300c01/duplo-train-base-4-x-8-with-red-wheels-and-moveable-hook/
2025-10-29 17:48:37
is the reinforcement at the hook the only difference? when flipping between the Brickset images, the hook base also seems slightly different...
2025-10-29 22:54:45
@Magnus, thanks for the number, spared me cutting one more apart...
Yes, Bumpers are missing, I was going to reuse the ones from 2960, but apparently they are different in size and I forgot to change them.
@Rene, yes, it seems so. I have both versions, but I did only open the 91794 assembly, but from the outside they look the same. I need to check the bottom of the hook, those are slightly different and I once I am done with them, we need to review the hook prim and I probably need to tweak the affected parts a bit.
Yes, Bumpers are missing, I was going to reuse the ones from 2960, but apparently they are different in size and I forgot to change them.
@Rene, yes, it seems so. I have both versions, but I did only open the 91794 assembly, but from the outside they look the same. I need to check the bottom of the hook, those are slightly different and I once I am done with them, we need to review the hook prim and I probably need to tweak the affected parts a bit.
2025-10-29 22:56:46
"parts/91793.dat" to "parts/31300.dat"
2025-10-29 22:59:06
what I cannot tell is which movable hitch is used in the odler one. It is no RTZ hitch for sure, but it is anyway invisible... unless you render it transparent
2025-10-29 23:04:04
