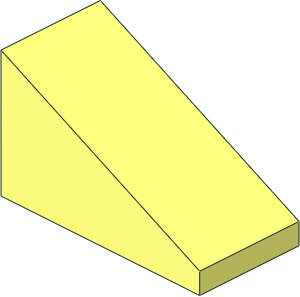

0 Modulex Slope Brick 27 2 x 1
0 Name: u7031.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS 27.5651 degree, Bricklink Mx1521, Peeron x717, Rebrickable 1521
0 !KEYWORDS slope 1:2
0 !HISTORY 2025-06-06 [MagFors] Original design by Tore Eriksson as slp0102c
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
0 !HISTORY 2025-11-02 [OrionP] Fix Invalid lines
