Unofficial File parts/3747b.dat
Part Attributes:
File Header:

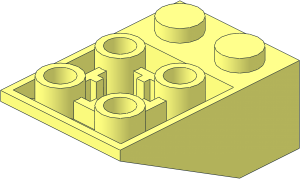

0 Slope Brick 33 3 x 2 Inverted with Ribs between Studs and Flat Bottom Pin
0 Name: 3747b.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Brickowl 941188, Brickset 3747
0 !HISTORY 2010-12-31 [PTadmin] Official Update 2010-03
0 !HISTORY 2012-02-15 [MMR1988] Stud Orientation fixed
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2025-12-14 [Philo] Subparted for variant
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2752s01.dat
1 16 -13.625 13.375 -6.75 0 0 -2.375 10.625 0 0 0 -1 0 rect3.dat
1 16 -10 13.375 -6.75 1.25 0 0 0 0 10.625 0 0.75 0 box4-2p.dat
1 16 0 13.375 -6.75 -8.75 0 0 0 0 -10.625 0 -1 0 rect2p.dat
1 16 10 13.375 -6.75 1.25 0 0 0 0 10.625 0 0.75 0 box4-2p.dat
1 16 13.625 13.375 -6.75 0 0 2.375 -10.625 0 0 0 -1 0 rect3.dat
1 16 -2.25 24 0 0 0 -1.5 0 -21.25 0 1.5 0 0 2-4cylc.dat
1 16 0 2.75 0 2.25 0 0 0 21.25 0 0 0 1.5 box3u8p.dat
1 16 2.25 24 0 0 0 1.5 0 -21.25 0 1.5 0 0 2-4cylc.dat
1 16 0 2.75 3.75 0 0 0.75 0 7.5 0 2.25 0 0 box3u2p.dat
1 16 0 2.75 -4.125 0 0 0.75 0 7.5 0 2.625 0 0 box3u2p.dat
4 16 -20 24 10 -16 24 6 -16 24 -6.75 -20 24 -10
4 16 -20 24 -10 -16 24 -6.75 16 24 -6.75 20 24 -10
4 16 20 24 -10 16 24 -6.75 16 24 6 20 24 10
0 BFC INVERTNEXT
1 16 0 13.375 -6.75 16 0 0 0 0 -10.625 0 12.75 0 box4-2p.dat
Status:
Needs 2 More Votes (F)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
