Unofficial File parts/4192.dat
Part Attributes:
File Header:

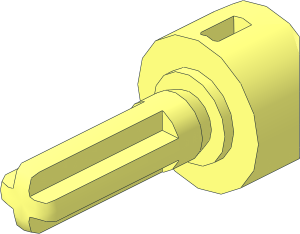

0 Technic Steering Constant Velocity 8mm Joint Female with 2L Axle
0 Name: 4192.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Brickowl 722590, CV
0 !HISTORY 2024-08-26 [OrionP] Official Update 2024-07
0 !HISTORY 2025-12-14 [MagFors] Shaped axleend
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\52730s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\52730s01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\52730s01.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\52730s01.dat
0 BFC INVERTNEXT
1 16 0 0 -10.6 3 0 0 0 0 3 0 1 0 4-4cylc.dat
1 16 0 0 -10 13.5 0 0 0 0 13.5 0 1 0 4-4edge.dat
1 16 0 0 -10 6.75 0 0 0 0 6.75 0 1 0 4-4ring1.dat
1 16 0 0 -12 8 0 0 0 0 8 0 2 0 4-4cylc.dat
1 16 0 0 -12 5 0 0 0 0 5 0 -1 0 4-4edge.dat
1 16 0 0 -15 1 0 0 0 0 1 0 3 0 4-4con5.dat
1 16 0 0 -15 6 0 0 0 0 6 0 -1 0 4-4edge.dat
1 16 0 0 -15 1 0 0 0 0 1 0 -5 0 axleho12.dat
1 16 0 0 -20 1 0 0 0 0 -1 0 1 0 axlehol3.dat
1 16 0 0 -20 1 0 0 0 0 -1 0 1 0 axlehol9.dat
1 16 0 0 -20 1 0 0 0 0 -1 0 1 0 axleho10.dat
1 16 0 0 -20 1 0 0 0 0 -1 0 -27.5 0 axlehol8.dat
1 16 0 0 -50 1 0 0 0 0 -1 0 1 0 axleend2.dat
Status:
Needs 1 More Vote (CF)
Current Votes:
| User | Vote |
|---|---|
| Blechtaler | Certify |
Official parents and subparts
Part Events:
Archived Part Events:
2025-12-14 20:58:46
Creative Commons Attribution License information
This part is copyright © Magnus Forsberg
Licensed under CC BY 4.0
