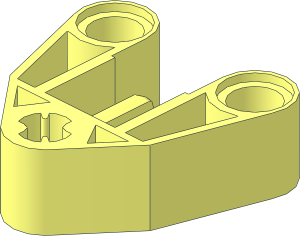

Technic Connector Block 3 x 3 Triangular with Axlehole

File Header:

0 Technic Connector Block  3 x  3 Triangular with Axlehole
0 Name: 58177.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Constraction Accessory

0 !KEYWORDS bionicle, Brickowl 299518

0 !HISTORY 2007-10-28 [mikeheide] fixed two edgelines; removed 4-4cyli.dat, corrected BFC error
0 !HISTORY 2010-07-05 [PTadmin] Official Update 2010-02
0 !HISTORY 2025-12-14 [MagFors] Shaped axleend, removed overlapping
