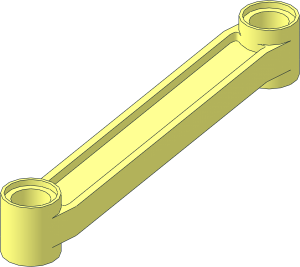

0 Technic Link 1 x 6 x 2 Angled
0 Name: 7684.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Technic
0 !KEYWORDS bent, Brickowl 663639, double, offsetShow file code:
0 // Pinhole link ends
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\64451s01.dat
1 16 0 -20 100 1 0 0 0 1 0 0 0 -1 s\64451s01.dat
0 // center beam
1 16 6.3603 -10 50 0 2.6397 0 -10 0 -5 40 0 0 box3u8p.dat
1 16 -6.3603 -10 50 0 -2.6397 0 -10 0 -5 40 0 0 box3u8p.dat
0 BFC INVERTNEXT
1 16 0 -5 50 0 0 -6.3603 -10 -3 0 40 0 0 box3u10p.dat
0 BFC INVERTNEXT
1 16 0 -15 50 0 0 -6.3603 -10 3 0 40 0 0 box3u10p.dat
5 24 -6.3603 -22 90 6.3603 -22 90 0 -22 91 0 -2 10
5 24 6.3603 -2 10 -6.3603 -2 10 0 -2 9 0 -22 90
5 24 -6.3603 2 10 6.3603 2 10 0 2 9 0 -18 90
5 24 -6.3603 -18 90 6.3603 -18 90 0 -18 91 0 2 10
5 24 9 5 10 6.3603 5 10 9 5 0 9 -15 90
5 24 -9 5 10 -6.3603 5 10 -9 5 0 -9 -15 90
5 24 9 -5 10 6.3603 -5 10 9 -5 0 9 -25 90
5 24 -9 -5 10 -6.3603 -5 10 -9 -5 0 -9 -25 90
5 24 9 -15 90 6.3603 -15 90 9 -15 100 9 5 10
5 24 -9 -15 90 -6.3603 -15 90 -9 -15 100 -9 5 10
5 24 9 -25 90 6.3603 -25 90 9 -25 100 9 -5 10
5 24 -9 -25 90 -6.3603 -25 90 -9 -25 100 -9 -5 10Status
Needs 2 More Votes (N)
Current Votes:
No recorded votesThis part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Part Dependencies
Official parents and subparts
Part Events
Rene Rechthaler [Blechtaler]
initially submitted the part.
2025-12-18 21:32:17
Magnus Forsberg [MagFors]
made the following comment.
2025-12-18 22:41:44
Liftarms must have 1 axle hole, to be able to work as an liftarm.
I see a Beam or Wishbone, but there's only 1 hole, and in a different direction.
I see a Beam or Wishbone, but there's only 1 hole, and in a different direction.
Rene Rechthaler [Blechtaler]
made the following comment.
2025-12-18 23:14:42
would "Technic Link" be better? seems related to 11455.dat and 64451.dat
(should I subpart the pinhole end and reuse it in all 3 files? can I rework s\64451s01.dat for that?)
(should I subpart the pinhole end and reuse it in all 3 files? can I rework s\64451s01.dat for that?)
Philippe Hurbain [Philo]
made the following comment.
2025-12-19 07:34:47
I see it rather as a Wishbone Suspension Arm like 5429, but I can also see a relationship with 2637 16L link. Whichever name is chosen, the other possibilities should be set as keywords.
I'd definitely prefer the origin to be centered on one of the pinhole, that would make its use easier.
I'd definitely prefer the origin to be centered on one of the pinhole, that would make its use easier.
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2025-12-19 11:51:43
origin is now centered in the front pinhole, also improved the beam profile
Rene Rechthaler [Blechtaler]
edited the part header.
2025-12-19 14:33:34
Header Edits
description:
Technic Link 1 x 5 x 2 Angled, Bent, Double
to
Technic Link 1 x 6 x 2 Angled, Bent, Double
got the size in the name wrong (part is correct)
Magnus Forsberg [MagFors]
edited the part header.
2025-12-21 15:39:23
Header Edits
keywords:
to
Bent, Double, Offset
description:
Technic Link 1 x 6 x 2 Angled, Bent, Double
to
Technic Link 1 x 6 x 2 Angled
Rene Rechthaler [Blechtaler]
edited the part header.
2025-12-21 16:18:30
Header Edits
description:
Technic Link 1 x 6 x 2 Angled
to
Technic Link 1 x 6 x 2 Angled
forgot the double spaces in front of the numbers
Questions: name ok? (not in BL/RB yet)
origin/orientation? (connholes upright like normal liftarm, origin centered)
