Unofficial File parts/u9374.dat
Part Attributes:
File Header:

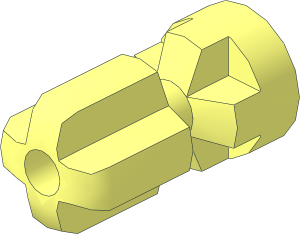

0 ~Electric Technic Motor Plastic Axle
0 Name: u9374.dat
0 Author: Chris Dee [cwdee]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS 12V, 4.5V, rotor
0 !HISTORY 2000-09-30 [PTadmin] Official Update 2000-02
0 !HISTORY 2007-09-10 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2013-04-09 [MagFors] bfc'd
0 !HISTORY 2013-04-09 [MagFors] Changed colour 383 to 494 (real metal)
0 !HISTORY 2013-05-04 [Steffen] factored-out metal portion to separate file, drilled hole
0 !HISTORY 2018-03-31 [cwdee] Renamed from s/6216mc to adjust origin
0 !HISTORY 2018-04-01 [rockford] Added end-cap + rubber-band grooves, removed many quads
0 !HISTORY 2018-12-09 [MMR1988] Fixed scaled 2D primitive
0 !HISTORY 2019-06-28 [PTadmin] Official Update 2019-01
0 !HISTORY 2025-12-20 [MagFors] Reshaped axleend
Show contents
1 16 0 0 11 1 0 0 0 0 1 0 1.5 0 axlecaph2.dat
1 16 0 0 16 1 0 0 0 0 1 0 -1.5 0 axlecaph2.dat
1 16 0 0 16 1 0 0 0 0 1 0 3 0 axlehol8.dat
1 16 0 0 19 1 0 0 0 0 1 0 4 0 axleho12.dat
1 16 0 0 19 1 0 0 0 0 1 0 1 0 axlehol3.dat
1 16 0 0 19 1 0 0 0 0 1 0 1 0 axleho10.dat
1 16 0 0 19 1 0 0 0 0 1 0 1 0 axlehol9.dat
1 16 0 0 12.5 2.5 0 0 0 0 2.5 0 2 0 4-4cylo.dat
1 16 0 0 2 1 0 0 0 0 1 0 9 0 axlehol8.dat
0 BFC INVERTNEXT
1 16 0 0 0 -2 0 0 0 0 2 0 23 0 4-4cyli.dat
1 16 0 0 23 -2 0 0 0 0 2 0 1 0 4-4edge.dat
1 16 0 0 23 -6 0 0 0 0 6 0 1 0 4-4edge.dat
1 16 0 0 0 1 0 0 0 0 -1 0 1 0 axleend2hole.dat
1 16 0 0 23 2 0 0 0 0 -2 0 -1 0 4-4ndis.dat
1 16 0 0 23 6 0 0 0 0 -6 0 -1 0 1-8chrd.dat
1 16 0 0 23 0 0 6 -6 0 0 0 -1 0 1-8chrd.dat
4 16 4.2426 -4.2426 23 6 0 23 2 0 23 2 -2 23
4 16 4.2426 -4.2426 23 2 -2 23 0 -2 23 0 -6 23
1 16 0 0 23 0 0 6 6 0 0 0 -1 0 1-8chrd.dat
1 16 0 0 23 6 0 0 0 0 6 0 -1 0 1-8chrd.dat
4 16 4.2426 4.2426 23 0 6 23 0 2 23 2 2 23
4 16 4.2426 4.2426 23 2 2 23 2 0 23 6 0 23
1 16 0 0 23 -6 0 0 0 0 6 0 -1 0 1-8chrd.dat
1 16 0 0 23 0 0 -6 6 0 0 0 -1 0 1-8chrd.dat
4 16 -4.2426 4.2426 23 -6 0 23 -2 0 23 -2 2 23
4 16 -4.2426 4.2426 23 -2 2 23 0 2 23 0 6 23
1 16 0 0 23 0 0 -6 -6 0 0 0 -1 0 1-8chrd.dat
1 16 0 0 23 -6 0 0 0 0 -6 0 -1 0 1-8chrd.dat
4 16 -4.2426 -4.2426 23 0 -6 23 0 -2 23 -2 -2 23
4 16 -4.2426 -4.2426 23 -2 -2 23 -2 0 23 -6 0 23
Status:
Needs 1 More Vote (CF)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
| User | Vote |
|---|---|
| Blechtaler | Certify |
Official parents and subparts
Part Events:
Archived Part Events:
2025-12-21 21:31:51
Maybe I should close the mesh?
Closed mesh.
