Unofficial File parts/s/86879s01.dat
File Header:

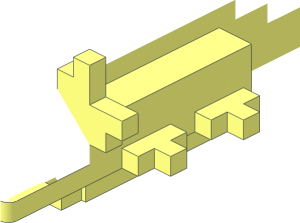

0 ~Animal Axolotl Body - Half
0 Name: s\86879s01.dat
0 Author: Evert-Jan Boer [ejboer]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 12 -6 -10 0 0 2 -2 0 0 0 -2 0 box2-5.dat
1 16 12 -6 -2 0 0 2 2 0 0 0 2 0 box2-5.dat
1 16 12 -6 8 0 0 2 -2 0 0 0 -2 0 box2-5.dat
1 16 12 -6 16 0 0 2 2 0 0 0 2 0 box2-5.dat
1 16 14 -6 -6 0 4 0 2 0 0 0 0 -2 box5-4a.dat
1 16 14 -6 12 0 4 0 2 0 0 0 0 -2 box5-4a.dat
1 16 6 -16 2 0 0 -4 0 1 0 18 0 0 rect2p.dat
1 16 8 -8 -38 2 0 0 0 4 0 0 0 -2 1-4cylo.dat
1 16 10 -6 -29 0 -1 0 0 0 2 -9 0 0 rect2p.dat
1 16 6 -2 -25 2 0 0 0 0 -2 0 1 0 rect3.dat
1 16 8 -2 -22.5 0 -1 0 0 0 -2 2.5 0 0 rect2a.dat
1 16 8.5 -2 -20 0 0 .5 2 0 0 0 1 0 rect3.dat
1 16 10 -6 -16 0 -1 0 2 0 0 0 0 4 rect1.dat
1 16 6 -10 20 0 0 4 -6 0 0 0 -1 0 rect.dat
1 16 8 -4 -38 0 0 2 0 -1 0 -2 0 0 1-4chrd.dat
1 16 6 0 -22.5 2 0 0 0 -1 0 0 0 -2.5 rect3.dat
1 16 9.5 -4 -16 -.5 0 0 0 -1 0 0 0 4 rect1.dat
1 16 8 -8 -38 0 0 2 0 1 0 -2 0 0 1-4chrd.dat
1 16 8 -26 -18 0 -2 0 0 0 -2 2 0 0 box2-5.dat
1 16 4 -22 -18 0 -2 0 0 0 -2 2 0 0 box2-7.dat
1 16 12 -14 -18 0 2 0 0 0 2 2 0 0 box2-5.dat
1 16 16 -18 -18 0 2 0 0 0 2 2 0 0 box2-7.dat
0 BFC INVERTNEXT
1 16 14 -24 -18 0 0 -4 0 4 0 2 0 0 box2-7.dat
2 24 10 -8 0 10 -8 -12
2 24 10 -8 6 10 -8 18
2 24 2 -16 -16 2 -20 -16
2 24 10 -16 -16 2 -16 -16
2 24 9 -4 -12 9 -4 0
2 24 10 -12 -16 10 -16 -16
2 24 9 0 -20 9 0 19
2 24 10 -4 20 10 -4 18
2 24 9 -4 19 9 -4 6
2 24 6 -24 -20 6 -24 -16
2 24 9 -4 0 9 -4 6
2 24 10 -4 0 10 -4 6
3 16 18 -20 -16 18 -16 -16 14 -16 -16
3 16 14 -8 14 14 -8 18 10 -8 18
3 16 10 -8 6 14 -8 6 14 -8 10
3 16 14 -8 -4 14 -8 0 10 -8 0
3 16 14 -4 18 14 -4 14 10 -4 18
3 16 14 -4 6 10 -4 6 14 -4 10
3 16 14 -4 0 14 -4 -4 10 -4 0
3 16 14 -4 -12 10 -4 -12 14 -4 -8
3 16 10 -16 20 10 -8 6 10 -8 18
3 16 9 -4 -12 9 0 -20 9 -4 0
3 16 10 -8 -12 14 -8 -12 14 -8 -8
3 16 9 -4 -20 9 0 -20 9 -4 -12
3 16 9 -4 19 9 -4 6 9 0 19
3 16 10 -4 20 9 -4 19 2 -4 20
3 16 10 -4 18 9 -4 19 10 -4 20
3 16 9 0 -20 8 0 -20 6 0 -16
3 16 6 0 -16 8 0 -20 4 0 -20
3 16 3.5 -4 -33.5 8 -4 -25 10 -4 -38
3 16 8 -4 -25 8 -4 -20 9 -4 -20
3 16 10 -20 -20 2 -20 -20 10 -12 -20
4 16 14 -12 -16 10 -12 -16 10 -16 -16 14 -16 -16
4 16 10 -12 -20 14 -12 -20 14 -16 -20 10 -20 -20
4 16 2 -24 -20 2 -20 -20 10 -20 -20 6 -24 -20
4 16 2 -20 -16 2 -24 -16 6 -24 -16 10 -20 -16
4 16 10 -8 6 14 -8 10 14 -8 14 10 -8 18
4 16 10 -8 -12 14 -8 -8 14 -8 -4 10 -8 0
4 16 14 -4 14 14 -4 10 10 -4 6 10 -4 18
4 16 14 -4 -4 14 -4 -8 10 -4 -12 10 -4 0
4 16 10 -8 0 10 -16 -16 10 -12 -16 10 -8 -12
4 16 10 -16 20 10 -16 -16 10 -8 0 10 -8 6
4 16 10 -4 18 10 -4 20 10 -16 20 10 -8 18
4 16 9 -4 0 9 0 -20 9 0 19 9 -4 6
4 16 10 -8 -12 10 -12 -16 10 -12 -20 10 -8 -20
4 16 9 -4 19 10 -4 18 10 -4 6 9 -4 6
4 16 2 -20 -16 2 -16 -16 2 -16 20 2 -20 24
4 16 2 -4 40 2 -12 40 2 -12 32 2 -4 20
4 16 2 -12 32 2 -16 32 2 -16 24 2 -4 20
4 16 2 -16 24 2 -20 24 2 -16 20 2 -4 20
4 16 9 0 19 9 0 -20 6 0 -16 6 0 16
4 16 10 -4 -38 8 -4 -25 9 -4 -20 10 -4 -20
4 16 3.5 -4 -33.5 3.5 -4 -26.5 4 -4 -25 8 -4 -25
4 16 4 0 -25 4 -4 -25 4 -4 -22.5 4 0 -20
4 16 10 -16 -16 10 -20 -16 18 -20 -16 14 -16 -16
4 16 18 -16 -20 18 -20 -20 10 -20 -20 14 -16 -20
4 16 2 -20 -16 10 -20 -16 10 -16 -16 2 -16 -16
4 16 10 -4 -12 9 -4 -12 9 -4 0 10 -4 0
4 16 10 -4 0 9 -4 0 9 -4 6 10 -4 6
4 16 10 -8 6 10 -8 0 10 -4 0 10 -4 6
4 16 10 -20 -16 6 -24 -16 6 -28 -16 10 -28 -16
4 16 10 -20 -20 10 -28 -20 6 -28 -20 6 -24 -20
2 24 18 -20 -20 18 -20 -16
2 24 2 -20 -20 2 -20 -16
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
subfiled half
2025-12-27 12:57:03
could still use a lot of box prims
used several box prims
added missing line
Duplicated surfaces.
removed overlapping surfaces
2025-12-27 18:04:26
Hm, no. Still there.
4 13 6 -12 -16 6 -12 16 6 0 16 6 0 -16
4 13 4 0 -25 4 0 -20 8 0 -20 8 0 -25
4 13 10 -8 -12 10 -8 -20 10 -4 -20 10 -4 -12
I don't think this is good practice
4 12 14 -20 -20 10 -20 -20 10 -16 -20 14 -16 -20
4 12 10 -24 -20 6 -24 -20 6 -20 -20 10 -20 -20
4 12 10 -16 -20 6 -20 -20 2 -20 -20 10 -12 -20
3 10 10 -20 -20 6 -20 -20 10 -16 -20
4 13 6 -12 -16 6 -12 16 6 0 16 6 0 -16
4 13 4 0 -25 4 0 -20 8 0 -20 8 0 -25
4 13 10 -8 -12 10 -8 -20 10 -4 -20 10 -4 -12
I don't think this is good practice
4 12 14 -20 -20 10 -20 -20 10 -16 -20 14 -16 -20
4 12 10 -24 -20 6 -24 -20 6 -20 -20 10 -20 -20
4 12 10 -16 -20 6 -20 -20 2 -20 -20 10 -12 -20
3 10 10 -20 -20 6 -20 -20 10 -16 -20
2025-12-27 18:11:29
Box primitives might be useful, but not when they introduce unwanted vertices.
Hope the overlaps are gone now, maybe forgot to save. Changed the box prims to get rid of the extra vertices, also changed some prims in the main file to boxes
2025-12-27 19:19:11
bfc errors
corrected bfc errors
Added box5 in main file, used stud3 for underside
The hole below the front stud is decorative I think, it doesn't fit a normal bar,
The hole below the front stud is decorative I think, it doesn't fit a normal bar,
