Unofficial File parts/7610.dat
Part Attributes:
File Header:

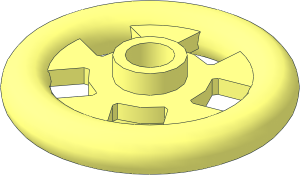

0 Plate 1 x 1 Round with Ring 3 x 3
0 Name: 7610.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Brickowl 83621
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\7610s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\7610s01.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stud2a.dat
0 BFC INVERTNEXT
1 16 0 0 0 4 0 0 0 3 0 0 0 4 4-4cyli.dat
1 16 0 3 0 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 0 3 0 2 0 0 0 -1 0 0 0 2 4-4ring2.dat
1 16 0 3 0 1 0 0 0 -1.25 0 0 0 1 stud4.dat
Status:
Certified (ACCN)
Current Votes:
| User | Vote |
|---|---|
| Philo | Certify |
| MagFors | Admin Review |
| RainbowDolphin | Certify |
Official parents and subparts
Part Events:
2025-12-28 22:18:15
2025-12-28 23:15:52
2025-12-29 08:18:21
A bit of photogrammetry indeed gives an opening width closer to 9 ldu than to 10 ldu. Also,
2025-12-29 08:23:39
Also, a little 45° bevel where the side of opening meets the hub would make the attachment look wider.
Finally, the center itself looks too thick, I think it's rather 3 ldu than 4 (with bottom stud tube 5 ldu high)
Finally, the center itself looks too thick, I think it's rather 3 ldu than 4 (with bottom stud tube 5 ldu high)
spoke thickness is now 3 (like the 1x1 round plate)
Great!
2026-01-02 01:55:02
2026-01-17 14:38:25
Creative Commons Attribution License information
This part is copyright © Rene Rechthaler
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
may be reduce the "gap" where the clips can attach thorugh the gaps from 10 to 9 LDU
