Unofficial File parts/7904.dat
Part Attributes:
File Header:

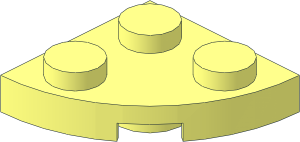

0 Plate 2 x 2 with Corner Round
0 Name: 7904.dat
0 Author: Vincent Messenet [Cheenzo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Brickowl 915484
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\7904s01.dat
1 16 0 0 0 0 0 -1 0 1 0 -1 0 0 s\7904s01.dat
1 16 0 4 0 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 10 0 10 0 0 1 0 1 0 -1 0 0 stud.dat
1 16 -10 0 10 0 0 1 0 1 0 -1 0 0 stud.dat
1 16 -10 0 -10 0 0 1 0 1 0 -1 0 0 stud.dat
0 BFC INVERTNEXT
1 16 0 6 0 0 -16 0 2 0 0 0 0 16 box2-5.dat
1 16 0 4 0 0 -20 0 4 0 0 0 0 20 box2-5.dat
4 16 -20 0 20 -20 0 -20 8.2843 0 -8.2843 20 0 20
4 16 -16 4 16 16 4 16 8.2843 4 -8.2843 -16 4 -16
4 16 20 8 20 16 8 16 -16 8 16 -20 8 20
4 16 -16 8 16 -16 8 -16 -20 8 -20 -20 8 20
Status:
Errors Found (HN)
Current Votes:
| User | Vote |
|---|---|
| MagFors | Hold |
Official parents and subparts
Part Events:
Not sure about the underside...
2025-12-29 10:42:11
yes, the underside 1-4 aring should be avoided as its bleeding through the front...
suggestion: use 1-12cylo for the sides with chrd on top/bottom and same for the 1-24 (cyli-Cylo and chrd), then fill the rest with quads
for the bottom 1-8 cutouts for the studs: also use cylo+chrd+tndis?
suggestion: use 1-12cylo for the sides with chrd on top/bottom and same for the 1-24 (cyli-Cylo and chrd), then fill the rest with quads
for the bottom 1-8 cutouts for the studs: also use cylo+chrd+tndis?
Thanks for the tips, and now subfiled
2025-12-29 14:22:03
2025-12-29 15:25:49
I guess I should add extra conds for the 1-48cylo
Moved one quad from subfile to main to reuse the subfile in other parts
Final touch (hopefully^^)
2026-01-02 14:31:31
2026-01-02 14:37:44
Maybe the orientation should match the one of 30357? not sure though as orientation of "things" rounded is not very consistent over the library...
2026-01-02 14:41:41
but the orientation matches 18980... (at least one end of it)
2026-01-03 00:56:37
Orientation fits 30565, looks fine to me
https://library.ldraw.org/parts/4682
https://library.ldraw.org/parts/4682
As per Philo's suggestion the precision of the rotation matrix has been increased from 3 to 5 digits and the quads in the main part adapted to avoid micro gaps
@Magnus and @Rene, 7797 and 18980 must be adapted as well
@Magnus and @Rene, 7797 and 18980 must be adapted as well
It doesn't hurt, but this condline
5 24 8.2843 0 -8.2843 8.2843 4 -8.2843 4.349696 0 -11.73182 11.73182 0 -4.349696
is not needed as the cylo condlines in 7904s01 do the job.
5 24 8.2843 0 -8.2843 8.2843 4 -8.2843 4.349696 0 -11.73182 11.73182 0 -4.349696
is not needed as the cylo condlines in 7904s01 do the job.
2026-01-04 09:50:26
2026-01-04 15:00:30
Needs Rounding
2026-03-09 14:22:34
bump
2026-03-11 17:44:18
Needs a different description to be different from 79491, Plate 2 x 2 with Corner Round
IMO we should maybe change 79491. It has a cutout. This one is a quarter circle. 79491 isn't.
IMO we should maybe change 79491. It has a cutout. This one is a quarter circle. 79491 isn't.
2026-04-06 16:59:43
also add "quarter Circle" here?
