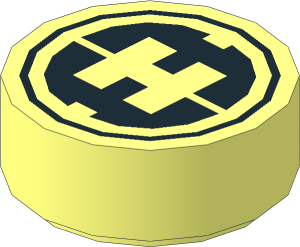

Tile 1 x 1 Round with "H" Pattern
File Header:
0 Tile 1 x 1 Round with "H" Pattern 0 Name: 98138pb0.dat 0 Author: Magnus Forsberg [MagFors] 0 !LDRAW_ORG Unofficial_Part 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !KEYWORDS BrickLink 98138pb018, Brickowl 295837, Brickset 16281, hero factory 0 !KEYWORDS Rebrickable 98138pr0019, Set 40116 0 !HISTORY 2014-12-23 [PTadmin] Official Update 2014-02 0 !HISTORY 2025-12-31 [MagFors] Complete rework, original by Merlijn Wissink
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\98138s02.dat 1 16 0 0 0 1.25 0 0 0 1 0 0 0 1.25 4-4ring7.dat 1 0 0 0 0 .5833 0 0 0 1 0 0 0 .5833 4-4ring14.dat 1 0 1 0 .35 5.88 0 0 0 1 0 0 0 6.42 1-8chrd.dat 1 0 1 0 .35 0 0 5.88 0 1 0 6.42 0 0 1-8chrd.dat 1 0 -1 0 .35 -5.88 0 0 0 1 0 0 0 6.42 1-8chrd.dat 1 0 -1 0 .35 0 0 -5.88 0 1 0 6.42 0 0 1-8chrd.dat 1 0 1 0 -.35 5.88 0 0 0 1 0 0 0 -6.42 1-8chrd.dat 1 0 1 0 -.35 0 0 5.88 0 1 0 -6.42 0 0 1-8chrd.dat 1 0 -1 0 -.35 -5.88 0 0 0 1 0 0 0 -6.42 1-8chrd.dat 1 0 -1 0 -.35 0 0 -5.88 0 1 0 -6.42 0 0 1-8chrd.dat 4 0 1 0 5.95 -1 0 5.95 -1 0 3.6 1 0 3.6 4 0 1 0 1.17 1 0 3.6 -1 0 3.6 -1 0 1.17 3 0 -1 0 5.95 -3.7 0 3.6 -1 0 3.6 4 0 -5.157748 0 -4.889582 -3.7 0 -3.6 -3.7 0 -.35 -6.88 0 -.35 3 0 -1 0 -3.6 -3.7 0 -3.6 -1 0 -5.95 4 0 1 0 -3.6 -1 0 -3.6 -1 0 -5.95 1 0 -5.95 4 0 5.157748 0 -4.889582 6.88 0 -.35 3.7 0 -.35 3.7 0 -3.6 4 0 -1 0 -3.6 1 0 -3.6 1 0 -1.17 -1 0 -1.17 3 0 1 0 -5.95 3.7 0 -3.6 1 0 -3.6 3 0 1 0 3.6 3.7 0 3.6 1 0 5.95 4 0 -1 0 -5.95 -3.7 0 -3.6 -5.157748 0 -4.889582 -1 0 -6.77 4 0 -3.7 0 .35 -3.7 0 3.6 -5.157748 0 4.889582 -6.88 0 .35 4 0 -1 0 5.95 -1 0 6.77 -5.157748 0 4.889582 -3.7 0 3.6 4 0 1 0 5.95 3.7 0 3.6 5.157748 0 4.889582 1 0 6.77 4 0 3.7 0 .35 6.88 0 .35 5.157748 0 4.889582 3.7 0 3.6 4 0 1 0 -5.95 1 0 -6.77 5.157748 0 -4.889582 3.7 0 -3.6 1 16 1 0 .35 5.88 0 0 0 1 0 0 0 6.42 1-4tang.dat 1 16 -1 0 .35 -5.88 0 0 0 1 0 0 0 6.42 1-4tang.dat 1 16 1 0 -.35 5.88 0 0 0 1 0 0 0 -6.42 1-4tang.dat 1 16 -1 0 -.35 -5.88 0 0 0 1 0 0 0 -6.42 1-4tang.dat 1 16 0 0 0 8.1662 0 0 0 1 0 0 0 8.1662 1-8chrd.dat 1 16 0 0 0 0 0 8.1662 0 1 0 8.1662 0 0 1-8chrd.dat 1 16 0 0 0 0 0 8.1662 0 1 0 -8.1662 0 0 1-8chrd.dat 1 16 0 0 0 8.1662 0 0 0 1 0 0 0 -8.1662 1-8chrd.dat 1 16 0 0 0 -8.1662 0 0 0 1 0 0 0 -8.1662 1-8chrd.dat 1 16 0 0 0 0 0 -8.1662 0 1 0 -8.1662 0 0 1-8chrd.dat 1 16 0 0 0 0 0 -8.1662 0 1 0 8.1662 0 0 1-8chrd.dat 1 16 0 0 0 -8.1662 0 0 0 1 0 0 0 8.1662 1-8chrd.dat 3 16 6.88 0 -.35 8.1662 0 0 6.88 0 .35 3 16 -1 0 -6.77 0 0 -8.1662 1 0 -6.77 3 16 -6.88 0 .35 -8.1662 0 0 -6.88 0 -.35 3 16 1 0 6.77 0 0 8.1662 -1 0 6.77 4 16 3.7 0 -.35 6.88 0 -.35 6.88 0 .35 3.7 0 .35 4 16 3.7 0 .35 3.7 0 3.6 1 0 3.6 1 0 1.17 4 16 -1 0 -5.95 -1 0 -6.77 1 0 -6.77 1 0 -5.95 4 16 -3.7 0 -.35 -3.7 0 -3.6 -1 0 -3.6 -1 0 -1.17 4 16 1 0 5.95 1 0 6.77 -1 0 6.77 -1 0 5.95 4 16 -3.7 0 -.35 -3.7 0 .35 -6.88 0 .35 -6.88 0 -.35 4 16 1 0 -3.6 3.7 0 -3.6 3.7 0 -.35 1 0 -1.17 4 16 -1 0 3.6 -3.7 0 3.6 -3.7 0 .35 -1 0 1.17 4 16 -1 0 1.17 -1 0 -1.17 1 0 -1.17 1 0 1.17 4 16 -1 0 -1.17 -1 0 1.17 -3.7 0 .35 -3.7 0 -.35 4 16 3.7 0 .35 1 0 1.17 1 0 -1.17 3.7 0 -.35 3 16 6.88 0 .35 8.1662 0 0 6.88 0 1.626938 3 16 6.88 0 1.626938 8.1662 0 0 6.432532 0 2.806934 4 16 5.985064 0 3.98693 6.432532 0 2.806934 8.1662 0 0 5.77432 0 5.77432 3 16 5.985064 0 3.98693 5.77432 0 5.77432 5.157748 0 4.889582 3 16 5.157748 0 4.889582 5.77432 0 5.77432 4.33102 0 5.792876 3 16 3.250276 0 6.281438 4.33102 0 5.792876 5.77432 0 5.77432 4 16 2.169532 0 6.77 3.250276 0 6.281438 5.77432 0 5.77432 0 0 8.1662 3 16 2.169532 0 6.77 0 0 8.1662 1 0 6.77 3 16 -8.1662 0 0 -6.88 0 .35 -6.88 0 1.626938 3 16 -8.1662 0 0 -6.88 0 1.626938 -6.432532 0 2.806934 4 16 -8.1662 0 0 -6.432532 0 2.806934 -5.985064 0 3.98693 -5.77432 0 5.77432 3 16 -5.77432 0 5.77432 -5.985064 0 3.98693 -5.157748 0 4.889582 3 16 -5.77432 0 5.77432 -5.157748 0 4.889582 -4.33102 0 5.792876 4 16 0 0 8.1662 -5.77432 0 5.77432 -3.250276 0 6.281438 -2.169532 0 6.77 3 16 -5.77432 0 5.77432 -4.33102 0 5.792876 -3.250276 0 6.281438 3 16 0 0 8.1662 -2.169532 0 6.77 -1 0 6.77 3 16 8.1662 0 0 6.88 0 -.35 6.88 0 -1.626938 3 16 8.1662 0 0 6.88 0 -1.626938 6.432532 0 -2.806934 4 16 8.1662 0 0 6.432532 0 -2.806934 5.985064 0 -3.98693 5.77432 0 -5.77432 3 16 5.77432 0 -5.77432 5.985064 0 -3.98693 5.157748 0 -4.889582 3 16 5.77432 0 -5.77432 5.157748 0 -4.889582 4.33102 0 -5.792876 4 16 3.250276 0 -6.281438 2.169532 0 -6.77 0 0 -8.1662 5.77432 0 -5.77432 3 16 5.77432 0 -5.77432 4.33102 0 -5.792876 3.250276 0 -6.281438 3 16 0 0 -8.1662 2.169532 0 -6.77 1 0 -6.77 3 16 -6.88 0 -.35 -8.1662 0 0 -6.88 0 -1.626938 3 16 -6.88 0 -1.626938 -8.1662 0 0 -6.432532 0 -2.806934 4 16 -5.985064 0 -3.98693 -6.432532 0 -2.806934 -8.1662 0 0 -5.77432 0 -5.77432 3 16 -5.985064 0 -3.98693 -5.77432 0 -5.77432 -5.157748 0 -4.889582 3 16 -5.157748 0 -4.889582 -5.77432 0 -5.77432 -4.33102 0 -5.792876 3 16 -3.250276 0 -6.281438 -4.33102 0 -5.792876 -5.77432 0 -5.77432 4 16 -2.169532 0 -6.77 -3.250276 0 -6.281438 -5.77432 0 -5.77432 0 0 -8.1662 3 16 -2.169532 0 -6.77 0 0 -8.1662 -1 0 -6.77
Status:
Not releaseable Needs 2 More Votes (F) Needs 2 More Votes (F)
Current Votes:

None

Official parents and subparts
Part Events:
Archived Part Events:
Magnus Forsberg [MagFors]
Part Library Admin
initially submitted the part.
2025-12-31 15:30:34
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-12-31 17:14:19
are the outsides of the black H borders 4 shifted circle segments ore should it be made from a single cut one? or rotated 3-16?
should it be subfiled to a quarter or would that be too much?
Creative Commons Attribution License information

This part is copyright © Magnus Forsberg
Licensed under CC BY 4.0
