Unofficial File parts/s/7825s03.dat
File Header:

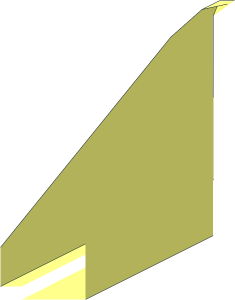

0 ~Slope Brick 31 1 x 1 x 0.667 - Side Half
0 Name: s\7825s03.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2026-01-01 [GeraldLasser] Derived from Philo's 54200
Show contents
0 // Bottom and Inside
4 16 4 0 6 4 0 -6 1 0 -9 1 0 9
2 24 4 0 -6 4 0 6
3 16 4 -4.6 -4 4 -4.6 -6 4 0 -6
4 16 4 0 -6 4 0 6 4 -10.6 6 4 -4.6 -4
4 16 0 -1 -10 0 -1 10 1 -1 9 1 -1 -9
2 24 0 -1 10 0 -1 -10
0 // Outside
4 16 0 -13.6 6 0 -13.6 10 0 -1 10 0 -4 -10
3 16 0 -1 -10 0 -4 -10 0 -1 10
4 16 .59 -15.01 8.35 2 -15.6 9.3333 2 -15.6 10 .59 -15.01 10
4 16 0 -13.6 6 .59 -15.01 8.35 .59 -15.01 10 0 -13.6 10
3 16 .59 -15.01 10 2 -15.6 10 0 -13.6 10
2 24 0 -1 10 0 -13.6 10
2 24 0 -13.6 6 0 -4 -10
2 24 .59 -15.01 8.35 0 -13.6 6
2 24 .59 -15.01 10 0 -13.6 10
2 24 2 -15.6 9.3333 .59 -15.01 8.35
2 24 .59 -15.01 10 2 -15.6 10
5 24 .59 -15.01 10 .59 -15.01 8.35 2 -15.6 9.3333 0 -13.6 10
5 24 0 -13.6 6 0 -13.6 10 .59 -15.01 8.35 0 -1 10
5 24 2 -15.6 9.3333 2 -15.6 10 .59 -15.01 10 10 -15.6 9.3333
Status:
Awaiting Admin Review (CCN)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
| User | Vote |
|---|---|
| Philo | Certify |
| RainbowDolphin | Certify |
Official parents and subparts
Part Events:
2026-01-01 13:10:10
2026-01-01 13:19:13
should this be reused in the esisting 1x1 and 1x2 slopes?
2026-01-01 13:27:21
should the top corner use lo-res cyls+cyli+edge prims?
2026-01-01 15:46:41
As the lo-res does not get substituted and this solutions save a handful of surfaces, I woul dnot change it.
I would not change the existing ones for now, I don't see the necessity
I would not change the existing ones for now, I don't see the necessity
2026-01-01 17:06:15
Header Edits
history:
0 !HISTORY 2026-01-01 [GeraldLasser] Derivde from Philo's 54200
to
0 !HISTORY 2026-01-01 [GeraldLasser] Derived from Philo's 54200
Fixed typo in history
2026-01-02 01:49:59
