Unofficial File parts/s/7835s02.dat
File Header:

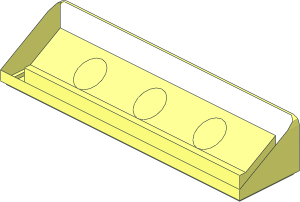

0 ~Slope Brick 31 1 x 4 x 0.667 without Patternable Surfaces
0 Name: s\7835s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 -40 0 0 1 0 0 0 1 0 0 0 1 s\7825s03.dat
1 16 40 0 0 -1 0 0 0 1 0 0 0 1 s\7825s03.dat
0 // Inside
0 BFC INVERTNEXT
1 16 0 -2.3 1 -36 0 0 0 -3 -5.3 0 5 0 box2-7.dat
0 BFC INVERTNEXT
1 16 0 -2.3 -5 -36 0 0 0 0 -2.3 0 -1 0 box2-5.dat
2 24 -36 0 6 36 0 6
1 16 20 -4.6 0 0 0 -4 0 -2.4 0 -4 0 0 4-4cylse.dat
1 16 20 -4.6 0 1 0 0 0 -1.15 0 0 0 1 stud3a.dat
1 16 0 -4.6 0 0 0 -4 0 -2.4 0 -4 0 0 4-4cylse.dat
1 16 0 -4.6 0 1 0 0 0 -1.15 0 0 0 1 stud3a.dat
1 16 -20 -4.6 0 0 0 -4 0 -2.4 0 -4 0 0 4-4cylse.dat
1 16 -20 -4.6 0 1 0 0 0 -1.15 0 0 0 1 stud3a.dat
0 // Outside
4 16 -39 0 9 39 0 9 36 0 6 -36 0 6
4 16 36 0 -6 39 0 -9 -39 0 -9 -36 0 -6
1 16 0 -1 0 0 0 39 0 1 0 -9 0 0 box4.dat
4 16 39 -1 9 -39 -1 9 -40 -1 10 40 -1 10
4 16 -40 -1 -10 -39 -1 -9 39 -1 -9 40 -1 -10
1 16 0 -2.5 -10 -40 0 0 0 0 1.5 0 1 0 rect.dat
4 16 -38 -15.6 10 -38 -15.6 9.3333 38 -15.6 9.3333 38 -15.6 10
2 24 38 -15.6 10 -38 -15.6 10
2 24 -38 -15.6 9.3333 38 -15.6 9.3333
2 24 40 -1 10 -40 -1 10
Status:
Awaiting Admin Review (CCN)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
-
Has uncertified subfiles
Current Votes:
| User | Vote |
|---|---|
| Philo | Certify |
| RainbowDolphin | Certify |
Official parents and subparts
Part Events:
2026-01-01 13:10:10
2026-01-01 13:28:49
Too bad. I was just about to submit these two parts (7825 and 7835) as well — unfortunately a bit too late. Based on the mesh: shouldn’t 7835 have stud2a.dat on the underside instead of stud3a.dat? Additional reference: https://www.youtube.com/watch?v=d1u5BpXOQ2A (02:35).
2026-01-01 15:12:12
For sure not a 2a
We usually don't model the hole in stud3
We usually don't model the hole in stud3
2026-01-01 17:06:15
2026-01-02 01:50:46
