File Detail parts/s/7652s01.dat

Unofficial File parts/s/7652s01.dat

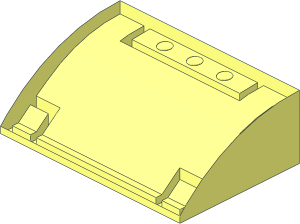

~Windscreen Curved 4 x 6 x 1.667 without Top Faces

File Header:

0 ~Windscreen Curved  4 x  6 x  1.667 without Top Faces
0 Name: s\7652s01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2026-01-01 [Blechtaler] made from 3573 by [MagFors]

Show contents

0 // outside
1 16 0 38 -40 60 0 0 0 0 2 0 1 0 rect.dat
1 16 60 107 40 0 -1 0 -107 0 0 0 0 -107 48\1-8chrd.dat
1 16 -60 107 40 0 1 0 -107 0 0 0 0 -107 48\1-8chrd.dat
1 16 60 107 40 0 -1 0 -107 0 0 0 0 -107 48\1-8edge.dat
1 16 -60 107 40 0 1 0 -107 0 0 0 0 -107 48\1-8edge.dat
2 24 -60 36 -40 -60 31.3403 -35.6597
2 24 60 36 -40 60 31.3403 -35.6597
2 24 60 40 -40 60 40 40
2 24 -60 40 40 -60 40 -40
3 16 -60 0 40 -60 40 40 -60 31.3403 -35.6597
4 16 -60 36 -40 -60 31.3403 -35.6597 -60 40 40 -60 40 -40
3 16 60 40 40 60 0 40 60 31.3403 -35.6597
4 16 60 40 40 60 31.3403 -35.6597 60 36 -40 60 40 -40

0 // rear wall with bottom cutout
1 16 42 38 36 -2 0 0 0 0 2 0 4 0 1-4cylo.dat
1 16 -42 38 36 2 0 0 0 0 2 0 4 0 1-4cylo.dat
1 16 42 38 36 -2 0 0 0 0 2 0 1 0 1-4chrd.dat
1 16 -42 38 36 2 0 0 0 0 2 0 1 0 1-4chrd.dat
1 16 42 38 40 -2 0 0 0 0 2 0 -1 0 1-4chrd.dat
1 16 -42 38 40 2 0 0 0 0 2 0 -1 0 1-4chrd.dat
1 16 40 27 38 0 1 0 0 0 -11 2 0 0 rect3.dat
1 16 -40 27 38 0 -1 0 0 0 -11 2 0 0 rect3.dat
2 24 -40 16 40 40 16 40
2 24 -60 0 40 60 0 40
2 24 60 0 40 60 40 40
2 24 -60 40 40 -42 40 40
2 24 60 40 40 42 40 40
2 24 -60 0 40 -60 40 40
4 16 -40 16 40 -40 38 40 -42 40 40 -60 40 40
3 16 -40 16 40 -60 40 40 -60 0 40
4 16 -60 0 40 60 0 40 40 16 40 -40 16 40
3 16 40 16 40 60 0 40 60 40 40
4 16 40 16 40 60 40 40 42 40 40 40 38 40
2 24 56 4 36 56 40 36
2 24 -56 4 36 -56 40 36
2 24 -42 40 36 -56 40 36
2 24 56 40 36 42 40 36
4 16 56 4 36 40 4 36 40 16 36 56 40 36
4 16 56 40 36 40 16 36 40 38 36 42 40 36
4 16 -40 16 36 -40 4 36 -56 4 36 -56 40 36
4 16 -42 40 36 -40 38 36 -40 16 36 -56 40 36

0 // cutout stud holder
1 16 0 10 36 0 0 36 6 0 0 0 1 0 rect.dat
1 16 0 10.5 24 36 0 0 0 0 5.5 0 -1 0 rect.dat
1 16 0 10.8965 20 40 0 0 0 0 5.1035 0 1 0 rect.dat
1 16 0 4.5 30 0 0 36 .5 -1 0 -6 0 0 rect2p.dat
4 16 -36 5 24 -36 16 24 -36 16 36 -36 4 36
4 16 36 16 24 36 5 24 36 4 36 36 16 36
1 16 20 4 30 1 0 0 0 -3 0 0 0 1 stud3a.dat
1 16 0 4 30 1 0 0 0 -3 0 0 0 1 stud3a.dat
1 16 -20 4 30 1 0 0 0 -3 0 0 0 1 stud3a.dat
1 16 20 4.5 30 4 0 0 0 1 -0.3333 0 0 4 4-4edge.dat
1 16 0 4.5 30 4 0 0 0 1 -0.3333 0 0 4 4-4edge.dat
1 16 -20 4.5 30 4 0 0 0 1 -0.3333 0 0 4 4-4edge.dat
2 24 40 16 20 40 16 36
2 24 -40 16 20 -40 16 36
2 24 -40 4 36 -40 16 36
2 24 40 4 36 40 16 36
2 24 36 16 24 36 16 36
2 24 -36 16 24 -36 16 36
3 16 40 16 36 36 16 36 40 16 40
3 16 -40 16 36 -40 16 40 -36 16 36
4 16 36 16 36 -36 16 36 -40 16 40 40 16 40
4 16 40 16 20 36 16 24 36 16 36 40 16 36
4 16 -40 16 20 -36 16 24 36 16 24 40 16 20
4 16 -36 16 24 -40 16 20 -40 16 36 -36 16 36
4 16 -40 16 36 -40 16 20 -40 5.793 20 -40 4.688 25.56
3 16 -40 16 36 -40 4.688 25.56 -40 4 36
4 16 40 16 36 40 4.688 25.56 40 5.793 20 40 16 20
3 16 40 4.688 25.56 40 16 36 40 4 36

0 // front stud holders
0 BFC INVERTNEXT
1 16 50 37.875 -34 6 0 0 0 0 -2.125 0 -2 0 box2-5.dat
1 16 50 32.4342 -28 0 0 6 3.3158 -1 0 -4 0 0 rect2p.dat
1 16 50 34.5592 -24 6 0 0 0 0 5.4408 0 1 0 rect.dat
1 16 48 33 -20 8 0 0 0 0 7 0 -1 0 rect.dat
2 24 56 40 -36 56 40 -24
2 24 44 40 -36 44 40 -24
2 24 40 40 -36 40 40 -20
4 16 56 35.75 -36 56 35.75 -32 56 40 -24 56 40 -36
3 16 56 40 -24 56 35.75 -32 56 29.1184 -24
4 16 44 35.75 -36 44 40 -36 44 40 -24 44 35.75 -32
3 16 44 35.75 -32 44 40 -24 44 29.1184 -24
4 16 44 40 -24 44 40 -36 40 40 -36 40 40 -20
4 16 56 40 -24 44 40 -24 40 40 -20 56 40 -20
4 16 40 40 -36 40 35.75 -36 40 35.75 -32 40 40 -20
4 16 40 40 -20 40 35.75 -32 40 27.875 -22.5 40 26 -20
0 BFC INVERTNEXT
1 16 -50 37.875 -34 6 0 0 0 0 -2.125 0 -2 0 box2-5.dat
1 16 -50 32.4342 -28 0 0 6 3.3158 -1 0 -4 0 0 rect2p.dat
1 16 -50 34.5592 -24 6 0 0 0 0 5.4408 0 1 0 rect.dat
1 16 -48 33 -20 -8 0 0 0 0 7 0 -1 0 rect.dat
2 24 -56 40 -24 -56 40 -36
2 24 -44 40 -24 -44 40 -36
2 24 -40 40 -20 -40 40 -36
4 16 -56 40 -24 -56 35.75 -32 -56 35.75 -36 -56 40 -36
3 16 -56 35.75 -32 -56 40 -24 -56 29.1184 -24
4 16 -44 40 -24 -44 40 -36 -44 35.75 -36 -44 35.75 -32
3 16 -44 40 -24 -44 35.75 -32 -44 29.1184 -24
4 16 -40 40 -36 -44 40 -36 -44 40 -24 -40 40 -20
4 16 -40 40 -20 -44 40 -24 -56 40 -24 -56 40 -20
4 16 -40 35.75 -32 -40 35.75 -36 -40 40 -36 -40 40 -20
4 16 -40 27.875 -22.5 -40 35.75 -32 -40 40 -20 -40 26 -20

0 // inside
0 BFC INVERTNEXT
1 16 0 37.875 -34 40 0 0 0 0 -2.125 0 -2 0 box2-5.dat
1 16 0 31.8125 -27.25 0 0 40 3.9375 -1 0 -4.75 0 0 rect2p.dat
1 16 0 26.9375 -21.25 0 0 40 -.9375 -1 0 1.25 0 0 rect2p.dat
2 24 56 26 -20 56 20.9 -13.2
2 24 -56 20.9 -13.2 -56 26 -20
3 16 -56 26 -20 -56 20.9 -13.2 -40 26 -20
3 16 40 26 -20 56 20.9 -13.2 56 26 -20
4 16 56 20.9 -13.2 40 26 -20 -40 26 -20 -56 20.9 -13.2
1 16 0 17.81 -8.6 0 0 56 3.09 -1 0 -4.6 0 0 rect2p.dat
1 16 0 12.404 .692 0 0 56 2.316 -1 0 -4.692 0 0 rect2p.dat
1 16 0 8.408 10.34 0 0 56 1.68 -1 0 -4.956 0 0 rect2p.dat
2 24 -56 6.728 15.296 -56 4.688 25.56
2 24 56 6.728 15.296 56 4.688 25.56
2 24 40 4.688 25.56 40 5.793 20
2 24 -40 4.688 25.56 -40 5.793 20
4 16 40 4.688 25.56 56 4.688 25.56 56 6.728 15.296 40 5.793 20
4 16 -40 5.793 20 40 5.793 20 56 6.728 15.296 -56 6.728 15.296
4 16 -40 5.793 20 -56 6.728 15.296 -56 4.688 25.56 -40 4.688 25.56
1 16 48 4.344 30.78 8 0 0 0 -1 -.344 0 0 5.22 rect3.dat
1 16 -48 4.344 30.78 8 0 0 0 -1 -.344 0 0 5.22 rect3.dat
4 16 56 4.688 25.56 56 4 36 56 40 36 56 6.728 15.296
4 16 56 10.088 5.384 56 6.728 15.296 56 40 36 56 14.72 -4
4 16 56 20.9 -13.2 56 14.72 -4 56 40 36 56 26 -20
3 16 56 40 36 56 40 -20 56 26 -20
4 16 -56 40 36 -56 4 36 -56 4.688 25.56 -56 6.728 15.296
4 16 -56 40 36 -56 6.728 15.296 -56 10.088 5.384 -56 14.72 -4
4 16 -56 40 36 -56 14.72 -4 -56 20.9 -13.2 -56 26 -20
3 16 -56 40 -20 -56 40 36 -56 26 -20
5 24 -56 20.9 -13.2 56 20.9 -13.2 56 14.72 -4 40 26 -20
5 24 40 4.688 25.56 56 4.688 25.56 56 6.728 15.296 56 4 36
5 24 -56 4.688 25.56 -40 4.688 25.56 -40 4 36 -40 5.793 20
5 24 56 6.728 15.296 -56 6.728 15.296 -40 5.793 20 -56 10.088 5.384
5 24 40 27.875 -22.5 -40 27.875 -22.5 -40 26 -20 -40 35.75 -32
5 24 56 14.72 -4 -56 14.72 -4 56 10.088 5.384 -56 20.9 -13.2
5 24 56 10.088 5.384 -56 10.088 5.384 56 6.728 15.296 -56 14.72 -4

0 // bottom
2 24 56 40 -20 56 40 36
2 24 -56 40 -20 -56 40 36
3 16 56 40 -24 56 40 -20 60 40 -40
3 16 56 40 -24 60 40 -40 56 40 -36
3 16 56 40 -36 60 40 -40 44 40 -36
3 16 44 40 -36 60 40 -40 40 40 -36
3 16 -44 40 -36 -40 40 -36 -60 40 -40
3 16 -44 40 -36 -60 40 -40 -56 40 -36
3 16 -56 40 -36 -60 40 -40 -56 40 -24
3 16 -56 40 -24 -60 40 -40 -56 40 -20
4 16 56 40 36 42 40 36 42 40 40 60 40 40
4 16 56 40 -20 56 40 36 60 40 40 60 40 -40
4 16 -40 40 -36 40 40 -36 60 40 -40 -60 40 -40
4 16 -56 40 -20 -60 40 -40 -60 40 40 -56 40 36
4 16 -42 40 36 -56 40 36 -60 40 40 -42 40 40

Status:

Needs 2 More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Rene Rechthaler [Blechtaler]

initially submitted the part.

2026-01-01 23:12:48
